QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder
Specifications
Brand Name :
Junvoch
Model Number :
JVH-QSK78
Certifiion :
ISO CE
Place of Origin :
CHN
MOQ :
1 Set
Price :
470000usd-480000usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 set per month
Delivery Time :
15 work days
Packaging Details :
standard packing
Brand&model :
Cummins QSK78-G8
Rated Current :
4525A
Frequency :
50HZ/60HZ
Rated Voltage :
400/230V
Speed :
1500/1800rpm
Configuration :
In-line,4-stroke,4-valve,water-cooled
Dimensions(mm) (L×W×H) :
5000*2000*2650mm
Genset Weight :
10000kg
Standby power :
3028KW
Cylinder :
18
Displacement :
77.6L
Bore×Stroke (mm×mm) :
170*190mm
Oil Capacity :
465L
Starting Method :
Electric
Warranty :
12 months
Description

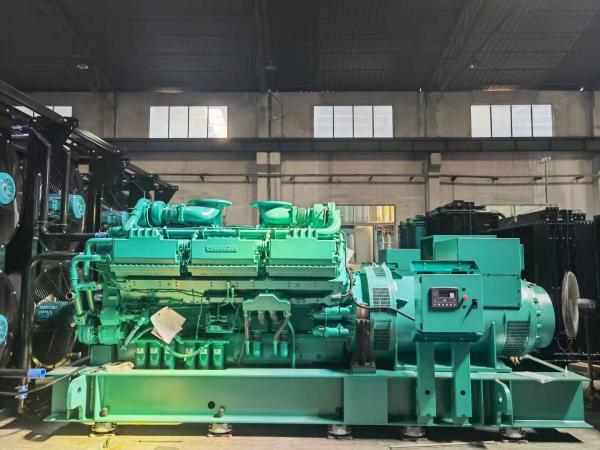

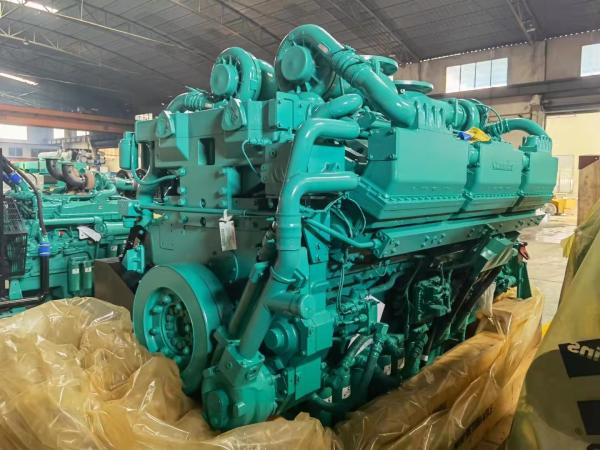

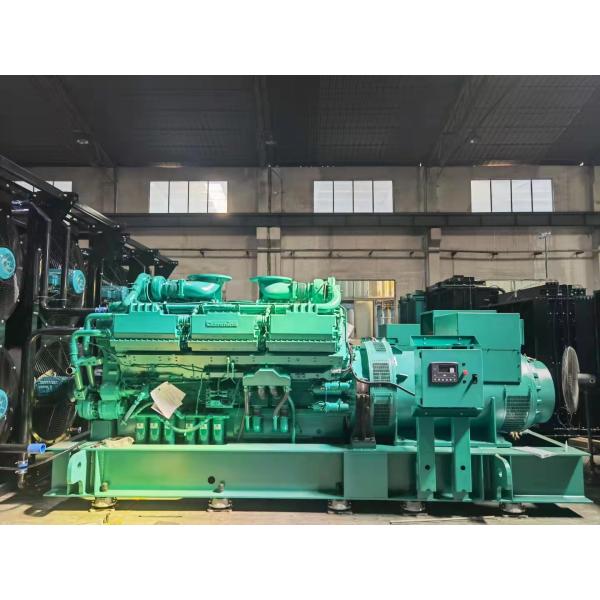

Genuine Cummins CCEC Diesel Generator Set 2500kw American Diesel Generator 2.5mw of QSK78-G8 with CCEC Engine

Product Description

QSK78-G8 Diesel Generator

Model
QSK78-G8
Configuration
In-line,4-stroke,4-valve,water-cooled
Aspiration
Turbocharged and air to air inter-cooled
Number of Cylinder,Bore×Stroke(mm)
18-170×190
Displacement (L)
77.6
Compression Ratio
14:1
Prime Power/Speed (kw/r/min)
2737/1500
Standby Power/Speed (kw/r/min)
3028/1500
Fuel consumption (g/kwh)
≤205
Oil Capacity (L)
465
Starting Method
Electric
Dimension(L×W×H) (mm)
3062×1570×2031
Net weight (kg)
9180

QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 CylinderQSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 CylinderQSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 CylinderQSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 CylinderQSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder

Generator Supply Scope

1. Engine: Brand-new engine.
2. Alternator: Brand new brushless alternator, single bearing, IP23, H insulation class.
3. Base Frame: Heavy duty steel channel base frame.
4. Radiator: With safety guard.
5. Vibration Damper Vibration damper between Engine/Alternator and base frame
6. Breaker: 3-pole output manual circuit breaker as standard, 4 poles for option
7. Controller: DSE6120, DSE7320, DSE8610 and other deepsea models, Comap MRS10, MRS16, AMF20, AMF25 for option.
8. Silencer: Heavy duty industrial type silencer with flexible bellow,elbow.
9. Battery: Varta Brand,high capacity sealed maintenance free battery c/w battery cables.
10. Fuel Tank: 8 hours base fuel tank
11. Tool Kits & Manuals: Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc.

Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4standards

Prime output power: 8kw-1600 kw (10kva-1600kva)

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.

Phase/connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG

Insulation: Class H

Protection: IP21~IP23

Voltage regulation: AVR automatic control

Altitude above sea level: ≤1000 meters

Ambient air temperature: ≤40°C

Relative air humidity: ≤ 90%

Appliion scenarios

QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder

Company Information

Jvh Industry and Trading Co.,Ltd specializes in distributing engine assembly and engine generator set to more than 20 countries under 10 year's development.

JVH focus on providing genuine parts and top aftermarket spare parts ,as well as providing professional after sales service , so it receives good reputation among clients all over the world. It will keep such spirit and improve its service to be the excellent distributor in diesel engine parts.
Now it has strong and stable supplying system by investing big factories of cylinder blocks, cylinder heads, crankshafts, camshafts, pistons, cylinder liners etc.

QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder

QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder

QSK78 G8 2.5mw 3 Phase Diesel Power Generators 400V 2500kw 18 Cylinder

Our Services

Our professional engineers are available to provide on-site installation overseas.
