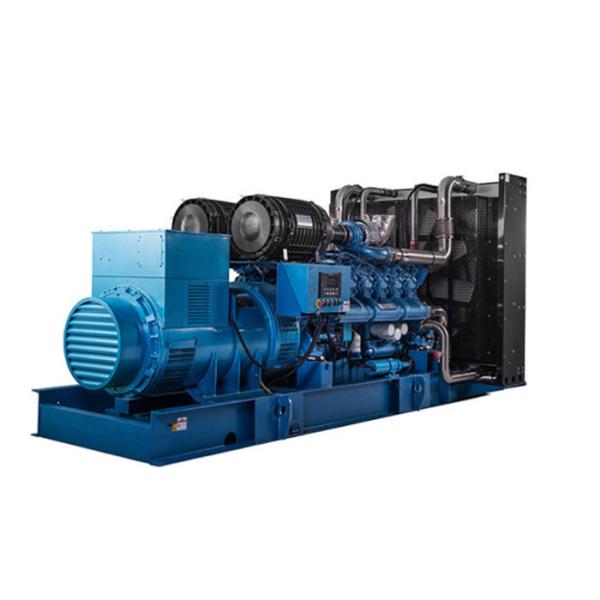

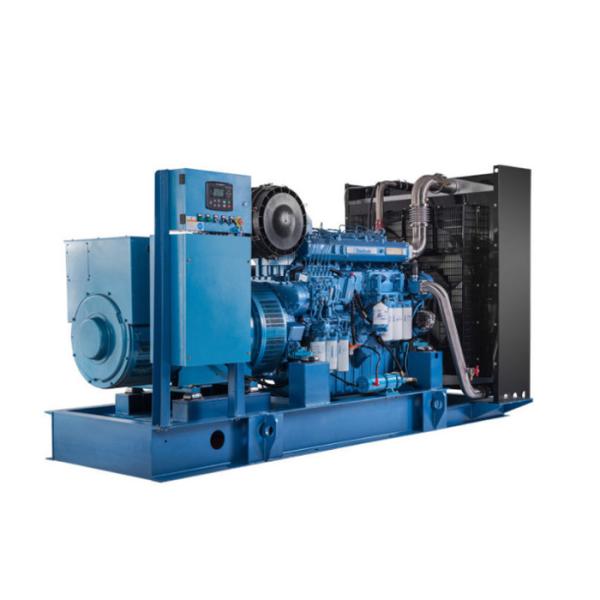

MP-A-320 Alternator 320KW 400KVA with Weichai WP13D405E200 Engine 380V Generator
MP-A-320 Alternator 320KW 400KVA with Weichai WP13D405E200 Engine 380V Generator
MP-A-320 Alternator 320KW 400KVA with Weichai WP13D405E200 Engine 380V Generator
MP-A-320 Alternator 320KW 400KVA with Weichai WP13D405E200 Engine 380V Generator
MP-A-320 Alternator 320KW 400KVA with Weichai WP13D405E200 Engine 380V Generator
MP-A-320 Alternator 320KW 400KVA with Weichai WP13D405E200 Engine 380V Generator
MP-A-320 Alternator 320KW 400KVA with Weichai WP13D405E200 Engine 380V Generator
MP-A-320 Alternator 320KW 400KVA with Weichai WP13D405E200 Engine 380V Generator
MP-A-320 Alternator 320KW 400KVA with Weichai WP13D405E200 Engine 380V Generator
MP-A-320 Alternator 320KW 400KVA with Weichai WP13D405E200 Engine 380V Generator
Specifications
Warranty :
1year
Place of Origin :
China
Brand Name :
MEAOPOWER
Model Number :
MP-W320
Rated Voltage :
110V-480V
Rated Current :
20A to 7000A
Speed :
1500 rmp / 1800 rmp
Frequency :
50 Hz/ 60 Hz
Weight :
3200KG
Engine Model :
WP13D405E200
Alternator :
MP-A-320
Rated Power :
320KW
Phase :
3
Engine Brand :
Weichai Brand
Engine Cylinder :
6/L
Noise :
105dB(A)
Delivery port :
Shanghai China
Output Type :
AC Three Phase 220/380V 50/60Hz
Fuel :
0#or-10# Light Diesel Oil
Certification :
CE/ISO
Packaging Details :
Plywood,PE Film Packing
Port :
shanghai
Supply Ability :
100 Set/Sets per Month
Price :
$31,500.00/sets 1-4 sets
MOQ :
1 PC
Description
Product Description
MP-A-320 Alternator 320KW 400KVA with Weichai WP13D405E200 Engine 380V Generator
Specification
Diesel generaor
value
Model
MP-W320
Power
320KW/400KVA
Frequency
50HZ
Voltage
400V
Optional type
Open type/Silent
Size of open type
3200*1345*1885mm
Weight of open type
3200kg
Engine
Model
Weichai WP13D405E200
Cylinder
6L Arrangement
Bore*Stroke
127mm*165mm
Displacement
12.5L
Fuel consumption
200g/kw.h
Speed governor
Electronic
Alternator
Optional brand
Stamford/Leroy Somer/Mecc Alte/Marathon
Exciter type
Single bearing,brushless,Self-excited
Power factor
0.8
Voltage adjust
≥5%
Insulation
H
Protection grade
IP23
Controller
Option brand
Deepsea/Deif/ComAp/Smartgen
