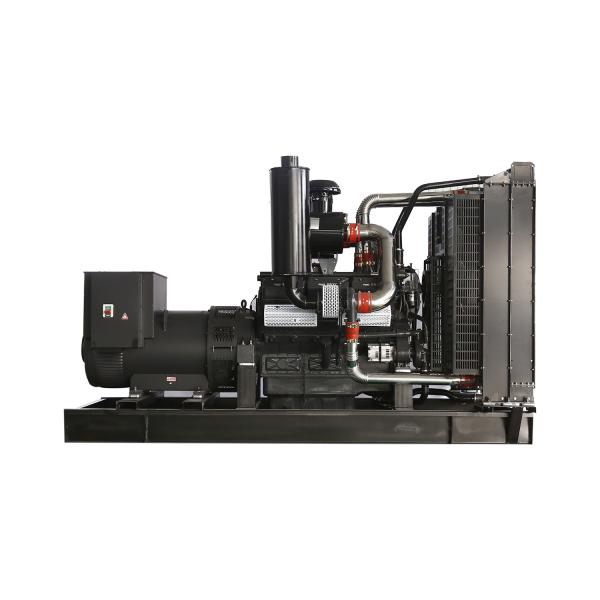

500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
Specifications
Warranty :
3months-1year
Place of Origin :
China
Brand Name :
shanghai shendong
Model Number :
SDV610
Rated Voltage :
230V, 400V
Rated Current :
900A
Speed :
1500RPM, 1800RPM
Frequency :
50/60HZ
Starting system :
Auto Start
Type :
Trailer Type, Silent type, Container Type, Super Silent Type, Open Frame, Portable Type, Mobile Type, Canopy Type, Silent
Cooling System Type :
Water cooling system
Alternator :
Marathon
Options :
Automatic Transfer Switch
Engine type :
Direction Injection
Product Name :
Silent speaker unit
Color :
Customers' Request
Phase :
1 Phase/3 Phase
ControllerControl panel :
Smargen
Rated Power :
500KW
Packaging Details :
Box packaging
Price :
$21,400.00/units >=1 units
MOQ :
1 unit
Description
Details Images
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
500KW diesel generator set
Model BM-500GF Rated output power 625/500 (KVA/KW) Wiring method: three-phase four wire Power factor 0.8 (lagging) Starting method: 24V DC power start Frequency (Hz) 50 Unit weight (kg) 5.5 Unit size (length * width * height) 3500X1600X2100MM Diesel engine data Manufacturer Shanghai Shendong Model SDV610 Rated speed (Rpm) 1500 Maximum engine power (KW) 610 Bore stroke 125X160 Compression ratio 15:1 Number of cylinders 12 Fuel consumption rate (g/kWh)<203 Compression pressure (n>200>2.5) Oil consumption rate g/W · h<0.5r/min) Total piston displacement L79.17 Air intake method: exhaust gas turbocharging and intercooling Engine cooling method Satisfying ambient temperature of 40 ℃, radiator, belt driven cooling fan, with fan safety cover Generator data Manufacturer Benma New Energy Model BMQW-500 Power (KVA/KW) 500 Protection level IP22 Insulation level H Power factor 0.8 lagging Adjustment range of no-load voltage ± 5% Voltage control mode AVR Efficiency (%) 80 Wiring method three-phase four
Products Description
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
Product packaging
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
Our Factory
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
Manufacturing Technique
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
Certifications
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
Recommend Products
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
500KW Real Estate Backup Power Supply with Self Starting Control Screen and Water Cooling System ISO9001
