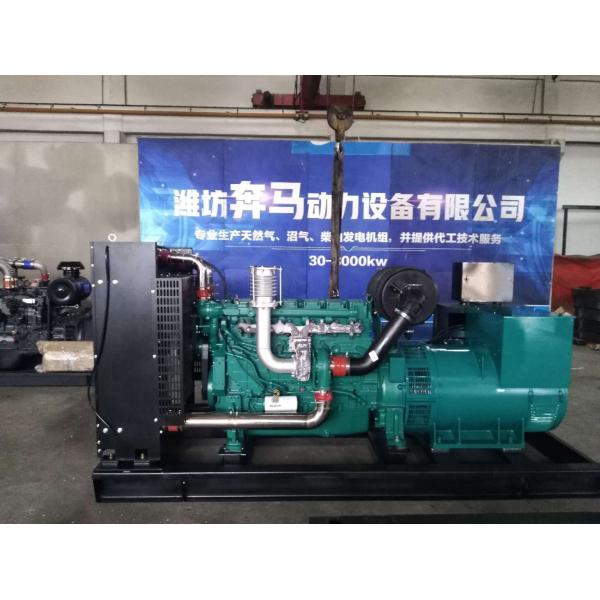

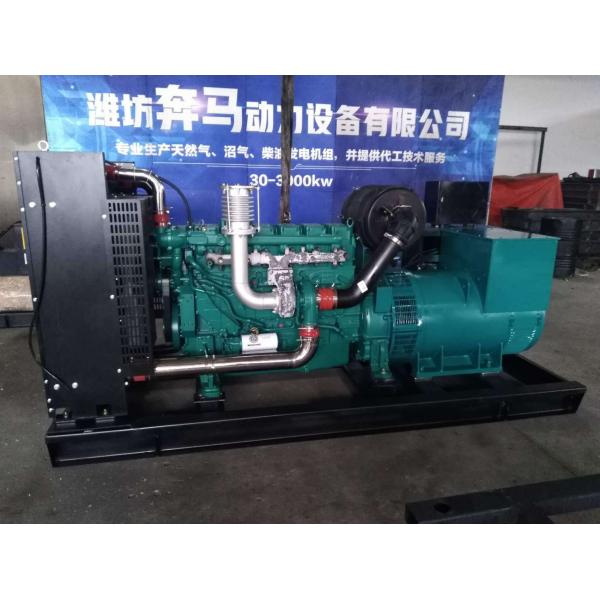

200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
Specifications
Warranty :
3months-1year
Place of Origin :
China
Brand Name :
weichai
Model Number :
WP10D238E200
Rated Voltage :
230V, 400V
Rated Current :
360A
Speed :
1500RPM, 1800RPM
Frequency :
50/60HZ
Starting system :
Auto Start
Type :
Trailer Type, Silent type, Container Type, Super Silent Type, Open Frame, Portable Type, Mobile Type, Canopy Type, Silent
Weight :
2072kg
Cooling System Type :
Water cooling system
Alternator :
Marathon
Options :
Automatic Transfer Switch
Engine type :
Direction Injection
Product Name :
Silent speaker unit
Color :
Customers' Request
Phase :
1 Phase/3 Phase
ControllerControl panel :
Smargen
Rated Power :
200kw
Packaging Details :
Box packaging
Price :
$11,960.00/units >=1 units
MOQ :
1 unit
Description
Details Images
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
200KW Weichai Industrial Power Diesel Generator Set Pure Copper Brushless Motor Self Start
Equipment parameters of a 200KW Weichai diesel generator set: Weichai Lanqing diesel generator set parameters 200KW 1、 Technical specifications (1) Model: 200GF Common power (KW): 200 Backup power (KW): 238 Frequency: 50Hz Output voltage: 400/230V Speed: 1500rpm Power factor: COS Φ= 0.8 (lag) Fuel consumption (g/Kw * h): 51.3 (recommended to use No. 0 diesel) Maximum output current (A): 360 Number of phases/lines: three-phase four wire Noise LP7m: 105dB External dimensions (mm): 2858 * 1167 * 1800 (external dimensions are subject to the actual product) Weight: 2072Kg (weight based on actual product) (2) Diesel engine: Brand: Weichai Lanqing Manufacturer: Weichai Power Co., Ltd Model: WP10D238E200 Cooling start: closed water cooling Starting method: 24V DC power start Air intake method: turbocharging Number of cylinders: 6 Total cylinder displacement L: 9.726 Fuel supply method: direct injection Cylinder arrangement: inline Intermediate cooling method: Intermediate cooling Fuel model: Domestic 0 # light diesel Speed regulation mode: mechanical/electronic Diesel engine coolant capacity: 42L Oil model: WD/40 Cylinder diameter/stroke: 126/130mm Diesel engine oil capacity L: 23
Products Description
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
Product packaging
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
Our Factory
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
Manufacturing Technique
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
Certifications
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
Recommend Products
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
200KW Weichai Industrial Power Diesel Generator Set with Water Cooling System and Autom
