Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry
Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry
Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry
Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry
Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry
Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry
Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry
Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry
Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry
Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry
Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry
Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry
Specifications
Warranty :
3months-1year
Place of Origin :
China
Brand Name :
weichai
Model Number :
WP10D264E200
Rated Voltage :
230V, 400V
Rated Current :
360A
Speed :
1500RPM, 1800RPM
Frequency :
50/60HZ
Starting system :
Auto Start
Type :
Trailer Type, Silent type, Container Type, Super Silent Type, Open Frame, Portable Type, Mobile Type, Canopy Type, Silent
Weight :
2072kg
Cooling System Type :
Water cooling system
Alternator :
Marathon
Options :
Automatic Transfer Switch
Engine type :
Direction Injection
Product Name :
Silent speaker unit
Color :
Customers' Request
Phase :
1 Phase/3 Phase
ControllerControl panel :
Smargen
Rated Power :
200kw
Packaging Details :
Box packaging
Price :
$14,892.00/units >=1 units
MOQ :
1 unit
Description
Details Images
Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry
Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry

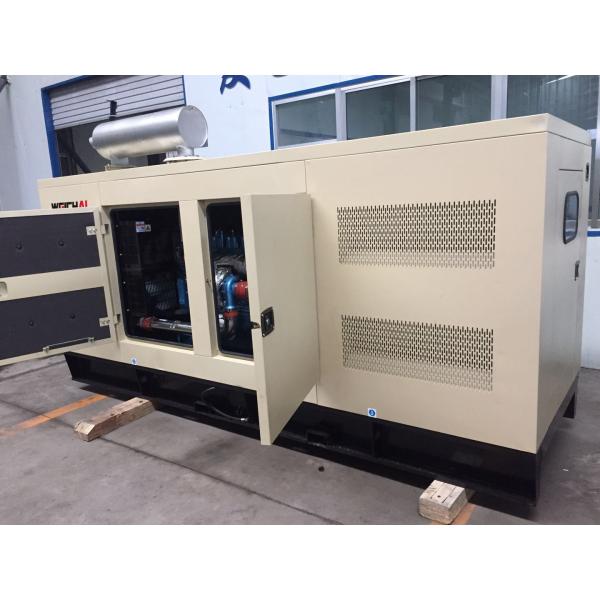

200KW Weichai WP10D264E200 Diesel Generator Set with Silent Speaker
Equipment parameters of 200KW diesel generator set: Weichai Lanqing diesel generator set parameters 200KW 1、 Technical specifications (1) Model: 200GF Common power (KW): 200 Backup power (KW): 264 Frequency: 50Hz Output voltage: 400/230V Speed: 1500rpm Power factor: COS Φ= 0.8 (lag) Fuel consumption (g/Kw * h): 57.4 (recommended to use No. 0 diesel) Output current (A): 360 Number of phases/lines: three-phase four wire Noise LP7m: 105dB External dimensions (mm): 2858 * 1167 * 1800 (external dimensions are subject to the actual product) Weight: 2072Kg (weight based on actual product) (2) Diesel engine: Brand: Weichai Lanqing Manufacturer: Weichai Power Co., Ltd Model: WP10D264E200 Cooling start: closed water cooling Starting method: 24V DC power start Air intake method: turbocharging Number of cylinders: 6 Total cylinder displacement L: 9.726 Fuel supply method: direct injection Cylinder arrangement: upright Intercooling method: water cooling Fuel model: Domestic 0 # light diesel Speed regulation mode: mechanical/electronic Oil model: WD/40 Cylinder diameter/stroke: 126/130mm Diesel engine oil capacity L: 23
