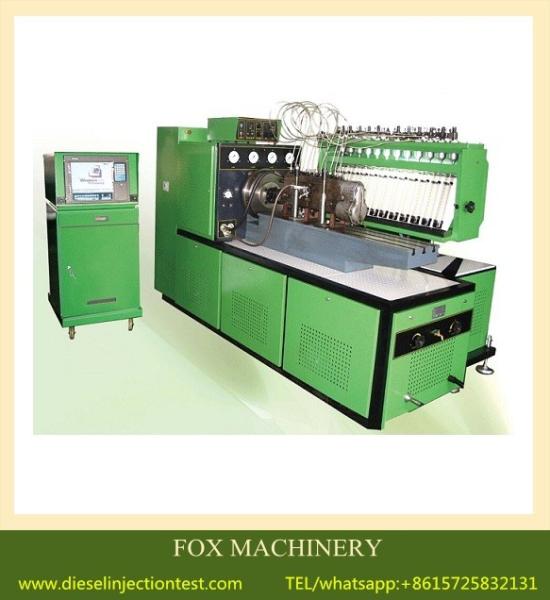

F-EPT diesel fuel injection pump test bench 30kw/45kw/55kw for big pump

• Characteristics:

  ◎Independent removable operating flat roof system;
  ◎Ultra large working table with three "T"type slots;
  ◎Independent removable oil collecting system;
  ◎Independent forced lubrication system;
  ◎Rotation speed,count,temperature,rack travel,air pressure and advance angle are measured and controlled by compuers in real time,then displayed by 15"LCD;
  ◎The data of the pumps can be saved,modified and obtain pump databass;
  ◎It is very easy to find the data of the pumps in pumps database;
  ◎Built-in air resource;
  ◎All data can be made into reports and printed;
  ◎Changing frequency changing rotation speed,small fall of rotation speed and large output torque;
  ◎High precision,high efficiency and energy saving;
  ◎Having the function of oil level display and alarm;
  ◎Automatically generating and displaying speed characteristics curve.

  Functions:

  ◎Measurement of each cylinder`s delivery at various rotation speeds;
  ◎Checking of each cylinder`s injection time with static state;
  ◎Checking of the mechanical speed governors;
  ◎Checking of the electricmagnetic valve of distributor pumps;
  ◎Checking of the pneumatic speed governors` positive pressure performance;
  ◎Checking of the pressure compensators (with LDA);
  ◎Measurement of the reflux delivery of distributor pumps;
  ◎Measurement of the internal pressure of the distrbu-tor pumpa body;
  ◎Checking of the pneumatic speed governors` vacuum performance;
  ◎Measurement of rack travel;
  ◎Checkong of the sealing of fuel injection pumnp body;
  ◎Measurement of advance angle.

  Technical Parameters:

  ◎Graduates:600/800ML;150/45ML;
  ◎Oil tank volume:100L；
  ◎Auto-controlled constant oil temperature:40±2℃；
  ◎Test oil filtering unit:5μ；
  ◎D.C.Supply:12V.24V;
  ◎Feed pressure:low:0~0.4Mpa,high:0~1.6Mpa;
  ◎Pump body inernal pressure:0~0.16Mpa,0~1.6Mpa
  ◎Display air pressure,range:positive:0~0.3Mpa,negative:-0.03~0Mpa;
  ◎Speed presetting range:0~4000RPM;
  ◎Rack travel range:0~25MM;
  ◎Center height:125MM;
  ◎Flywheel inertia`s moment:0.8KG.M2;
  ◎Output power:18.5KW,22KW,30KW;
  ◎Overall size(MM):2900×840×1700；
  ◎Net weight:2200KG.
