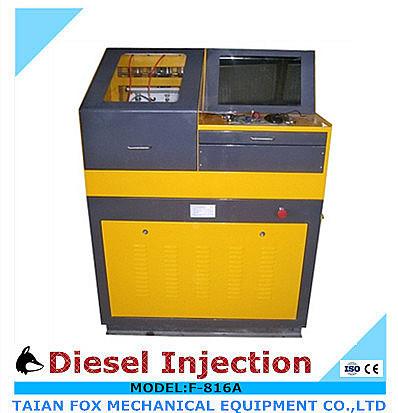

F-816A Common Rail Injector Test Bench(3KW/380V/3PHASE),glass tube shows injection volume

Features for F-816A common rail injector test bench:

1)It uses glass tube to show fuel injection&back flow volume(Advantages: Not easy to be damaged and the accuracy less affected by outside factors)

2)It can test two common rail injectors at same time(or on request by customers' requirements)

3)Install with brand new BOSCH original CP1 pump and BOSCH common rail,it can generate high pressure with 0-2000bar,and stablize the pressure with 10bar.

4)Rail pressure and RPM can be displayed on computer in real time.

5)Pulse width and frequency of the injectors can be adjusted.

6)Injection times can be set.

7)All injctor drive channels have short circuit protection functions.

Functions of F-816A common rail injector test bench:

1)Application for solenoid common rail injectors BOSCH DENSO DELPHI SIEMENS and PIEZO electric injectors.

2)Clean the injectors while testing

3)Test sealing performance of the injectors

4)Test the fuel injection volume&back flow volume under working conditions of full lad,pre-injection,idle speed,emmision point.

5)Test result can be saved and printed.

6)Standard calibration data inset and can be edited, new injector model and data can be added into the system.

Other informations:

We offer following common rail tools along with the machine with free cost:

Promotion Informtion

(Remeber our website http://www.dieselinjectiontest.com we will have promotion times any time)

If you buy F-816A common rail injector test bench and add 250USD you can get the following 35pcs common rail injector dismantle tools:(original price for 38pcs tools is 300USD)!!!

2)If you buy F-816A common rail injectors and add only 190USD,you can have the following 23pcs common rail injector dismantle tools(orginal price is 230USD)!!!!:
