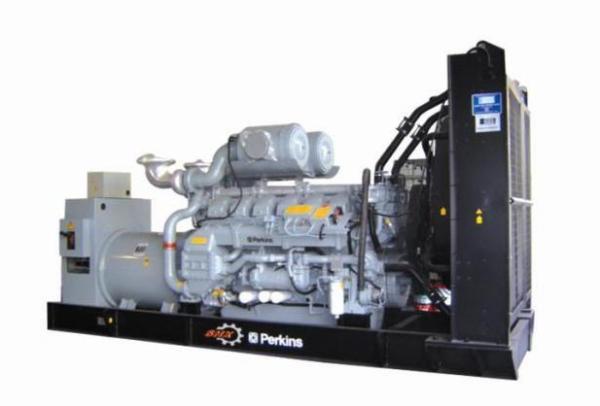

Standby Power 1250Kva Perkins Diesel Power Generator With Engine 4012-46TWG2A
Standby Power 1250Kva Perkins Diesel Power Generator With Engine 4012-46TWG2A
Specifications
Brand Name :
SHX
Model Number :
SPE1250
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30 Sets per month
Delivery Time :
30 working days
Packaging Details :
Standard export packing
Product Name :
1250Kva Perkins Genset
Color :
Gray
Frequency :
50Hz / 60Hz
Speed :
1500RPM / 1800RPM
Cylinder No. :
12V
Engine brand :
Perkins
Alternator brand :
Engga
Control Function :
Auto / Manual
Description

Perkins 1250Kva Diesel Generator Set With Engine 4012-46TWG2A For Standby Power

Power Specifications

  • 1500RPM at 50Hz/1800RPM at 60Hz
  • Water Cooled
  • Turbocharged

Electrical Specifications

  • Power Factor: 0.8 Lagging
  • 3 Phase 4 Pole
  • Insulation: Class H
  • Brushless
  • Self-Excited
  • IP22 Protection
  • AVR regulation
  • Starting by Battery

Special Specifications

  1. Frequency: 50/60Hz
  2. 3 Phase 4 Wire or 1 Phase 2 Wire
  3. Speed: 1500/1800rpm
  4. Three Phase Voltage Available: 208V / 220V / 230V / 240V / 380V / 390V / 400V / 415V / 440V / 460V / 480V
  5. Single Phase Voltage Available: 100-250V


Genset Specifications:

Genset model SPE1250
Genset rated power 1000KW / 1250KVA
Rated voltage 400/230V (adjustable)
Rated current 1800 Amps
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 6600 × 2950 × 3000
Gross weight (kg) 9500

Engine Specifications:

Diesel Engine
Brand PERKINS
Model 4012-46TWG2A
Engine type 12 cylinders in vee, 4 stroke, direct injection
Aspiration Turbocharged and air-to-air intercooled
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Speed governing system Electronic
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 45.84
Bore×Stroke(mm) 160×190
Compression ratio 13.6:1
100% Load fuel consumption (l/h) ≤248.2
Lube capacity(L) 177

Alternator Specifications:

Alternator
Brand ENGGA
Model EG400-1000N
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP21

Control Panel:

The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset has low oil pressure, high temperature, over speed, fail to start, charge fail, emergency stop, and over load protection function.
