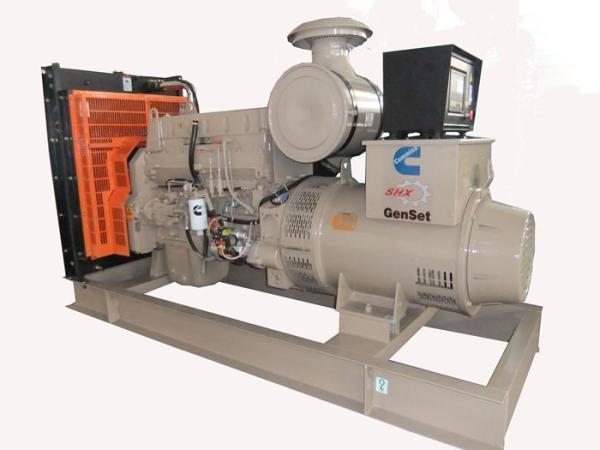

3 Phase Water Cooled Cummins Diesel Generator 1500RPM With Engga Alternator
3 Phase Water Cooled Cummins Diesel Generator 1500RPM With Engga Alternator
Specifications
Brand Name :
SHX
Model Number :
SCE275B
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
80 Sets per month
Delivery Time :
15 working days
Packaging Details :
Standard export packing
Product type :
250KVA Genset
Color :
Yellow
Alternator Type :
Brushless
Air Intake :
Turbocharged
Power Factor :
0.8 Lagging
Engine Brand :
Cummins
Alternator brand :
Engga
Controller :
Smartgen
Description

Cummins 1500RPM 3 Phase Water Cooled Diesel Generator With Engga Alternator

General Information

  1. Prime power: 250KVA / 200KW
  2. Rated voltage: 400V / 230V
  3. Rated frequency: 50Hz
  4. Rated speed: 1500RPM

Genset Specifications:

Genset model SCE275B
Genset rated power 200KW/250KVA
Rated voltage 400/230V (adjustable)
Rated current 360 Amps
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 3000×1000×1750
Gross weight (kg) 3100

Engine Specifications:

Diesel Engine
Brand CCEC CUMMINS
Model MTA11-G2A
Engine type 6 cylinders in Line,4 stroke, direct injection
Aspiration Turbocharged and water-to-air aftercooled
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 11
Bore×Stroke(mm) 125×147
Compression ratio 16.1:1
100% Load fuel consumption (l/h) ≤46.1
Lube capacity(L) 31.6

Alternator Specifications:

Alternator
Brand ENGGA
Model EG280-200N
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H

The fuel system of Cummins Generator Sets:


The PT fuel system of Cummins Inc. patent, with unique over speed protection device; low pressure pipeline, less pipeline, low failure rate, high reliability; high pressure jet, full combustion. It is equipped with fuel supply and return oil check valve, safe and reliable.

The lubrication system of Cummins Generator Sets:


The variable flow pump, with the main oil channel signal tube, according to the main oil channel oil pressure to adjust the amount of oil pump to optimize the engine oil quantity. Low oil pressure (241-345kPa), the above measures can effectively reduce the pump power loss, improve power, improve the engine of the economy.
