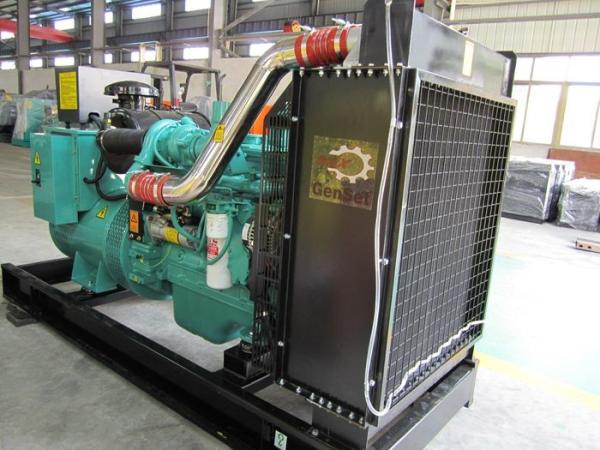

6LTAA8.9-G2 Cummins 200kw Diesel Generator Prime Power 250KVA 50Hz / 60Hz
6LTAA8.9-G2 Cummins 200kw Diesel Generator Prime Power 250KVA 50Hz / 60Hz
6LTAA8.9-G2 Cummins 200kw Diesel Generator Prime Power 250KVA 50Hz / 60Hz
6LTAA8.9-G2 Cummins 200kw Diesel Generator Prime Power 250KVA 50Hz / 60Hz
Specifications
Brand Name :
SHX
Model Number :
SCF250
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
80 Sets per month
Delivery Time :
15 working days
Packaging Details :
Standard export packing
Product Name :
250KVA Cummins Generator
Color :
Green
Cylinder No. :
6L
Phase No. :
3
Alternator Material :
100% Copper Wire
Engine brand :
Cummins
Alternator brand :
Faraday
Control Panel :
Smartgen HGM6110
Description

6LTAA8.9-G2 Cummins Diesel Generator Prime Power 200KW / 250KVA 50Hz / 60Hz

Features

1. Rated power 200KW / 250KVA.

2. Cummins engine with Faraday alternator.

3. Smartgen or Deepsea control panel.

4. Soundproof canopy and ATS are for options.

Genset Specifications:

Genset model SCF250
Genset rated power 200KW / 250KVA
Rated voltage 400/230V (adjustable)
Rated current 360 Amps
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 3100×1200×1800
Gross weight (kg) 2300

Engine Specifications:

Diesel Engine
Brand DCEC CUMMINS
Model 6LTAA8.9-G2
Engine type 6 cylinders in Line, 4 stroke, direct injection
Aspiration Turbocharged and air-to-air intercooled
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 8.9
Bore×Stroke(mm) 114×145
Compression ratio 16.6:1
100% Load fuel consumption (l/h) ≤46.4
Lube capacity(L) 27.6

Alternator Specifications:

Alternator
Brand FARADAY
Model EG280-200N
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP23

Control System

LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator sets.

Control Function


1. Key start / auto start
2. Monitoring meters: Current; Frequency; Wire Voltage; Genset KVA; Genset KW; Output Capacity; Output KW.H; Power Factor.
3. Warning/Shutdown: Alternator Under/Over Volts, Frequency; Under/Over Speed; Low Oil Pressure; High Engine Temp; High/Low Battery Volts; Over Current; Earth Fault Shutdown.

200KW / 250KVA Cummins diesel generator, standby generator
