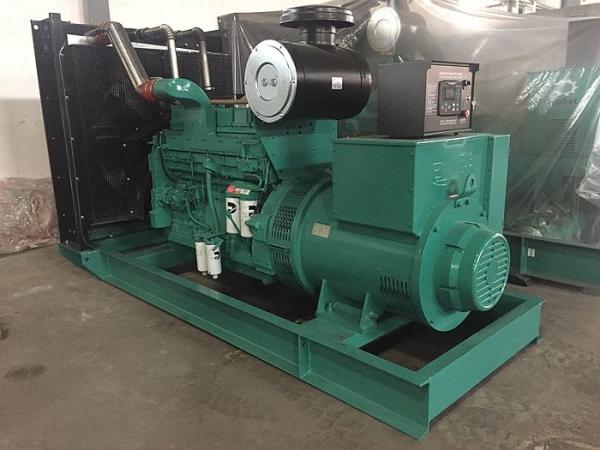

500KW Cummins Diesel Power Generator Set 625KVA Cummins Diesel Generator
500KW Cummins Diesel Power Generator Set 625KVA Cummins Diesel Generator
500KW Cummins Diesel Power Generator Set 625KVA Cummins Diesel Generator
500KW Cummins Diesel Power Generator Set 625KVA Cummins Diesel Generator
Specifications
Brand Name :
SHX
Model Number :
SCE688
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
80 Sets per month
Delivery Time :
20 working days
Packaging Details :
Standard export packing
Product name :
500KW Cummins Generator
Color :
Green
Speed Governing :
Electronic
Aspiration :
Turbocharged and intercooled
Insulation Grade :
Class H
Engine brand :
Cummins
Alternator brand :
Engga
Control Panel :
Smartgen HGM6110N
Description

500 Kw Cummins Diesel Generator Set With Brushless Alternator For Factory

Generator Information:

1. Prime power 500KW / 625KVA, standby power 550KW / 688KVA.

2. Cummins engine with Engga alternator.

3. Smartgen Genset controller.

Technical Specification for Standard Genset:


Gen-set adopt 3 phases & 4 lines output, with output 400V / 230V, Frequency 50Hz, Power factor 0.8, Neutral point to earth and protective performance complies with NEMA1 and IP23 standard.

Genset Specifications:

Genset model SCE688
Genset rated power 500KW / 625KVA
Rated voltage 400/230V (adjustable)
Rated current 900 Amps
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 3300×1250×1850
Gross weight (kg) 5000

Engine Specifications:

Diesel Engine
Brand CUMMINS
Model KTAA19-G6A
Engine type 6 cylinders in Line,4 stroke, direct injection
Aspiration Turbocharged and air-to-air aftercooled
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 19
Bore×Stroke(mm) 159×159
Compression ratio 13.0: 1
100% Load fuel consumption (l/h) ≤121.2
Lube capacity(L) 38

Alternator Specifications:

Alternator
Brand ENGGA
Model EG355-500N
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP21

Control System

AMF Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.

Why choose Cummins powered gensets?

1. Cummins engines which are made in China with the same standard of the US Cummins keep the quality almost the same as the US Cummins.

2. More than 90% of the Engines components and spares are made in China which keeps the cost much lower.

3. Cummins engines are universally just as Cummins factories all around the world; all the spares are universal which make the maintenance and reparation very simple.

4. Cummins has worldwide after-sales network, to whom you can get technical support and spares right near your house.

5. Engineers are more familiar with Cummins engines because they are most widely use in every filed and everywhere around the world.

500KW Cummins Diesel Power Generator Set 625KVA Cummins Diesel Generator
