Cummins KTA38-G2A Industrial Diesel Power Generator Set 720KW For Emergency
Cummins KTA38-G2A Industrial Diesel Power Generator Set 720KW For Emergency
Specifications
Brand Name :
SHX
Model Number :
SCM900
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50 Sets per month
Delivery Time :
20 working days
Packaging Details :
Standard export packing
Product name :
900KVA diesel generator
Color :
Green
Cooling method :
Water cooled
Speed governing :
Electronic
Cylinder No. :
12V
Engine brand :
Cummins
Alternator brand :
Marathon
Control mode :
Auto
Description

720KW / 900KVA Industrial Diesel Generator with Cummins engine KTA38-G2A

Features

  • Famous engine brand Cummins
  • High quality alternator brand Marathon
  • AMF control panel
  • You could find spare-parts very easy

Generaor Set Specifications:

Technical data
Genset Model SCM900
Prime Power 720KW/900KVA
Rated Voltage 400/230V
Frequency 50Hz
Power Factor 0.8(lagging)
Dimension (L×W×H) (mm) 4100×1800×2500
Genset weight (kg) 7500
Diesel Engine
Brand CCEC Cummins
Model KTA38-G2A
Number of Cylinders 12
Rotating Speed 1500RPM
Cylinder Arrangement 60º Vee form
Cycle Four stroke
Aspiration Turbocharged after water-cooled
Bore×Stroke(mm) 159 x 159
Displacement(L) 37.8
Compression Ratio 14.5:1
Speed Governor EFC speed governor
Cooling System Water-cooled
Speed Stability (%) ≤5%
Total Lubrication System Capacity (L) 114
Fuel Consumption at 100% Load 202g/kwh
Starting Method DC 24V Electrical starting
Alternator
Brand Marathon
Model MX-750-4
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP21
Altitude ≤1000m
Exciter Type Brushless ,Self-excited, AVR automatic voltage regulation
Insulation Class H
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%

The components of Genset:

Diesel engine

Alternator

Water tank and radiator assembly

Control panel

Base frame

Electrical Parameters


Wave distortion: <10%
Voltage fluctuation: <0.5%
Voltage / frequency fluctuation: <=0.5%
AVR self-regulated, voltage regulation rate: <=+- 1%
Radio interference restraining accords with stipulation of VDE0875-N and ISO8528


Control Function


Key start / auto start
Monitoring meters: Current; Frequency; Wire Voltage; Genset KVA; Genset KW; Output
Capacity; Output KW.H; Power Factor.
Warning/Shutdown: Alternator Under/Over Volts, Frequency; Under/Over Speed; Low Oil Pressure; High Engine Temp; High/Low Battery Volts; Over Current; Earth Fault Shutdown.

Voltage

  1. Frequency at 50Hz: Available in 400/230Volts, 415/240Volts, 380/220Volts, 220/127Volts, and 200/115Volts.
  2. Frequency at 60Hz: Available in 480/227Volts, 440/254Volts, 220/117Volts, and
  3. 208/120Volts.

Guarantee for SHX Series Generators

  1. Guarantee Period: One year or 1000hours whichever comes first.
  2. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  3. Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
  4. 24 hours service hotline is available for customers.

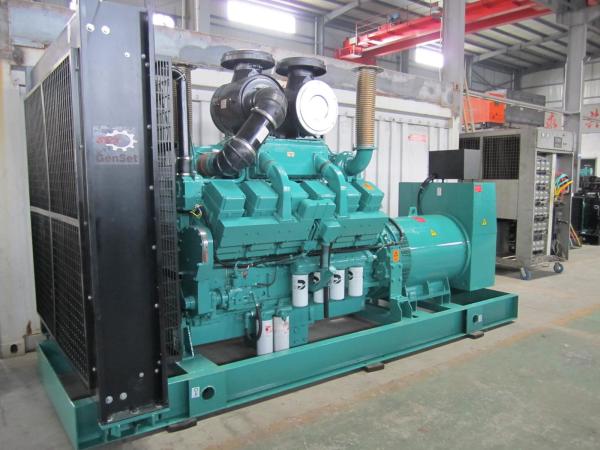

Picture show:

Cummins KTA38-G2A Industrial Diesel Power Generator Set 720KW For Emergency
