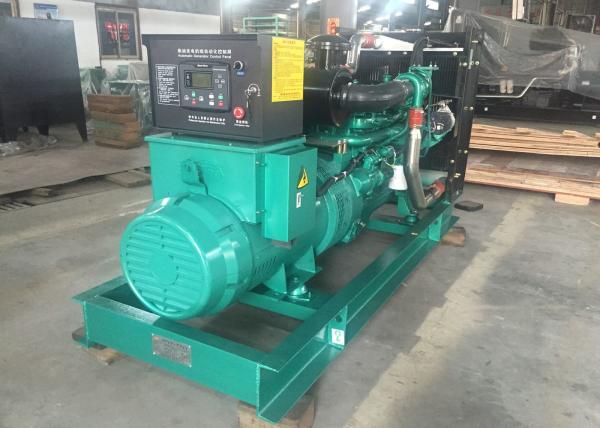

Industrial Type Diesel Power Generator Set 120KW / 150 KVA Powered By Yuchai Engine
Industrial Type Diesel Power Generator Set 120KW / 150 KVA Powered By Yuchai Engine
Industrial Type Diesel Power Generator Set 120KW / 150 KVA Powered By Yuchai Engine
Industrial Type Diesel Power Generator Set 120KW / 150 KVA Powered By Yuchai Engine
Specifications
Brand Name :
SHX
Model Number :
SYE150
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
80 sets per month
Delivery Time :
15 working days
Packaging Details :
Standard export packing
Product name :
150KVA Yuchai diesel generator
Color :
Green
Fuel system :
Direct injection
Frequency :
50Hz
Speed :
1500RPM
Engine brand :
Yuchai
Alternator brand :
Engga
Control Panel :
Smartgen HGM6110
Description

Industrial Type Diesel Generator 120KW / 150 KVA Powered By Yuchai Engine

Parameter:


Power Factor: 0.8(lagging)
Protection Standard: IP21-IP23
Model of Connection: 3 phase 4 lines
Insulation Grade: H
Frequency Drop(%): ≤ 0.5
Transient state frequency deviation(%): (advertised power) +10~-7
Frequency Recovery Time(S): ≤ 3
Voltage Recovery Time(S): ≤ 4
Waveform Distortion(%): ≤ 5

Genset Specifications:

Genset model SYE150
Genset rated power 120KW/150KVA
Rated voltage 400/230V (adjustable)
Rated current 216 Amps
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 2300×1000×1350
Gross weight (kg) 1400
Diesel Engine
Brand YUCHAI
Model YC6B205L-D20
Engine type 6 cylinders in Line, 4 stroke, direct injection
Aspiration Turbocharged
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Speed governing system Electronic
Starting method By 12V battery
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 7.252
Bore×Stroke(mm) 108×132
Compression ratio 17.5:1
100% Load fuel consumption (l/h) ≤29.8
Lube capacity(L) 20-22
Alternator
Brand ENGGA
Model EG280-120N
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP21

Technical Specification for Standard Gen Set:


Gen-set adopt 3 phases& 4 lines output, with output 400V/230V, Frequency 50Hz, Power factor 0.8, Neutral point to earth and protective performance complies with NEMA1 and IP21 standard.

Control System

LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator sets.
