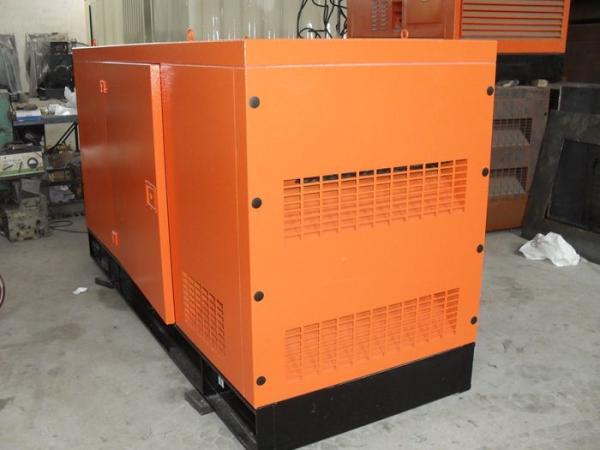

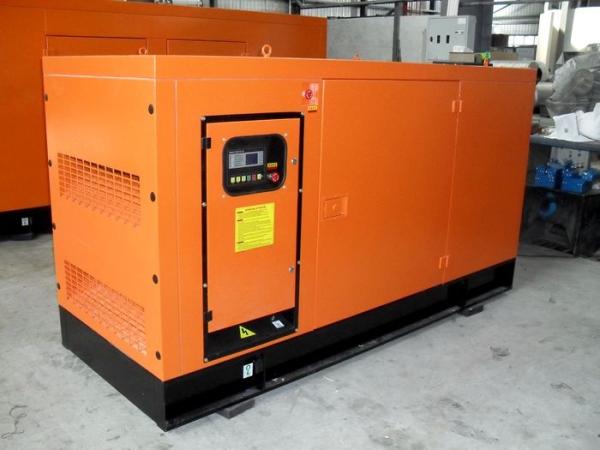

50KW / 63KVA Diesel Powered Electric Generator Set 3 Phase 4 Pole
50KW / 63KVA Diesel Powered Electric Generator Set 3 Phase 4 Pole
50KW / 63KVA Diesel Powered Electric Generator Set 3 Phase 4 Pole
50KW / 63KVA Diesel Powered Electric Generator Set 3 Phase 4 Pole
Specifications
Brand Name :
SHX
Model Number :
SCF63
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets per month
Delivery Time :
10 working days
Packaging Details :
Standard export packing
Product Name :
50KW Industrial Generator
Color :
Red
Cylinder No. :
4L
Fuel System :
Direct Injection
Phase No. :
3
Engine brand :
Cummins
Alternator brand :
Faraday
Control Panel :
HGM6110N
Description

50KW / 63KVA Industrial Diesel Generators Set 3 Phase 4 Pole

Specification of generator set

  1. Prime power: 63KVA / 50KW
  2. Rated voltage: 400V / 230V
  3. Rated frequency: 50Hz
  4. Rated speed: 1500RPM

General Feature

Cummins Diesel Generator Set is a set of complete equipment for electrical power supply. Cummins engines, high quality alternators and advanced full automatically control system are produced through strict test, which together provides reliable power no matter as standby, prime or continuous use.

Genset Specifications:

Genset model SCF63
Genset rated power 50KW / 63KVA
Rated voltage 230/400V (adjustable)
Rated current 90 Amp
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 2600×1000×1420
Gross weight (kg) 1200

Engine Specifications:

Diesel Engine
Brand DCEC CUMMINS
Model 4BTA3.9-G2
Engine structure 4 cylinders vertical in line,4 stroke, turbocharged
Rotating speed 1500 RPM
Engine cooling method Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 3.9
Bore×Stroke(mm) 102×120
Compression ratio 16.5: 1
100% Load fuel consumption (litre/h) ≤12.9
Lube capacity(L) 11

Alternator Specifications:

Alternator
Brand FARADAY
Model FD2C1-4
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP23
