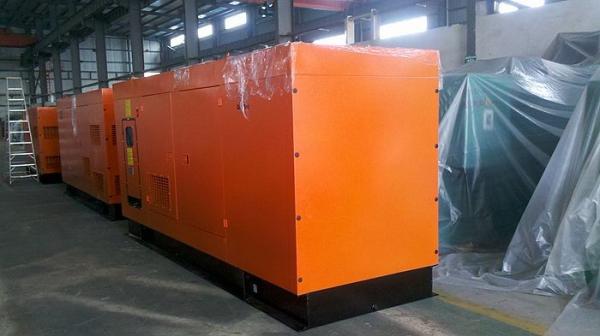

Outdoor Standby Power Generator 250KW / 313KVA , Water Cooled Diesel Generator

Genset Data: 400/230V, 50Hz, 3 Phase 4 Pole, 1500RPM, Power Factor 0.8

SHX Soundproof Generator Set Features:

1. A new kind of acoustic material is used as pugging, noise reducing return-flow wind tunnel is used as generator set's ventilation system.
2. High efficiency silencer with double level structure and another silencer between two levels keep the noise at the lowest level.
3. The box is modular structure with indicator and maintenance doors which make installation, operation and maintenance very convenient.
4. Benefited from the special design,medium low noise diesel generator set's noise can be as low as 70dB (A) (at LP7m).
5. Fuel tank can be installed on it according to customer needs.

Genset Specifications:

Engine Specifications:

Alternator Specifications:

Manufacturing Standards:

ISO8528; ISO1105; ISO3046; GB/T2820; GB755; BS5000; NEMAMG-22; YD/T502

Electrical Parameters

Wave distortion: <10%
Voltage fluctuation: <0.5%
Voltage / frequency fluctuation: <=0.5%
AVR self-regulated, voltage regulation rate: <=+- 1%
Radio interference restraining accords with stipulation of VDE0875-N and ISO8528

Control Function

Key start / auto start
Monitoring meters: Current; Frequency; Wire Voltage; Genset KVA; Genset KW; Output
Capacity; Output KW.H; Power Factor.
Warning/Shutdown: Alternator Under/Over Volts, Frequency; Under/Over Speed; Low Oil Pressure; High Engine Temp; High/Low Battery Volts; Over Current; Earth Fault Shutdown.

Supply scope of Silent Genset

1. Standard tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator.
2. Brand new engine, with start motor.
3. Brand new brushless alternator, single bearing, flange connection, IP21-23, H insulation class, with AVR.
4. Auto control panel, with LCD display.
5. Engine mounted battery-charging alternator.
5. Circuit Breaker, Exhaust Silencer
6. Radiator for 40°C ambient temperature and double-deck cooling, with fan guard and front guard.
7. Anti-vibration pads are fixed between engine/alternator and base frame, as to ensure the compete genset running under stablization.
8. Skid-mounted bottom Fuel tank - 8hrs continuous running for choice (bigger fuel tank by your demand under extra cost)
9. External recessed emergency stop button for extra safety
10. The colors & Brands by your requests
11. Optional choice: ATS (automatic transfer switch), battery charger of mains supply, fuel-water separator, water heater and oil heater ( depends on using environment),fuel filter, oil filter, water filter and air filter, Parallel system for your choice.
