Commercial Container Diesel Generator 800KVA Backup Power Diesel Generator Rpm 1500
Commercial Container Diesel Generator 800KVA Backup Power Diesel Generator Rpm 1500
Specifications
Brand Name :
SHX
Model Number :
SCS880A
Certification :
ISO9001:2015 , CE , TUV , BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
100%L/C At Sight , T/T
Supply Ability :
100 Sets per month
Delivery Time :
25 working days
Packaging Details :
Standard Export Packing
Product Name :
800KVA Cummins Generator
Color :
Optional
Cooling Type :
Water cooled
Cylinder No. :
12V
Starting method :
Electrical start by 24V batteries
Control Panel :
Smartgen
Description

Commercial Generators 800KVA Container Diesel Generators Cummins KTA38-G2B Backup Power

GENSET SPECIFICATRIONS:

Product Name 800KVA Diesel Genset Model SCS880A
Rated Power 640KW / 800KVA Standby Power 704KW / 880KVA
Engine Brand CUMMINS Alternator Brand STAMFORD
Voltage 400/230V Current 1152A
Frequency 50Hz Running Speed 1500RPM
Phase 3 Power Factor 0.8
Dimension 6059×2400×2400 mm Weight 11500 KG

ENGINE SPECIFICATRIONS:

Diesel Engine
Brand Cummins
Model KTA38-G2B
Number of Cylinders 12
Rotating Speed 1500RPM
Cylinder Arrangement 60º Vee form
Cycle Four stroke
Aspiration Turbocharged and air-to-air intercooled
Bore×Stroke(mm) 159 x 159
Displacement(L) 38
Compression Ratio 13.9:1
Speed Governor EFC speed governor
Cooling System Closed cycle water-cooled with fan drived by belt
Speed Stability (%) ≤5%
Total Lubrication System Capacity (L) 98.6
Fuel Consumption at 100% Load 199 g/kw.h
Starting Method DC 24V Electrical starting

ALTERNATOR SPECIFICATRIONS:

Alternator
Brand Stamford
Model LVI634C
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless ,Self-excited, AVR automatic voltage regulation
Insulation Class H
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%

FEATURES

  1. Universal design and manufacture.
  2. Most widely used around the world.
  3. With most service terminals.
  4. Engineers are familiar with Cummins powered gensets.
  5. You could find spare-parts very easy.

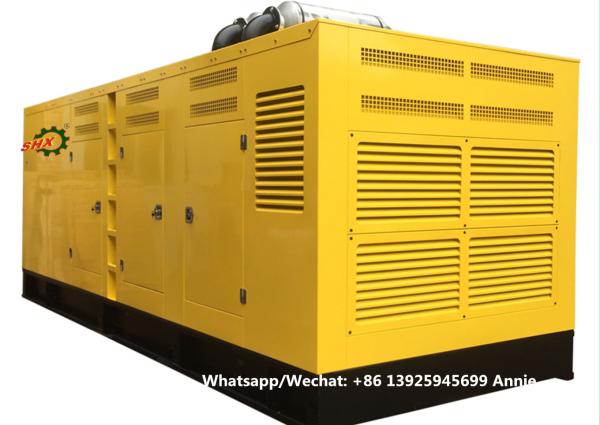

PHOTO SHOW

Commercial Container Diesel Generator 800KVA Backup Power Diesel Generator Rpm 1500
