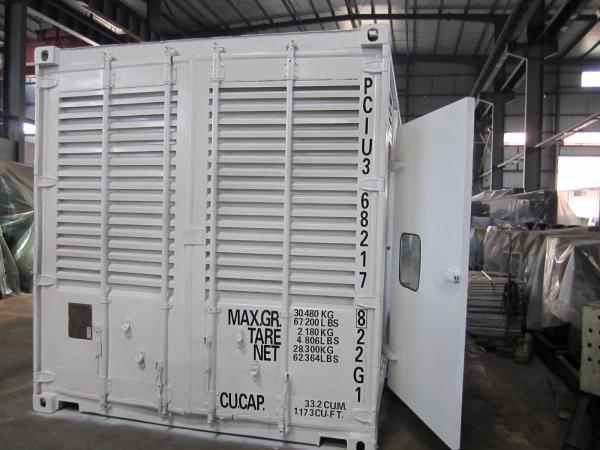

1250 Kva Soundproof Containerized Outdoor Diesel Generator With Cummins KTA50-G3
1250 Kva Soundproof Containerized Outdoor Diesel Generator With Cummins KTA50-G3
1250 Kva Soundproof Containerized Outdoor Diesel Generator With Cummins KTA50-G3
1250 Kva Soundproof Containerized Outdoor Diesel Generator With Cummins KTA50-G3
Specifications
Brand Name :
SHX
Model Number :
SCS1250
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5 Sets per month
Delivery Time :
30 working days
Packaging Details :
Standard export packing
Product Name :
1250 Kva Cummins Genset
Phase No. :
3
Alternator Type :
Brushless
Running Speed :
1500RPM
Starting method :
Electrical start by 24V batteries
Engine brand :
Cummins
Alternator brand :
Stamford
Control Panel :
Smartgen HGM6110N
Description

1250 Kva Soundproof Type Containerized Diesel Generators With Cummins KTA50-G3

General Feature

  • Every generator set is subjected to a comprehensive test program which includes 25% load, 50% load, 75% load, 100% load, 110% load and the checking, proving of all control and safety shut-down function.
  • Equipped with battery charger and 12 or 24V high performance maintenance-free lead-acid starting batteries and connecting with cables.
  • Equipped with industrial silencer and flexible exhaust hose.
  • Equipped with 8-hours operation base tank.
  • Equipped with CHNT MCCB circuit breaker
  • Designed to comply with ISO 8528/GB2820.
  • Powered by Cummins engine and coupled with Stamford alternator.

Genset Specifications:

Product Name 1250KVA Diesel Genset Model SCS1250
Rated Power 1000KW / 1250KVA Standby Power 1100KW / 1375KVA
Engine Brand CUMMINS Alternator Brand STAMFORD
Voltage 400/230V Current 1800A
Frequency 50Hz Running Speed 1500RPM
Phase 3 Power Factor 0.8
Dimension 5800×2280×2500 mm Weight 11040 KG

Engine Specifications:

Diesel Engine
Brand CUMMINS
Model KTA50-G3
Engine type 16 cylinders in Vee,4 stroke, air-to-air after-cooled
Aspiration Turbocharged
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 50.3
Bore×Stroke(mm) 159×159
Compression ratio 13.9: 1
100% Load fuel consumption (l/h) ≤234.1
Lube capacity(L) 151

Alternator Specifications:

Alternator
Brand FARADAY
Model FD6E1-4
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP23

Standard accessory list

　 　 　 　 　

1. Fuel connecting pipes 1 set.

2. 12V DC dry type battery c/w battery cables 2 sets.

3. Industrial type silencer c/w stainless steel flexible exhaust bellows 1 set.

4. Shock absorption rubbers 6 pcs.

5. The tool kit and manuals 1 set (English version).
