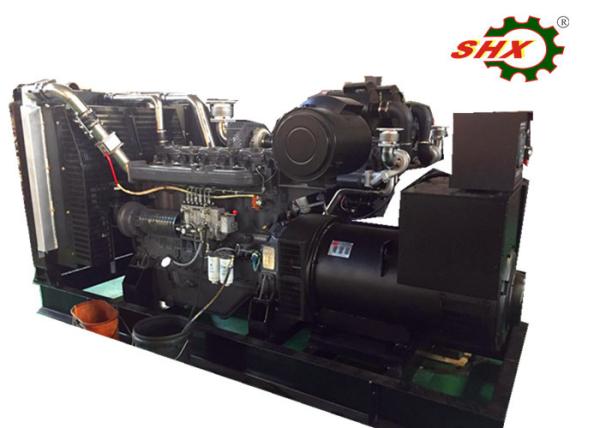

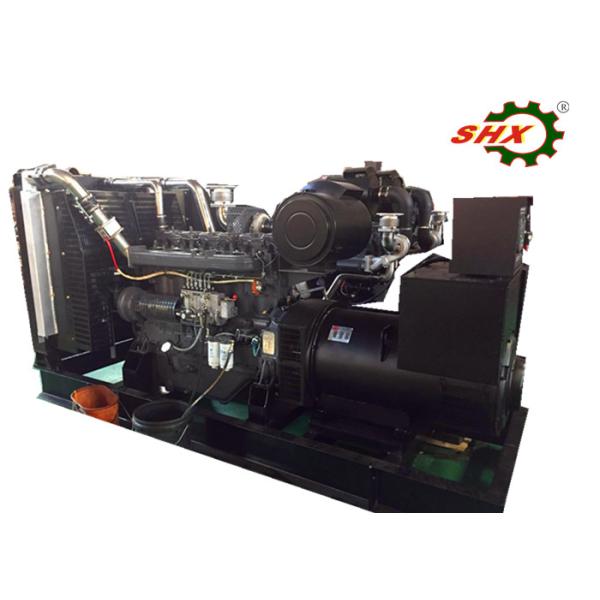

3 Phase 50Hz China Commercial Backup Generator Set 400KW / 500KVA 1500Rpm
3 Phase 50Hz China Commercial Backup Generator Set 400KW / 500KVA 1500Rpm
Specifications
Brand Name :
SHX
Model Number :
SSF500
Certification :
ISO9001:2015, CE, TUV , BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
100% L/C At Sight , T/T
Supply Ability :
80 sets per month
Delivery Time :
20 working days
Packaging Details :
Standard export packing
Cooling Method :
Water cooled
Starting Method :
Electrical
Aspiration :
Turbocharged and air-to-air intercooled
Control Panel :
Smartgen HGM6110N
Voltage :
400KW
Phase Type :
Three Phase
Description

3 Phase 50Hz China Diesel Generator Set 400KW / 500KVA 1500Rpm Commerical Generators​

Voltage

  1. Frequency at 50Hz: Available in 400/230Volts, 415/240Volts, 380/220Volts, 220/127Volts, and 200/115Volts.
  2. Frequency at 60Hz: Available in 480/227Volts, 440/254Volts, 220/117Volts, and 208/120Volts.

Genset Specifications:

Genset model SSF500
Genset rated power 400KW/500KVA
Rated voltage 400/230V (adjustable)
Rated current 720 Amps
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 3600×1500×2000
Gross weight (kg) 3600

Engine Specifications:

Diesel Engine
Brand SHANGCHAI
Model SC25G610D2
Engine type 12 cylinders in Vee, 4 stroke, direct injection
Aspiration Turbocharged and air-to-air intercooled
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 25.8
Bore×Stroke(mm) 135×150
Noise level (dB) 118
100% Load fuel consumption (l/h) ≤95.1
Lube capacity(L) 65

Alternator Specifications:

Alternator
Brand FARADAY
Model FD5M1-4
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP23

Manufacturing Standards:

ISO8528; ISO1105; ISO3046; GB/T2820; GB755; BS5000; NEMAMG-22; YD/T502

Electrical Parameters


Wave distortion: <10%
Voltage fluctuation: <0.5%
Voltage / frequency fluctuation: <=0.5%
AVR self-regulated, voltage regulation rate: <=+- 1%
Radio interference restraining accords with stipulation of VDE0875-N and ISO8528

Special Type Generator Set


1. Acoustic Enclosure Generator Set.
2. Containerized Generator Set.
3. Trailer-Mounted Generator Set.
4. Mobile Generator Set (Truck Mounted).

3 Phase 50Hz China Commercial Backup Generator Set 400KW / 500KVA 1500Rpm
