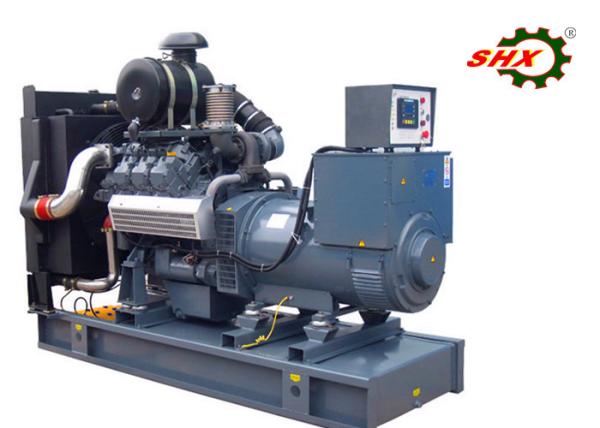

360kw Deutz Diesel Generator 400v Rated Voltage 50/60Hz 3 Phase Diesel Driven Generator
360kw Deutz Diesel Generator 400v Rated Voltage 50/60Hz 3 Phase Diesel Driven Generator
Specifications
Brand Name :
SHX
Model Number :
SDF495
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30 Sets per month
Delivery Time :
20 working days
Packaging Details :
Standard export packing
Product Name :
360kw Deutz Generator
Insulation Grade :
Class H
Protection Grade :
IP23
Engine :
Deutz BF8M1015C-LA G2
Alternator brand :
Faraday
Control Mode :
Auto/manual
Description

360kw Deutz Diesel Genset 400v Rated Voltage 50/60Hz, 3 Phase Commercial Generators

General Data:

1. Prime power: 360KW / 450KVA, standby power 396KW / 495KVA
2. Engine brand: Deutz
3. Alternator: Stamford
4. Water-cooled
5. Manual start / auto start
7. Soundproof canopy is optional
8. 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output


Genset Specifications:

Genset model SPS165
Genset rated power 360KW / 450KVA
Rated voltage 400/230V (adjustable)
Rated current 640Amps
Frequency 50 Hz / 60 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 3208×1515×1975
Gross weight (kg) 2870

Engine Specifications:

Diesel Engine
Brand DEUTZ
Model BF8M1015C-LA G2
Engine type 8 cylinders in Vee, 4 stroke, direct injection
Aspiration Turbocharged and intercooled
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Fuel injection system Electronic
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 15.88
Bore×Stroke(mm) 132×145
Compression ratio 16:1
100% Load fuel consumption (l/h) ≤196
Lube capacity(L) 48

Alternator Specifications:

Alternator
Brand STAMFORD
Model UCI544C
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP23

INSPECTION AND TEST

1.1 Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.

1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.

1.3 The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment rejected shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.

1.4 Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers satisfaction at the manufacturers cost.

1.5 The engine and generator shall be tested individually in accordance with relevant standards specified above.

1.6 The completed and individually tested engine and generator shall be assembled onto the base plate with all auxiliaries, instruments and controls for a complete test of the generator set.
