Mobile Trailer Mounted Generator 40KW / 50KVA With Silent Canopy And Fuel Tank
Mobile Trailer Mounted Generator 40KW / 50KVA With Silent Canopy And Fuel Tank
Mobile Trailer Mounted Generator 40KW / 50KVA With Silent Canopy And Fuel Tank
Mobile Trailer Mounted Generator 40KW / 50KVA With Silent Canopy And Fuel Tank
Specifications
Brand Name :
SHX
Model Number :
SCF50
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets per month
Delivery Time :
10 working days
Packaging Details :
Standard export packing
Product name :
50KVA Trailer Generator
Color :
Red
Frequency :
50Hz
Running Speed :
1500RPM
Fuel Type :
Diesel
Engine brand :
Cummins
Alternator brand :
Faraday
Control mode :
Manual/auto
Description

Mobile Trailer Mounted Generator 40KW / 50KVA With Silent Canopy And Fuel Tank

Benefits

  1. Function stability credibility service convenience
  2. Low operating cost results in optional economy.
  3. Gets the job done wherever you are
  4. Easy for installation, operation and maintenance.

Genset Specifications:

Genset model SCF50
Genset rated power 40KW/50KVA
Rated voltage 230/400V (adjustable)
Rated current 72 Amps
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 3150×1500×1750
Gross weight (kg) 1500

Engine Specifications:

Diesel Engine
Brand DCEC CUMMINS
Model 4BTA3.9-G2
Engine structure 4 cylinders vertical in line,4 stroke, turbocharged
Rotating speed 1500 RPM
Engine cooling method Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 3.9
Bore×Stroke(mm) 102×120
Compression ratio 16.5: 1
100% Load fuel consumption (litre/h) ≤10.2
Lube capacity(L) 11

Alternator Specifications:

Alternator
Brand FARADAY
Model FD2B1-4
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP23

General Features

  • Every generator set is subjected to a comprehensive test program which includes 25% load, 50% load, 75% load, 100% load, 110% load and the checking, proving of all control and safety shut-down function.
  • Equipped with battery charger and 12 or 24V high performance maintenance-free lead-acid starting batteries and connecting with cables.
  • Equipped with industrial silencer and flexible exhaust hose.
  • Equipped with 8-hours operation base tank.
  • Equipped with CHNT MCCB circuit breaker
  • Designed to comply with ISO 8528/GB2820.
  • Powered by Cummins engine and coupled with Stamford alternator.

SHX Soundproof Generator Set Features:
A new kind of acoustic material is used as pugging, noise reducing return-flow wind tunnel is used as generator set's ventilation system, and louver is installed in the window to prevent rains and other intruders. High efficiency silencer with double level structure and another silencer between two levels keep the noise at the lowest level. The box is modular structure with indicator and maintenance doors which make installation, operation and maintenance very convenient. Benefited from the special design, medium low noise diesel generator set's noise can be as low as 70dB (A) (at LP7m). Fuel tank can be installed on it according to customer needs.

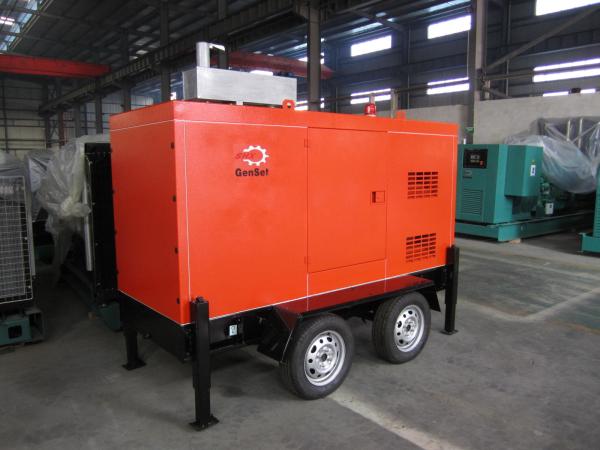

Picture Show:

Mobile Trailer Mounted Generator 40KW / 50KVA With Silent Canopy And Fuel Tank
