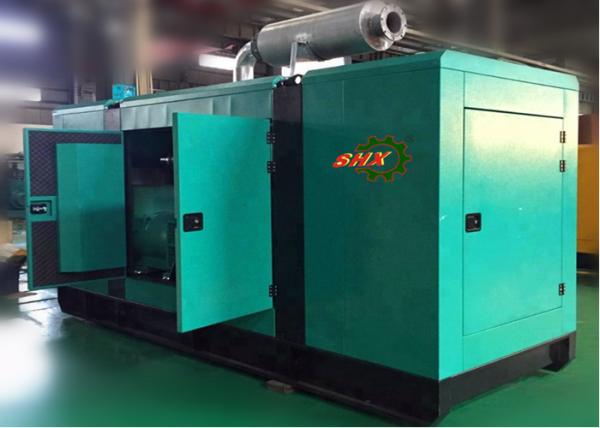

1800Rpm Silent Diesel Generator 400kva AC 3 Phase Output 230 / 400V Rated Voltage Waterproof
1800Rpm Silent Diesel Generator 400kva AC 3 Phase Output 230 / 400V Rated Voltage Waterproof
Specifications
Brand Name :
SHX
Model Number :
SCS275A
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, 100% L/C at sight
Supply Ability :
1000 sets/Month
Delivery Time :
10-25 Working Days. Depends on Quantity Request
Packaging Details :
Plastic Film or Wooden Box . Depends on Customer Requests
Rate voltage :
220/380V,230/400V,110/220V (Adjustable)
Frequency :
50/60Hz
Speed :
1500/1800Rpm
Contecting Type :
3 Phase 4 Pole
Air Intake :
Turbo charged
Cooling System :
Closed Cycle Water Cooling
Starting :
By Batteries
Insulation :
Class H
Engine :
Cummins NTAA855-G7A (Optional )
Alternator :
Stamford HCI444F (Optional )
Alternator Type :
Brushless
Warranty :
1 Year or 1000 Running Hours (Negotiable)
Description

Quiet Diesel Generator 400kva AC 3 Phase Output 230/400V Rated Voltage Waterproof


TECHNICAL DATA

Genset Power Capacity
(kw/kva)		 Prime 320/400
Standby 352/440
Rated Voltage Volt 400/230
Rated Current Amp 576
Rated Frequency Hz 50/60
Rated Speed RPM 1500/1800
Power Factor / Phase Cos0.8 Lagging, 3 phase
Cooling System Closed cycle water-cooled with fan,water tank
Overall Dimension (open type) (L×W×H)mm 3150*1150*1750
Gross Weight kg 3700
Overall Dimension (soundproof) (L×W×H)mm 4200*1300*2000
Gross Weight kg 4500
Engine Brand DCEC CUMMINS
Diesel
Engine		 Engine Model No. NTAA855-G7A
Rated Power kw 380
Engine Structure 6 cylinders vertical in-line,4 stroke,turbo charged, direct injection
Bore×Stroke mm 140*152
Compression Ratio 14.0:1
Displacement litre 14
Lube Capacity litre 36
Fuel System high pressure fuel injection pump
Fuel Consumption g/kw.h 201
Lube Consumption g/kw.h 0.5%
Rotating Speed RPM 1500/1800
Speed Governing electronic
Starting Mode By 24V batteries
Alternator Brand Stamford or Marathon, Leroy-Somer, Stamford Copy
Alternator Alternator Model No. HCI444F
Features Brushless, self-excitation, AVR regulation,
IP23 protection grade
Insulation Class Class H
Steady Voltage Regulation ≤±1%
Instant Voltage Ragulation -15%~+20%
Voltage Regulation Scope >10%
Power Factor 0.8 Lagging
Connection Type 3 phase 4 wire,Y type
Controller Model No. Smartgen HGM6110


QUALITY CONTROL & WARRANTY

All generator sets should go through the rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection functions (overspeed stop, high water temperature, low oil pressure and battery charging fail)
Our factory warrants that the gensets will be free from defects in materials and workmanship for a period of one year from the date of shipment or 1200 hours, whichever comes first. If the product proves defective during the warranty period,our factory, at its option, will:
(1) repair the product by means of telephone support or depot service at no charge for parts or labor,
(2) provide the new spare parts to replace the broken one for maintenance.


PACKAGING & SHIPMENT

1.LCL shippment: we apply plywood case packing which is durable for ocean transport.
2.FCL shippment: we use PE film which is lighter and cost-saving for packing inside the container, and use steel wires to fix the generators in the container.

1800Rpm Silent Diesel Generator 400kva AC 3 Phase Output 230 / 400V Rated Voltage Waterproof
