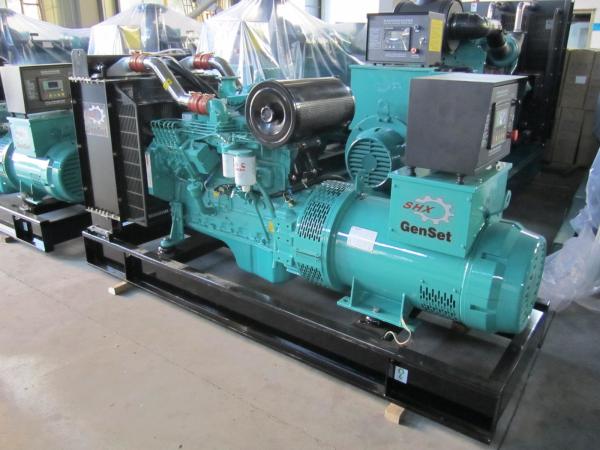

Open Diesel Generator 110KW / 138KVA Commercial Generator 50Hz / 60Hz Generator
Open Diesel Generator 110KW / 138KVA Commercial Generator 50Hz / 60Hz Generator
Open Diesel Generator 110KW / 138KVA Commercial Generator 50Hz / 60Hz Generator
Open Diesel Generator 110KW / 138KVA Commercial Generator 50Hz / 60Hz Generator
Specifications
Brand Name :
SHX
Model Number :
SCE138
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
80 Sets per month
Delivery Time :
15 working days
Packaging Details :
Standard export packing
Product Name :
138KVA Cummins Generator
Color :
Green
Cooling method :
Water cooled
Speed governing :
Electronic
Alternator Material :
100% Copper Wire
Engine brand :
Cummins
Alternator brand :
Engga
Control Panel :
Smartgen HGM6110N
Description

Open Diesel Generator 110KW / 138KVA Cummins 6BTAA5.9-G2 Standby Diesel Generator Set

Generator Set Information:

Product Name 138KVA Diesel Genset Model SCE138
Rated Power 110KW / 138KVA Standby Power 120KW / 150KVA
Engine Brand CUMMINS Alternator Brand FARADAY
Voltage 400/230V Current 198A
Frequency 50Hz Running Speed 1500RPM
Phase 3 Power Factor 0.8

Engine Specifications:

Diesel Engine
Brand DCEC CUMMINS
Model 6BTAA5.9-G2
Engine type 6 cylinders in Line,4 stroke, direct injection
Aspiration Turbocharged and air-to-air intercooled
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 5.9
Bore×Stroke(mm) 102×120
Compression ratio 17.5:1
100% Load fuel consumption (l/h) ≤26.9
Lube capacity(L) 16.4

Alternator Specifications:

Alternator
Brand ENGGA
Model EG225-120N
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP21

Manufacturing Standards:

ISO8528; ISO1105; ISO3046; GB/T2820; GB755; BS5000; NEMAMG-22; YD/T502

Electrical Parameters


Wave distortion: <10%
Voltage fluctuation: <0.5%
Voltage / frequency fluctuation: <=0.5%
AVR self-regulated, voltage regulation rate: <=+- 1%
Radio interference restraining accords with stipulation of VDE0875-N and ISO8528


Control Function


Key start / auto start
Monitoring meters: Current; Frequency; Wire Voltage; Genset KVA; Genset KW; Output
Capacity; Output KW.H; Power Factor.
Warning/Shutdown: Alternator Under/Over Volts, Frequency; Under/Over Speed; Low Oil Pressure; High Engine Temp; High/Low Battery Volts; Over Current; Earth Fault Shutdown.

Voltage

  1. Frequency at 50Hz: Available in 400/230Volts, 415/240Volts, 380/220Volts, 220/127Volts, and 200/115Volts.
  2. Frequency at 60Hz: Available in 480/227Volts, 440/254Volts, 220/117Volts, and 208/120Volts.

Special Type Generator Set


1. Acoustic Enclosure Generator Set.
2. Containerized Generator Set.
3. Trailer-Mounted Generator Set.
4. Mobile Generator Set (Truck Mounted).

Sunkings’ Guarantee for SHX Series Generators


1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.

Open Diesel Generator 110KW / 138KVA Commercial Generator 50Hz / 60Hz Generator

110KW / 138KVA open diesel generator, power generator
