313KVA / 250KW Open Diesel Generator Cummins Water Cooled Diesel Generator 50Hz
313KVA / 250KW Open Diesel Generator Cummins Water Cooled Diesel Generator 50Hz
313KVA / 250KW Open Diesel Generator Cummins Water Cooled Diesel Generator 50Hz
313KVA / 250KW Open Diesel Generator Cummins Water Cooled Diesel Generator 50Hz
Specifications
Brand Name :
SHX
Model Number :
SCE313A
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
60 Sets per month
Delivery Time :
15 working days
Packaging Details :
Standard export packing
Product type :
Open skid
Color :
Green
Cooling method :
Water cooled
Speed governing :
Electronic
Starting method :
Electrical start by 24V batteries
Engine brand :
Cummins
Alternator brand :
Engga
Control mode :
Manual/auto
Description

313KVA / 250KW Open Diesel Generator Cummins NTA855-G1A 50Hz Diesel Genset

Technical Specifications:

Genset model SCE313A
Genset rated power 250KW/313KVA
Rated voltage 400/230V (adjustable)
Rated current 450 Amps
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 3000×1000×1750
Gross weight (kg) 3100
Diesel Engine
Brand CCEC CUMMINS
Model NTA855-G1A
Engine type 6 cylinders in Line,4 stroke, direct injection
Aspiration Turbocharged and water-to-air aftercooled
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 14
Bore×Stroke(mm) 140×152
Compression ratio 14.5: 1
100% Load fuel consumption (l/h) ≤47.3
Lube capacity(L) 36
Alternator
Brand ENGGA
Model EG280-250N
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP21

Manufacturing Standards:

ISO8528; ISO1105; ISO3046; GB/T2820; GB755; BS5000; NEMAMG-22; YD/T502

Electrical Parameters


Wave distortion: <10%
Voltage fluctuation: <0.5%
Voltage / frequency fluctuation: <=0.5%
AVR self-regulated, voltage regulation rate: <=+- 1%
Radio interference restraining accords with stipulation of VDE0875-N and ISO8528

Control Function


Key start / auto start
Monitoring meters: Current; Frequency; Wire Voltage; Genset KVA; Genset KW; Output
Capacity; Output KW.H; Power Factor.
Warning/Shutdown: Alternator Under/Over Volts, Frequency; Under/Over Speed; Low Oil Pressure; High Engine Temp; High/Low Battery Volts; Over Current; Earth Fault Shutdown.

Voltage

  1. Frequency at 50Hz: Available in 400/230Volts, 415/240Volts, 380/220Volts, 220/127Volts, and 200/115Volts.
  2. Frequency at 60Hz: Available in 480/227Volts, 440/254Volts, 220/117Volts, 208/120Volts.

Special Type Generator Set


1. Acoustic Enclosure Generator Set
2. Containerized Generator Set
3. Trailer-Mounted Generator Set
4. Mobile Generator Set (Truck Mounted)

Guarantee for SHX Series Generators


1. Guarantee Period: One year or 1000hours whichever comes first.
2. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3. Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4. 24 hours service hotline is available for customers.

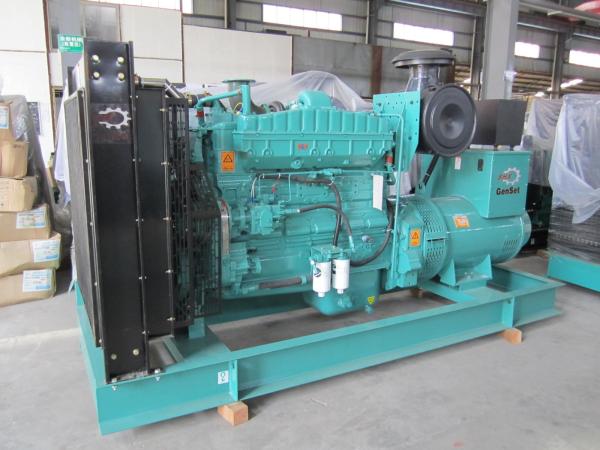

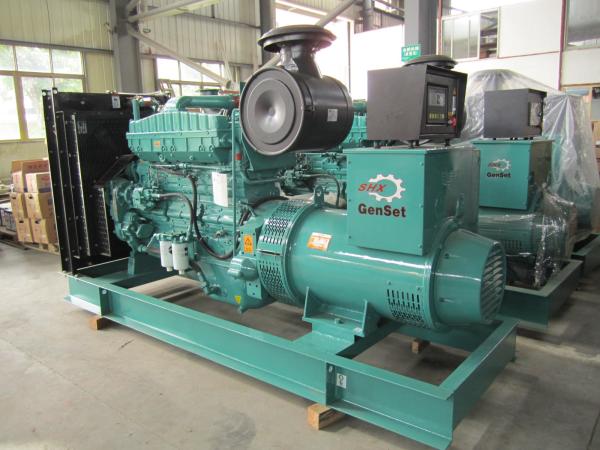

Picture show:

313KVA / 250KW Open Diesel Generator Cummins Water Cooled Diesel Generator 50Hz
