Specifications
Brand Name :
SHX
Model Number :
SCE200
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
80 Sets per month
Delivery Time :
15 working days
Packaging Details :
Standard export packing
Product Name :
200KVA Power Generator
Color :
Green
Cylinder No. :
6L
Application :
Industrial Use
Base Frame Material :
Heavy Duty Steel Channel
Engine brand :
Cummins
Alternator brand :
Engga
Control Mode :
Manual/auto
Description

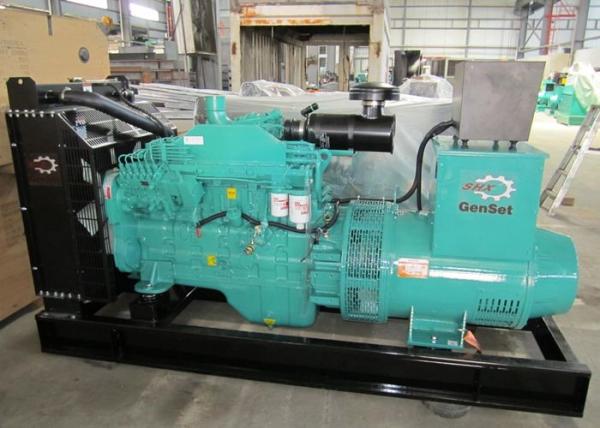

Water Cooled 200Kva Diesel Generator Cummins Power 6CTA8.3-G2

The Components Of Genset:

  1. Diesel engine
  2. Alternator
  3. Water tank and radiator assembly
  4. Control panel
  5. Base frame

Genset Specifications:

Genset model SCE200
Genset rated power 160KW/200KVA
Rated voltage 400/230V (adjustable)
Rated current 288 Amps
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 2400×850×1400
Gross weight (kg) 1500

Engine Specifications:

Diesel Engine
Brand DCEC CUMMINS
Model 6CTA8.3-G2
Engine type 6 cylinders in Line,4 stroke, direct injection
Aspiration Turbocharged and water-to-air intercooled
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 8.3
Bore×Stroke(mm) 114×135
Compression ratio 17.3:1
100% Load fuel consumption (l/h) ≤39.5
Lube capacity(L) 23.8

Alternator Specifications:

Alternator
Brand ENGGA
Model EG280-160N
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP21

OEM Service:

  1. Unique design and manufacture of generator according to customers requirement.
  2. Customer logo printing or painting on the genset.
  3. Installation and Operation manual neutral or headings can be design according to customer requirement.
  4. Full warranty cover to support the customers.

Guarantee For SHX Series Generators:

  • Guarantee Period: One year or 1000hours whichever comes first.
  • During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  • Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
  • 24 hours service hotline is available for customers.

Introduction of Sunkings Electric Co., Ltd

Sunkings Electric Co., Ltd has more than a decades experience in manufacturing and maintenance of generator sets. We mainly manufacture Cummins, Deutz and Perkins powered gensets which are all made in China keeps the genset cost much lower than the US or EU or the Japan cost, since the design and all the materials are the same with original factories, the quality remains the almost the same as the original factories.

Invitation to visit our factory

  1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
  2. Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou, and 35 minutes away from Canton fair.
  3. When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
  4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
