Three Phase Diesel Generator 1250Kva With Cummins Engine And Marathon Alternator
Three Phase Diesel Generator 1250Kva With Cummins Engine And Marathon Alternator
Specifications
Brand Name :
SHX
Model Number :
SCM1250
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30 Sets per month
Delivery Time :
20 working days
Packaging Details :
Standard export packing
Product Name :
1250KVA Diesel Genset
Color :
Green
Cooling Type :
Cycle Water Cooled With Radiator
Frequency :
50Hz
Running Speed :
1500RPM
Engine brand :
Cummins
Alternator brand :
Marathon
Control Panel :
Smartgen / Deepsea
Description

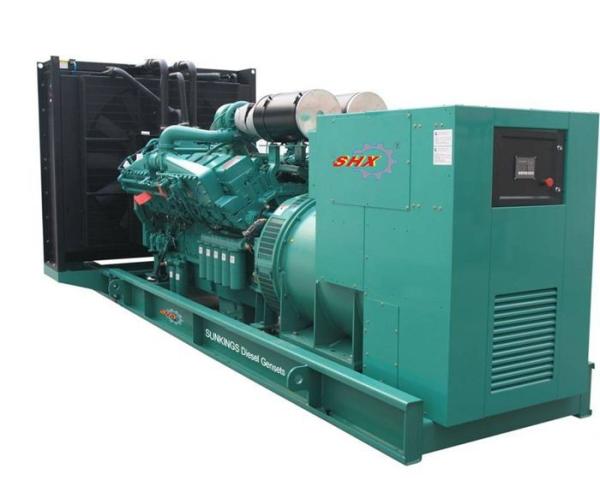

Three Phase Diesel Generator 1250Kva With Cummins Engine And Marathon Alternator

Product Description

Cummins Diesel Generator Set is a set of complete equipment for electrical power supply. Cummins engines, high quality alternators and advanced full automatically control system are produced through strict test, which together provides reliable power no matter as standby, prime or continuous use.

Genset Specifications:

Genset model SCM1250
Genset rated power 1000KW / 1250KVA
Rated voltage 400/230V (adjustable)
Rated current 1800 Amps
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 5800×2280×2500
Gross weight (kg) 11040

Engine Specifications:

Diesel Engine
Brand CUMMINS
Model KTA50-G3
Engine type 16 cylinders in Vee,4 stroke, air-to-air after-cooled
Aspiration Turbocharged
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 50.3
Bore×Stroke(mm) 159×159
Compression ratio 13.9: 1
100% Load fuel consumption (l/h) ≤234.1
Lube capacity(L) 151

Alternator Specifications:

Alternator
Brand Marathon
Model MX-1030-4
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP21
Altitude ≤1000m
Exciter Type Brushless ,Self-excited, AVR automatic voltage regulation
Insulation Class H
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%

Control System

AMF Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.

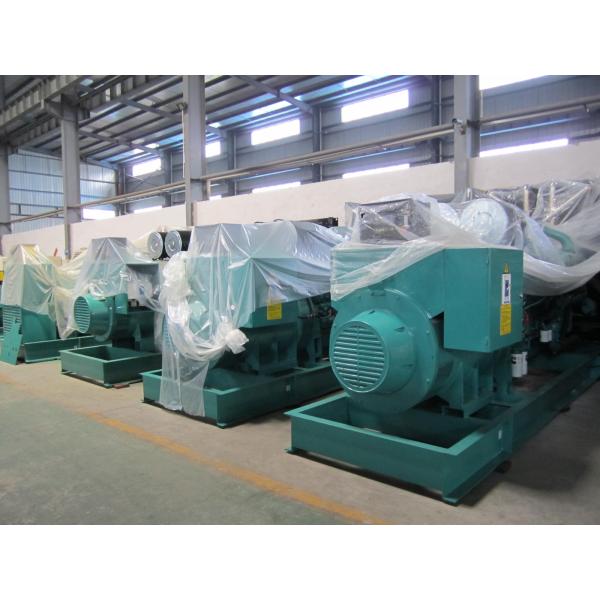

Picture show:


Three Phase Diesel Generator 1250Kva With Cummins Engine And Marathon Alternator
