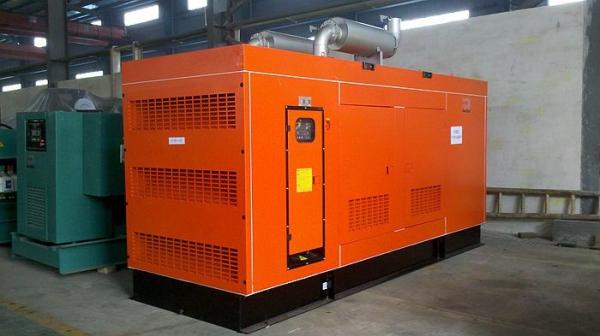

3 Phase Soundproof Commercial Diesel Power Generator Set 400/230V 50Hz
3 Phase Soundproof Commercial Diesel Power Generator Set 400/230V 50Hz
Specifications
Brand Name :
SHX
Model Number :
SSF500
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
80 sets per month
Delivery Time :
15 working days
Packaging Details :
Standard export packing
Product Name :
500KVA Soundproof Genset
Color :
Red
Cylinder No. :
12V
Cooling Type :
Water Cooled
Aspiration :
Turbocharged and air-to-air intercooled
Engine Brand :
Shangchai
Alternator Brand :
Faraday
Control Panel :
Smartgen HGM6110N
Description

400/230V 50Hz 3 Phase Soundproof Diesel Generators 500KVA Commercial Generator


Genset Specifications:

Genset model SSF500
Genset rated power 400KW/500KVA
Rated voltage 400/230V (adjustable)
Rated current 720 Amps
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 4500×1800×2200
Gross weight (kg) 4600

Engine Specifications:

Diesel Engine
Brand SHANGCHAI
Model SC25G610D2
Engine type 12 cylinders in Vee, 4 stroke, direct injection
Aspiration Turbocharged and air-to-air intercooled
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 25.8
Bore×Stroke(mm) 135×150
Noise level (dB) 118
100% Load fuel consumption (l/h) ≤95.1
Lube capacity(L) 65

Alternator Specifications:

Alternator
Brand FARADAY
Model FD5M1-4
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP23

Basic components of Generator Set:

　 　 　 　 　

1. Diesel engine with 3 filters.

2. AC synchronous generator.

3. Water tank & radiator assembly.

4. The cooling fan and fan guard.

5. Heavy duty steel channel base frame.

6. Genset control system.

7. Genset circuit breaker.

8. 24V DC starting motor and charging alternator.

9. Vibration-damping supports between engine/alternator and the base frame.

10. Base fuel tank for 8 hours operation (soundproof type).

Standard accessory list

　 　 　 　 　

1. Fuel connecting pipes 1 set.

2. 12V DC dry type battery c/w battery cables 2 sets.

3. Industrial type silencer c/w stainless steel flexible exhaust bellows 1 set.

4. Shock absorption rubbers 6 pcs.

5. The tool kit and manuals 1 set (English version).

Operating conditions of generator set:

　 　 　 　

1. Altitude: ≤1500 m.

2. Ambient Temperature: -15℃~50℃.

3. Relative air humidity: ≤90%.

4. The site can't has electric conduction dust and corrosive gas that destroies metal insulation.

5. The site can't has explosion danger.

Introduction of Sunkings Electric Co., Ltd

Sunkings Electric Co., Ltd has more than a decades experience in manufacturing and maintenance of generator sets. We mainly manufacture Cummins, Deutz and Perkins powered gensets which are all made in China keeps the genset cost much lower than the US or EU or the Japan cost, since the design and all the materials are the same with original factories, the quality remains the almost the same as the original factories.
