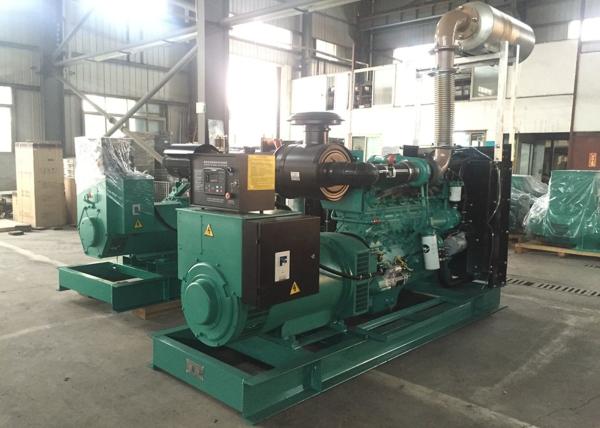

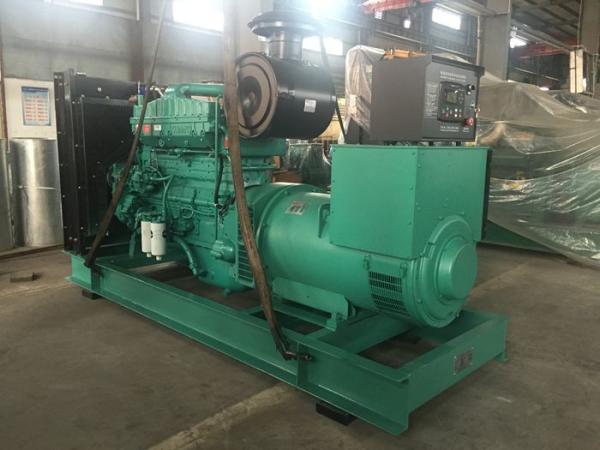

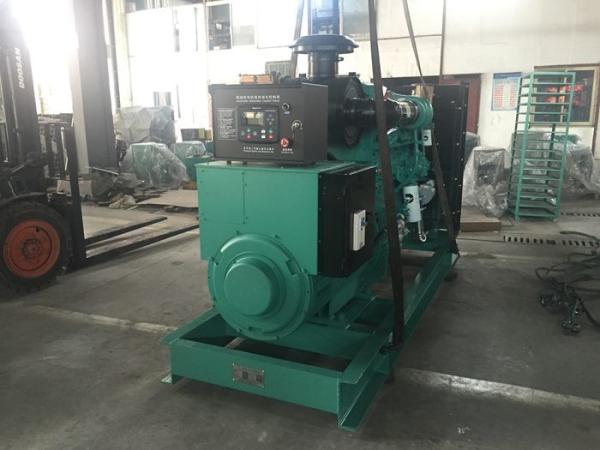

Diesel Power Generator Set 375KVA 3 Phase With Cummins Engine NTAA855-G7
Diesel Power Generator Set 375KVA 3 Phase With Cummins Engine NTAA855-G7
Diesel Power Generator Set 375KVA 3 Phase With Cummins Engine NTAA855-G7
Diesel Power Generator Set 375KVA 3 Phase With Cummins Engine NTAA855-G7
Diesel Power Generator Set 375KVA 3 Phase With Cummins Engine NTAA855-G7
Diesel Power Generator Set 375KVA 3 Phase With Cummins Engine NTAA855-G7
Specifications
Brand Name :
SHX
Model Number :
SCF413
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
60 Sets per month
Delivery Time :
20 working days
Packaging Details :
Standard export packing
Product Name :
375KVA Cummins Genset
Color :
Green
Frequency :
50Hz
Running Speed :
1500RPM
Alternator type :
Brushless
Engine brand :
Cummins
Alternator brand :
Faraday
Control panel :
Smartgen/Deepsea
Description

300KW / 375 KVA Continuous Duty Diesel Generator With Cummins Engine NTAA855-G7

Generator Information:

Product Name 375KVA Diesel Genset Model SCF413
Rated Power 300KW / 375KVA Standby Power 330KW / 413KVA
Engine Brand Cummins Alternator Brand Faraday
Voltage 400/230V Current 540A
Frequency 50Hz Running Speed 1500RPM
Phase 3 Power Factor 0.8
Dimension 3150×1150×1750 mm Weight 3300 KG

Engine Specifications:

Diesel Engine
Brand CCEC CUMMINS
Model NTAA855-G7
Engine type 6 cylinders in Line,4 stroke, direct injection
Aspiration Turbocharged and air-to-air intercooled
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 14
Bore×Stroke(mm) 140×152
Noise level (dB) 105
100% Load fuel consumption (l/h) ≤70.9
Lube capacity(L) 36

Alternator Specifications:

Alternator
Brand FARADAY
Model FD4L1-4
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP23

Electrical Parameters


Wave distortion: <10%
Voltage fluctuation: <0.5%
Voltage / frequency fluctuation: <=0.5%
AVR self-regulated, voltage regulation rate: <=+- 1%
Radio interference restraining accords with stipulation of VDE0875-N and ISO8528


Control Function


Key start / auto start
Monitoring meters: Current; Frequency; Wire Voltage; Genset KVA; Genset KW; Output Capacity; Output KW.H; Power Factor.
Warning/Shutdown: Alternator Under/Over Volts, Frequency; Under/Over Speed; Low Oil Pressure; High Engine Temp; High/Low Battery Volts; Over Current; Earth Fault Shutdown.

Operating conditions of generator set:

　 　 　 　

1. Altitude: ≤1500 m.

2. Ambient Temperature: -15℃~50℃.

3. Relative air humidity: ≤90%.

4. The site can't has electric conduction dust and corrosive gas that destroies metal insulation.

5. The site can't has explosion danger.

OEM Service:

  1. Unique design and manufacture of generator according to customers requirement.
  2. Customer logo printing or painting on the genset.
  3. Installation and Operation manual neutral or headings can be design according to customer requirement.
  4. Full warranty cover to support the customers.

Guarantee For SHX Series Generators:

  • Guarantee Period: One year or 1000hours whichever comes first.
  • During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  • Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
  • 24 hours service hotline is available for customers.
