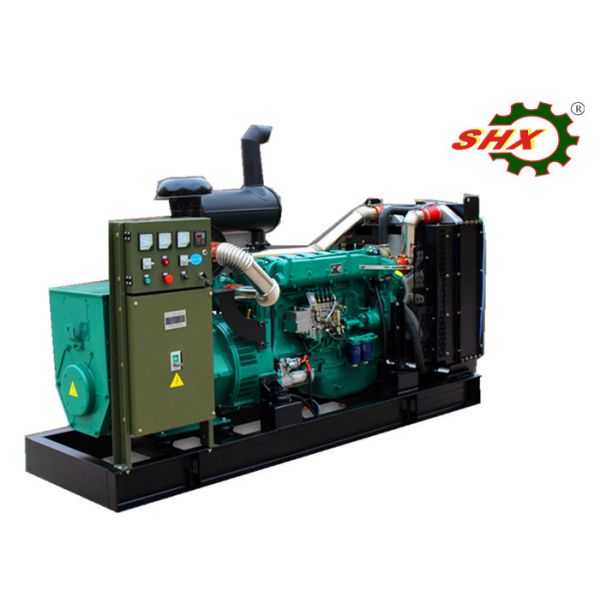

225KVA Biogas Commercial Natural Gas Generator 1500Rpm 50Hz Backup Genset
225KVA Biogas Commercial Natural Gas Generator 1500Rpm 50Hz Backup Genset
Specifications
Brand Name :
SHX
Model Number :
SWG83
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T , 100%L/C at sight
Supply Ability :
100sets/Month
Delivery Time :
10-25 Working Days. Depends on Quantity Request
Packaging Details :
Plastic Film or Wooden Box . Depends on Customer Requests
Rate voltage :
400/230V (Adjustable)
Frequency :
50/60Hz
Contecting Type :
3 Phase 4 Pole
Air Intake :
Turbocharged
Power Factor :
0.8 Lagging
Starting :
By Batteries
Insulation :
Class H
Warranty :
1 Year or 1000 Running Hours (Negotiable)
Description

225KVA Biogas Generator Set 400V Voltage AC Three Phase 1500Rpm 50Hz


TECHNICAL DATA

Genset model SWG247
Genset rated power 180KW / 225KVA
Rated voltage 400/230V (adjustable)
Rated current 324 Amps
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 2700×1000×1500
Gross weight (kg) 2500

Diesel Engine
Brand WEICHAI
Model WP12D238E200NG
Engine type 6 cylinders in Line, 4 stroke, direct injection
Aspiration Turbocharged and air-to-air intercooled
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 11.596
Bore×Stroke(mm) 126×155
Compression ratio 11.6:1
Ignition Order 1-5-3-6-2-4

Alternator
Brand FARADAY
Model FD3G1-4
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP23

FEATURES

1. Deutz technology platform ,WoodWard high reliability components and control strategy.
2. In-line, water-cooling, wet sleeve, electronically controlled pre- mixing, sparking plug ignition,electric starting.
3. Closed-loop control and intelligent feedback make the control more accurate.
4. lntelligent fault diagnosis,Engine safety and protection,Knock monitoring.


APPLIED GAS:

Natural Gas, Biogas, City Sewage Gas, Landfill gas, Oil gas, Farm biogas, Coal mine gas,etc
Acceptable fuel gas pressure: 5~12kPa
CH4 content: for natural gas≥85% CH4 ,content:for biogas≥40%
Gas heat value≥5500kcal/Nm3 (23MJ/Nm3 ). Gen set output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value<5500kcal/Nm3, it will lower the power efficiency.
Gas does't include free water or free materials (the size of impurities should be less than 5μm.)
H2S content≤200mg/NM³
NH3 content≤20mg/NM³
Impurities content≤30mg/NM³;size≤5μm
Water content≤40g/NM³, no free water.
