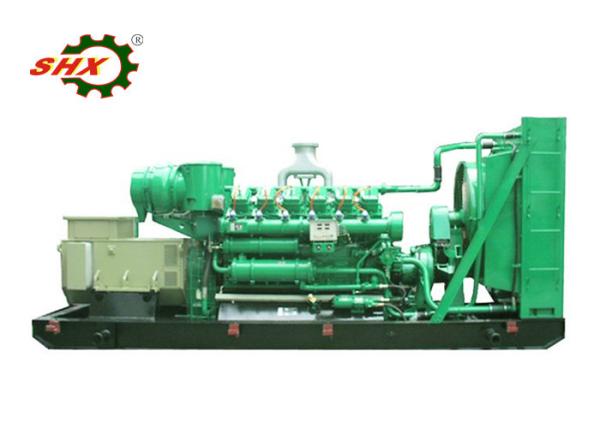

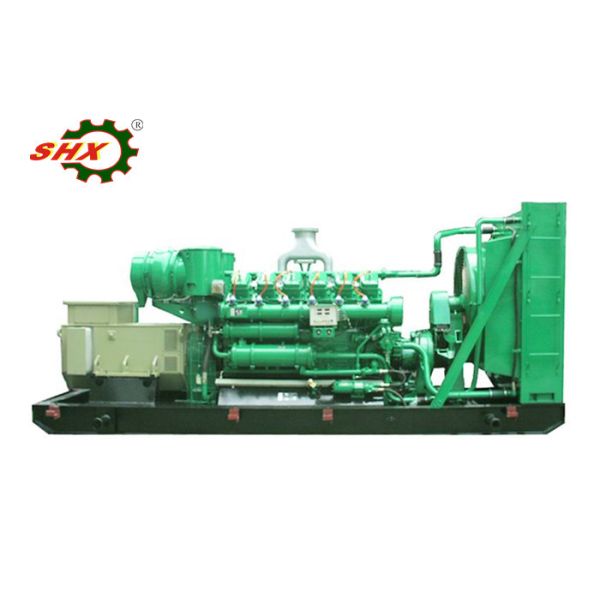

500KVA Industrial Natural Gas Standby Generator 1000Rpm 50Hz 3 Phase 4 Pole
500KVA Industrial Natural Gas Standby Generator 1000Rpm 50Hz 3 Phase 4 Pole
Specifications
Brand Name :
SHX
Model Number :
SWG550
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T , 100%L/C at sight
Supply Ability :
100sets/Month
Delivery Time :
10-25 Working Days. Depends on Quantity Request
Packaging Details :
Plastic Film or Wooden Box . Depends on Customer Requests
Rate voltage :
400/230V (Adjustable)
Frequency :
50/60Hz
Contecting Type :
3 Phase 4 Pole
Air Intake :
Turbocharged
Power Factor :
0.8 Lagging
Starting :
By Batteries
Insulation :
Class H
Warranty :
1 Year or 1000 Running Hours (Negotiable)
Rated Speed :
1000 Rpm
Description

500KVA Industrial Natural Gas Generators AC Three Phase 1500Rpm 50Hz Biogas Genset


TECHNICAL DATA

Genset model SWG550

Genset Rated Power

Genset Standby Power

400KW / 500KVA

440KW / 550KVA
Rated voltage 400/230V (adjustable)
Rated current 720 Amps
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 3300×1250×1800
Gross weight (kg) 4670

Diesel Engine
Brand WEICHAI
Model CW6200
Engine type 6 cylinders in Line, 4 stroke, direct injection
Aspiration Turbocharged and air-to-air intercooled
Rotating speed 1000 RPM
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 11.596
Bore×Stroke(mm) 200×270
Compression ratio 11.6:1
Ignition Order 1-5-3-6-2-4

Alternator
Brand FARADAY
Model FD5M1-4
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP23

FEATURES

1. Deutz technology platform ,WoodWard high reliability components and control strategy.
2. In-line, water-cooling, wet sleeve, electronically controlled pre- mixing, sparking plug ignition,electric starting.
3. Closed-loop control and intelligent feedback make the control more accurate.
4. lntelligent fault diagnosis,Engine safety and protection,Knock monitoring.


APPLIED GAS:

Natural Gas, Biogas, City Sewage Gas, Landfill gas, Oil gas, Farm biogas, Coal mine gas,etc
Acceptable fuel gas pressure: 5~12kPa
CH4 content: for natural gas≥85% CH4 ,content:for biogas≥40%
Gas heat value≥5500kcal/Nm3 (23MJ/Nm3 ). Gen set output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value<5500kcal/Nm3, it will lower the power efficiency.
Gas does't include free water or free materials (the size of impurities should be less than 5μm.)
H2S content≤200mg/NM³
NH3 content≤20mg/NM³
Impurities content≤30mg/NM³;size≤5μm
Water content≤40g/NM³, no free water.
