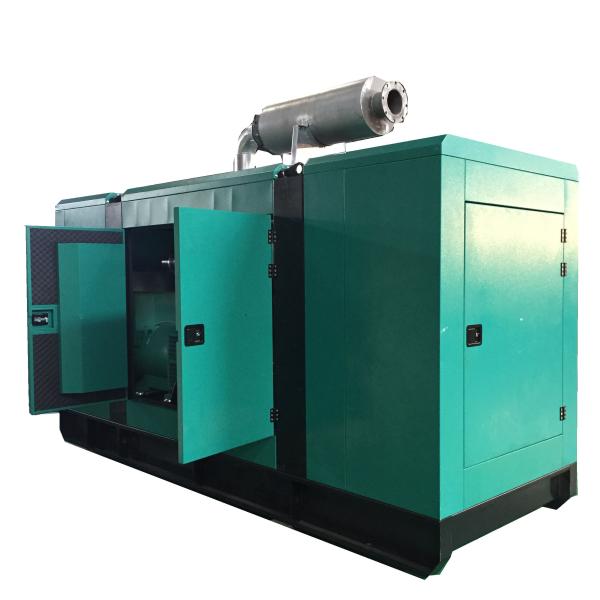

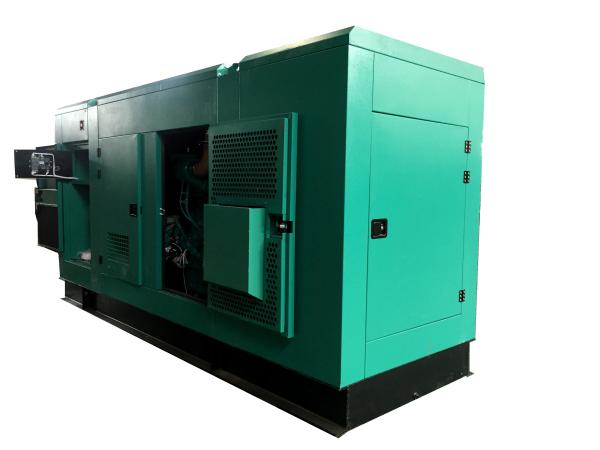

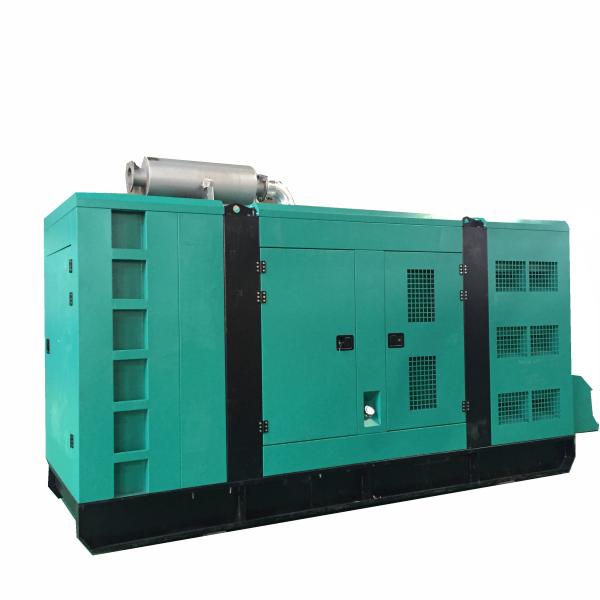

Standby Generator 250KW / 313KVA 50Hz 400V Cummins Power Generator
Standby Generator 250KW / 313KVA 50Hz 400V Cummins Power Generator
Standby Generator 250KW / 313KVA 50Hz 400V Cummins Power Generator
Standby Generator 250KW / 313KVA 50Hz 400V Cummins Power Generator
Standby Generator 250KW / 313KVA 50Hz 400V Cummins Power Generator
Standby Generator 250KW / 313KVA 50Hz 400V Cummins Power Generator
Specifications
Brand Name :
SHX
Model Number :
SCF344
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
80 Sets per month
Delivery Time :
20 working days
Packaging Details :
Standard export packing
Product name :
313KVA Cummins Generator
Color :
Green
Speed governing :
Electronic
Cooling type :
Water cooled
Protection grade :
IP23
Engine brand :
Cummins
Alternator brand :
Faraday
Control panel :
Smartgen HGM6110N
Description

Cummins Power Generator 250KW / 313KVA 50Hz 400V Generator Standby Generator

Generator Set Information:

1. Rated power 250KW / 313KVA, standby power 275KW / 313KVA
2. Engine: Cummins
3. Alternator: Faraday
4. Water-cooled
5. 8hrs operation base fuel tank
6. Automatic start
7. Sound-proof canopy
8. 400/230V AC, 50Hz, 0.8PF three-phase and four wires alternating current output

Genset Specifications:

Genset model SCF344
Genset rated power 250KW / 313KVA
Rated voltage 400/230V (adjustable)
Rated current 450 Amp
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 4200×1300×2000
Gross weight (kg) 3800

Engine Specifications:

Diesel Engine
Brand CCEC CUMMINS
Model NTA855-G1A
Engine structure 6 cylinders vertical in line,4 stroke, turbocharged
Rotating speed 1800 RPM
Engine cooling method Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 14
Bore×Stroke(mm) 140×152
Compression ratio 14.5: 1
100% Load fuel consumption (litre/h) ≤59.1
Lube capacity(L) 36

Alternator Specifications:

Alternator
Brand FARADAY
Model FD4M1-4
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP23

Control System

LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator sets.

SHX Silent Generator Set Features:

  1. A new kind of acoustic material is used as pugging, noise reducing return-flow wind tunnel is used as generator set's ventilation system.
  2. High efficiency silencer with double level structure and another silencer between two levels keep the noise at the lowest level.
  3. The box is modular structure with indicator and maintenance doors which make installation, operation and maintenance very convenient.
  4. Benefited from the special design,medium low noise diesel generator set's noise can be as low as 70dB (A) (at LP7m).
  5. Fuel tank can be installed on it according to customer needs.

OEM Service:

  1. Unique design and manufacture of generator according to customers requirement.
  2. Customer logo printing or painting on the genset.
  3. Installation and Operation manual neutral or headings can be design according to customer requirement.
  4. Full warranty cover to support the customers.

Standby Generator 250KW / 313KVA 50Hz 400V Cummins Power Generator
