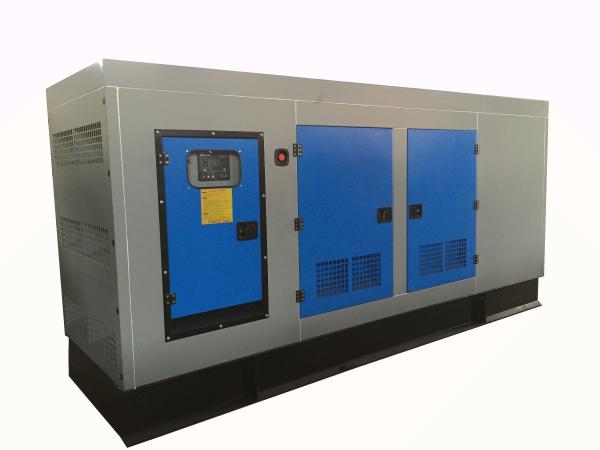

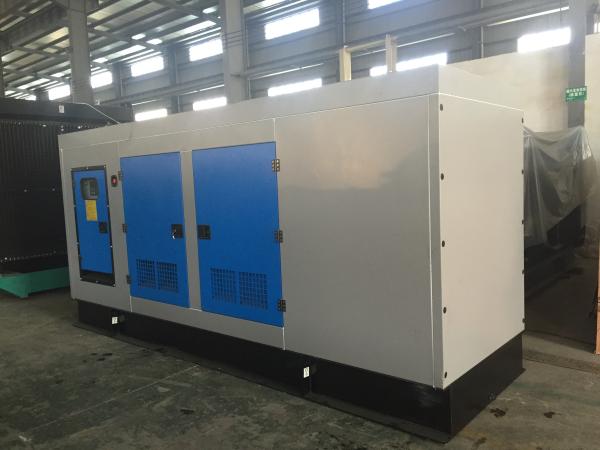

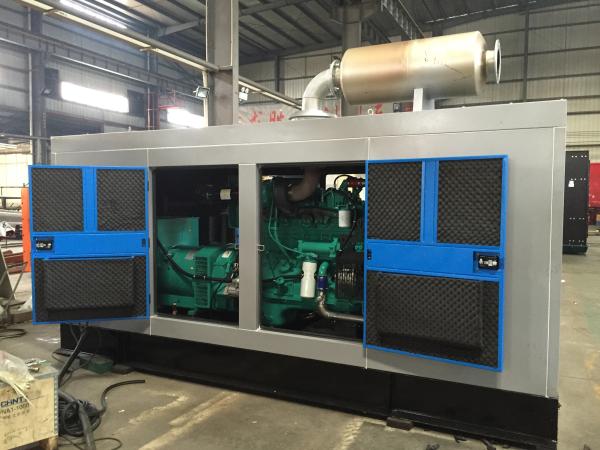

300KW / 375KVA 3 Phase Diesel Generator 50Hz / 60Hz Soundproof Generator
300KW / 375KVA 3 Phase Diesel Generator 50Hz / 60Hz Soundproof Generator
300KW / 375KVA 3 Phase Diesel Generator 50Hz / 60Hz Soundproof Generator
300KW / 375KVA 3 Phase Diesel Generator 50Hz / 60Hz Soundproof Generator
300KW / 375KVA 3 Phase Diesel Generator 50Hz / 60Hz Soundproof Generator
300KW / 375KVA 3 Phase Diesel Generator 50Hz / 60Hz Soundproof Generator
Specifications
Brand Name :
SHX
Model Number :
SCS413
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
80 Sets per month
Delivery Time :
20 working days
Packaging Details :
Standard export packing
Product name :
375KVA Generating Set
Color :
Customized
Aspiration :
Turbocharged
Frequency :
50Hz
Voltage :
230/400V
Engine :
Cummins
Alternator :
Stamford
Control panel :
Smartgen HGM6110N
Description

300KW / 375KVA Soundproof Generator 3 Phase Diesel Generator Back-up Power Electricity

Generator Set Information:

1. Rated power 300KW / 375KVA, standby power 330KW / 413KVA
2. Engine: Cummins
3. Alternator: Faraday
4. Water-cooled
5. 8hrs operation base fuel tank
6. Automatic start
7. Sound-proof canopy
8. ATS is for option.

Genset Specifications:

Genset model SCS413
Genset rated power 300KW / 375KVA
Rated voltage 230/400V (adjustable)
Rated current 540 Amp
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 3800×1550×1870
Gross weight (kg) 3800

Engine Specifications:

Diesel Engine
Brand CCEC CUMMINS
Model NTA855-G4
Engine structure 6 cylinders vertical in line,4 stroke, turbocharged
Rotating speed 1500 RPM
Engine cooling method Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 14
Bore×Stroke(mm) 140×152
Compression ratio 14.0: 1
100% Load fuel consumption (litre/h) ≤66.7
Lube capacity(L) 36

Alternator Specifications:

Alternator
Brand STAMFORD
Model HCI444FS
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP23

Features

1) Universal design and manufacture

2) Most widely used around the world

3) With most service terminals

4) Engineers are familiar with Cummins powered gensets

5) You could find spare-parts very easy

Introduction of Guangdong Sunkings Electric Co., Ltd.

Guangdong Sunkings Electric Co., Ltd has more than 15 years experience in manufacturing and maintenance of generator sets. We mainly manufacture Cummins, Perkins, Weichai, Yuchai and Shangchai powered gensets which are all made in China keeps the genset cost much lower than the US or EU or the Japan cost, since the design and all the materials are the same with original factories, the quality remains the almost the same as the original factories.

Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.
