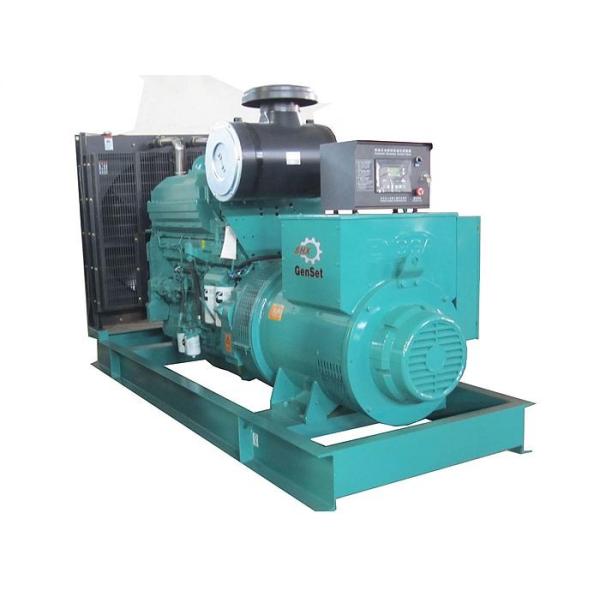

Cummins Power 150KW Diesel Generator 50Hz / 60Hz 3 Phase Electrical Generator
Genset Data: 400/230V, 3 Phase 4 Pole, 1500/1800RPM, Power Factor 0.8.
Product Description:
1. Prime power 150KW/188KVA, standby power 165KW/206KVA.
2. Powered by Cummins engine.
3. Original Faraday alternator.
4. Delixi air breaker.
5. Electric start with batteries.
6. Smartgen controller.
7. ATS is for option.
Technical Specifications:
Genset model | SCF206 |
Genset rated power | 150KW/188KVA |
Rated voltage | 400/230V (adjustable) |
Rated current | 270 Amps |
Frequency | 50/60 Hz |
Power factor | 0.8 Lagging |
Connecting type | 3 phase 4 wire |
Cooling system | Closed cycle water-cooled with fan, water tank |
Overall dimension (L×W×H) mm | 2400×850×1400 |
Weight (kg) | 1500 |
Diesel Engine | |
Brand | DCEC CUMMINS |
Model | 6CTA8.3-G2 |
Engine type | 6 cylinders vertical in Line, 4 stroke, direct injection |
Aspiration | Turbocharged and water-to-air intercooled |
Rotating speed | 1500 RPM |
Engine cooling system | Water-cooled |
Speed governing system | Electronic speed governor |
Starting method | By 24V batteries |
Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
Displacement(L) | 8.3 |
Bore×Stroke(mm) | 114×135 |
Compression ratio | 17.3:1 |
100% Load fuel consumption (l/h) | ≤37.5 |
Lube oil capacity(L) | 23.8 |
Alternator | |
Brand | FARADAY |
Model | FD3E1-4 |
Excite type | Brushless self-excited AVR regulation |
Connecting type | 3 phase 4 pole |
Steady frequency change | 0.50% |
No load voltage | ≥95%-105% |
Steady voltage | ≤±1% |
Insulation class | Class H |
Protection grade | IP23 |
Why choose Cummins powered gensets?
1. Cummins engines which are made in China with the same standard of the US Cummins keep the quality almost the same as the US Cummins.
2. More than 90% of the Engines components and spares are made in China which keeps the cost much lower.
3. Cummins engines are universally just as Cummins factories all around the world; all the spares are universal which make the maintenance and reparation very simple.
4. Cummins has worldwide after-sales network, to whom you can get technical support and spares right near your house.
5. Engineers are more familiar with Cummins engines because they are most widely use in every filed and everywhere around the world.
Features
1) Universal design and manufacture
2) Most widely used around the world
3) With most service terminals
4) Engineers are familiar with Cummins powered gensets
5) You could find spare-parts very easy
Introduction of Guangdong Sunkings Electric Co., Ltd.
Guangdong Sunkings Electric Co., Ltd has more than 15 years experience in manufacturing and maintenance of diesel generator sets. We mainly manufacture 25-2750KVA Cummins, Perkins, Weichai, Yuchai and Shangchai powered diesel gensets which are all made in China keeps the genset cost much lower than the US or EU or the Japan cost, since the design and all materials are same as original factories, the quality remains almost same as original factories.
