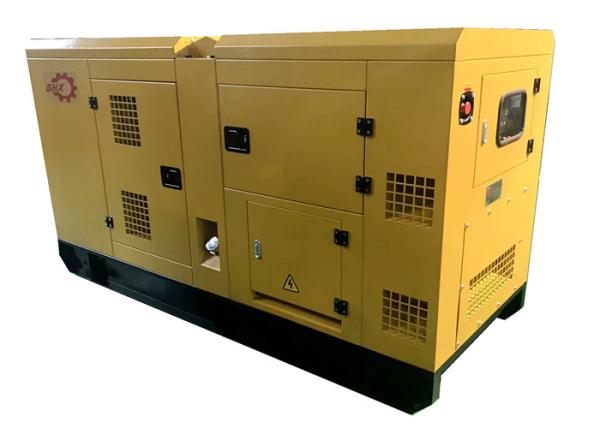

Soundproof Generator 48KW / 60KVA Silent Diesel Generator Outdoor Use

The power output of Cummins Generator Sets:

In front of the shock absorber can be installed double groove power output belt pulley of the crankshaft, Cummins Generator set front end is equipped with multi slot attachment drive pulley, both with a variety of front power output device.

Technical Specifications:

Supply scope of Silent Genset

1. Standard tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator.
2. Brand new engine, with start motor.
3. Brand new brushless alternator, single bearing, flange connection, IP21-23, H insulation class, with AVR.
4. Auto control panel, with LCD display.
5. Engine mounted battery-charging alternator.
5. Circuit Breaker, Exhaust Silencer
6. Radiator for 40°C ambient temperature and double-deck cooling, with fan guard and front guard.
7. Anti-vibration pads are fixed between engine/alternator and base frame, as to ensure the compete genset running under stablization.
8. Skid-mounted bottom Fuel tank - 8hrs continuous running for choice (bigger fuel tank by your demand under extra cost)
9. External recessed emergency stop button for extra safety
10. The colors & Brands by your requests
11. Optional choice: ATS (automatic transfer switch), battery charger of mains supply, fuel-water separator, water heater and oil heater ( depends on using environment),fuel filter, oil filter, water filter and air filter, Parallel system for your choice.

INSPECTION AND TEST

1 GENERAL

1.1 Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.

1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.

1.3 The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment rejected shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.

1.4 Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers satisfaction at the manufacturers cost.

1.5 The engine and generator shall be tested individually in accordance with relevant standards specified above.

1.6 The completed and individually tested engine and generator shall be assembled onto the base plate with all auxiliaries, instruments and controls for a complete test of the generator set.
