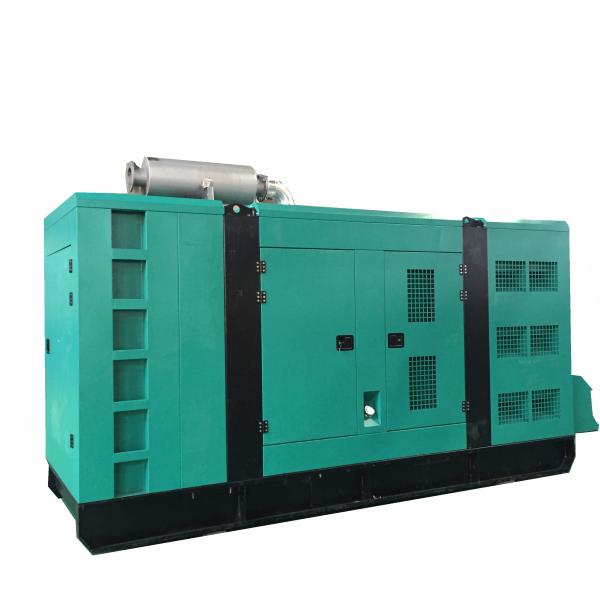

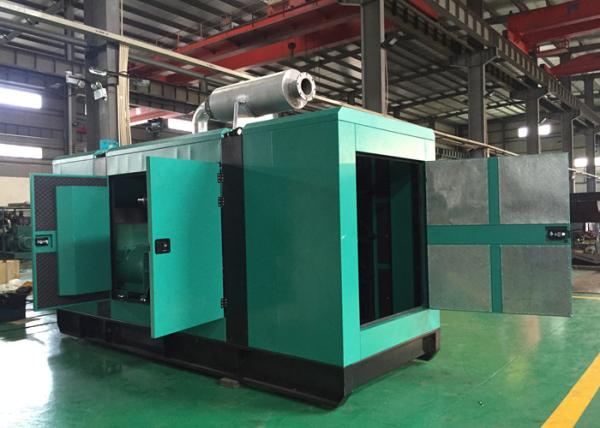

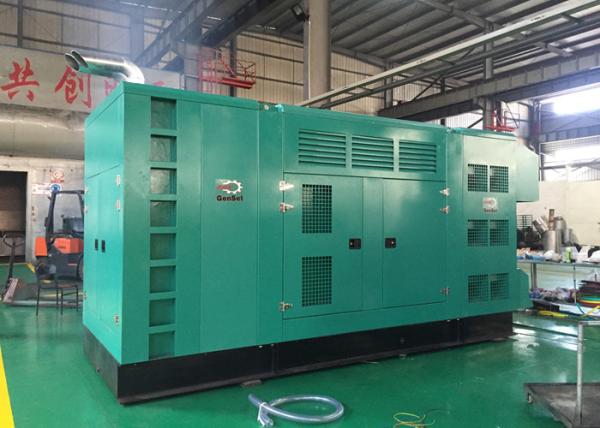

Green Power Silent Diesel Generator 400KVA Emergency Standby Power Generator
Green Power Silent Diesel Generator 400KVA Emergency Standby Power Generator
Green Power Silent Diesel Generator 400KVA Emergency Standby Power Generator
Green Power Silent Diesel Generator 400KVA Emergency Standby Power Generator
Green Power Silent Diesel Generator 400KVA Emergency Standby Power Generator
Green Power Silent Diesel Generator 400KVA Emergency Standby Power Generator
Specifications
Brand Name :
SHX
Model Number :
SCF440
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
80 Sets per month
Delivery Time :
20 working days
Packaging Details :
Standard export packing
Product name :
400KVA Silent Generator
Color :
Green
Phase No. :
3
Speed governing :
Electronic
Starting method :
By battery
Engine brand :
Cummins
Alternator brand :
Faraday
Control panel :
Smartgen HGM6110N
Description

320KW / 400KVA Silent Diesel Generator With Cummins diesel engine Standby Power Generator

Standard configuration of gensets:

  • Engine: Cummins diesel engine
  • Engine type: Water-cooled, in line four-stoke, Humit cylinder liner, direct injection
  • Alternator: Stamford brushless alternator
  • Automatic control panel with ATS
  • Soundproof canopy with 8 hours base fuel tank

Genset Specifications:

Genset model SCF440
Genset rated power 320KW / 400KVA
Rated voltage 400/230V (adjustable)
Rated current 576 Amps
Frequency 50 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 4200×1300×2000
Weight (kg) 4500

Engine Specifications:

Diesel Engine
Brand CCEC CUMMINS
Model NTAA855-G7A
Engine structure 6 cylinders vertical in line, 4 stroke, turbocharged
Rotating speed 1500 RPM
Engine cooling method Water-cooled
Speed governing system Electronic speed governor
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 14
Bore×Stroke(mm) 140×152
Compression ratio 14.0:1
100% Load fuel consumption (litre/h) ≤75.7
Lube capacity(L) 36

Alternator Specifications:

Alternator
Brand FARADAY
Model FD4LP1-4
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP23

Control System

Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.

OEM Service:

  1. Unique design and manufacture of generator according to customers requirement.
  2. Customer logo printing or painting on the genset.
  3. Installation and Operation manual neutral or headings can be design according to customer requirement.
  4. Full warranty cover to support the customers.

Guarantee For SHX Series Generators:

  • Guarantee Period: One year or 1000hours whichever comes first.
  • During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  • Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
  • 24 hours service hotline is available for customers.
