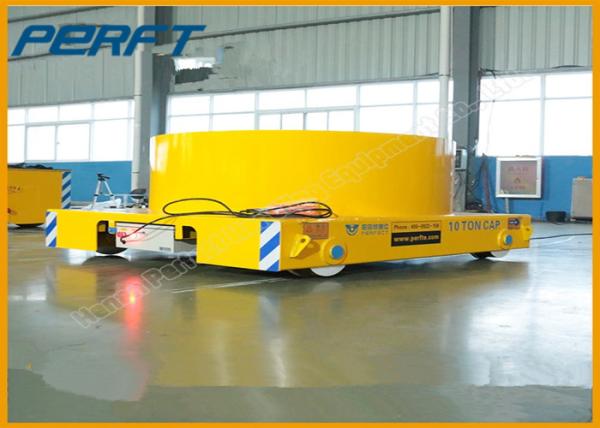

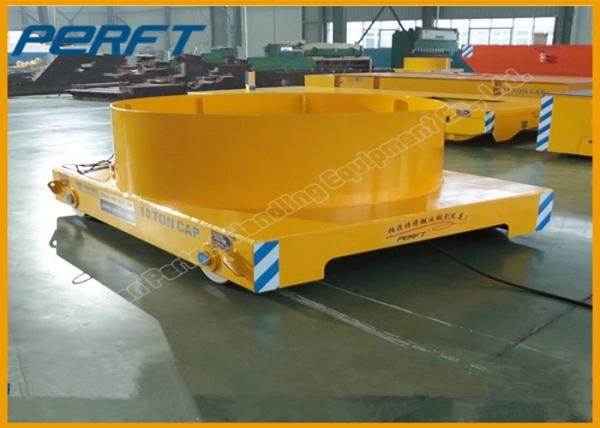

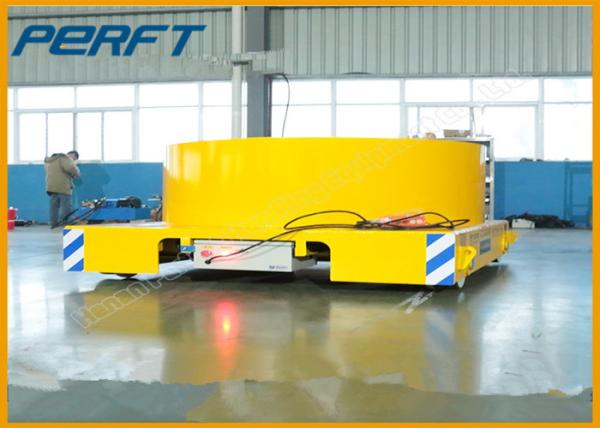

4 Wheel Ladle Transfer Car Motor Driven For Heavy Load Ladle Transportation
4 Wheel Ladle Transfer Car Motor Driven For Heavy Load Ladle Transportation
4 Wheel Ladle Transfer Car Motor Driven For Heavy Load Ladle Transportation
4 Wheel Ladle Transfer Car Motor Driven For Heavy Load Ladle Transportation
4 Wheel Ladle Transfer Car Motor Driven For Heavy Load Ladle Transportation
4 Wheel Ladle Transfer Car Motor Driven For Heavy Load Ladle Transportation
4 Wheel Ladle Transfer Car Motor Driven For Heavy Load Ladle Transportation
4 Wheel Ladle Transfer Car Motor Driven For Heavy Load Ladle Transportation
Specifications
Brand Name :
Rail Ladle Transfer Car
Model Number :
Rail Ladle Transfer Car
Certification :
CE ISO SGS
Place of Origin :
Henan China
MOQ :
1
Price :
USD:3000-6000/set
Payment Terms :
L/C, T/T
Supply Ability :
30sets/week
Delivery Time :
20 work days after received balance payment
Packaging Details :
Trap and Wooden Case
Product Name :
4 wheel ladle transfer car moter driven electric rail flatbed car for heavy load ladle transportation which can Custom explosion-proof function
Type :
Rail Ladle Transfer Car
Wheel Base(mm) :
1200-7000
Rail Inner Gauge(mm) :
1200-2000
Running Speed(m/min) :
0-25
Color :
Customized
Ground Clearance(mm) :
50
Description

4 Wheel Ladle Transfer Car Moter Driven Electric Rail Flatbed Car For Heavy Load Ladle Transportation

The 4 wheel ladle transfer car moter driven electric rail flatbed car for heavy load ladle transportation which can Custom explosion-proof function is powered by cabled drum. The power source 380V alternating-current is supplied to the traction motor by cable. Cable is collected and released by coiling device mounted underneath the car. The rail transfer cart can realize full automatic operation by PLC system. The rail transfer cart can be applied in the environment such as severe environment,high temperature, anti-explosive etc. Simple structure and low cost make it popular for workshop transportation. The rail transfer cart can be applied in the occasion with any loading capacity and high using frequency. If the running distance is beyond 50m, the rail transfer cart needs to install cable arranger to help with cable rolling. The max running distance is up to 200-400m.

Advantage and functions of the 4 wheel ladle transfer car moter driven electric rail flatbed car for heavy load ladle transportation which can Custom explosion-proof function

  • The kind of melting steel ladle transfer car is with high level automation
  • Excellent gear reducer and motor with high quality, assemblied together perfectly
  • Safe devices are installed in the melting steel ladle transfer car
  • The turning can be realized for this kinds of melting steel ladle transfer car ,as "s", arc-shaped", "curved rail"
  • Customization can be supported for the melting steel ladle transfer car
  • The kind of melting steel ladle transfer car is with large capacity and high quality
  • The kind of melting steel ladle transfer car can be applied in various occasions as high temperature, easy explosion, ponding, dust, scrap iron...
  • The hydraulic lifting device can be equipped as per customers' demand
  • The V frame can be installed for rounded material as per your need
  • DC motor controlled, The speed can be adjusted
  • Safety, flexibility, stable start, big starting torque, small capacity to the gear reducer
  • Long service lifetime for this kinds of melting steel ladle transfer car
  • The running distance of this kinds melting steel ladle transfer car is not limited
  • This kinds of melting steel ladle transfer car C is battery powered, so only charged fully, can it run freely without limited distance

Main Componences of the 4 wheel ladle transfer car moter driven electric rail flatbed car for heavy load ladle transportation which can Custom explosion-proof function

Technical Table of the 4 wheel ladle transfer car moter driven electric rail flatbed car for heavy load ladle transportation which can Custom explosion-proof function

Rated Load(t) 2 10 20 30 40 50 63 80 100 150

Battery Capacity(Ah)

 180 160 180 250 300 330 400 400 440 600
Wheel Base(mm) 1200 2600 2800 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance(mm) 50 50 50 50 50 50 75 75 75 75
Running Speed(m/min) 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power(KN) 0.8 1.5 2.5 4 5.5 5.5 7.5 7.5 11 15

Battery Voltage(v)

 24 48 48 48 48 48 48 72 72 72

The scheme of the 4 wheel ladle transfer car moter driven electric rail flatbed car for heavy load ladle transportation which can Custom explosion-proof function

Application and Usage of the 4 wheel ladle transfer car moter driven electric rail flatbed car for heavy load ladle transportation which can Custom explosion-proof function

4 Wheel Ladle Transfer Car Motor Driven For Heavy Load Ladle Transportation

Packaging & Shipping of the 4 wheel ladle transfer car moter driven electric rail flatbed car for heavy load ladle transportation which can Custom explosion-proof function
