Specifications
Brand Name :
Coil Rail Transfer Trolley
Model Number :
Coil Rail Transfer Trolley
Certification :
CE ISO SGS
Place of Origin :
Henan China
MOQ :
1
Price :
Usd2800-4600/set
Payment Terms :
L/C, T/T
Supply Ability :
30sets/week
Delivery Time :
20 work days after received balance payment
Packaging Details :
Trap and wooden case
Product Name :
50 ton carbon steel coil rail transfer car for aluminum coils transportation on rails
Ground Clearance(mm) :
50-75
Motor Power :
1-15
supply power :
Cable Drum
Wheel Base(mm) :
1200-7000
Running Speed(m/min) :
0-25
Battery Capacity(Ah) :
180-600
Battery Voltage(v) :
24-72
Description

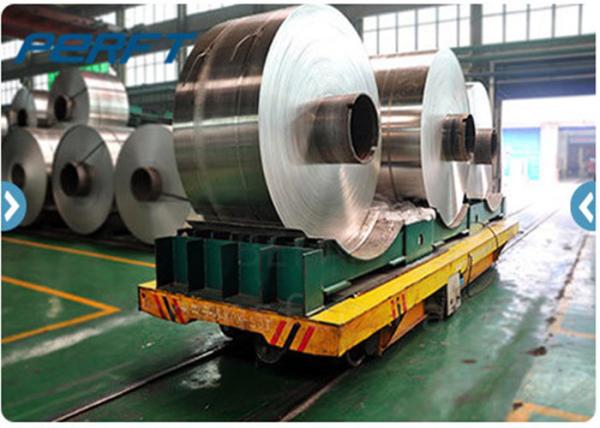

50 ton carbon steel coil rail transfer car for aluminum coils transportation on rails

The 50 ton carbon steel coil rail transfer car for aluminum coils transportation on rails is powered by cabled drum. This 50 ton carbon steel coil rail transfer car for aluminum coils transportation on rails is usually used at ship yard, plant and factory, certain production line. The 50 ton carbon steel coil rail transfer car for aluminum coils transportation on rails could get power from outside or from the battery either.

Advantage

1. AC motor, DC motor, thermic at diesel cycle, pneumatic.
2. Steel wheels for translation on every kind of rail.
3. Control through fixed push-button panel (on board or on floor), with radio control or translation self-acting management.
4. Electric or electronic translation management.
5. Power supplied by the factory electrical grid, from a battery, by gas oil in case of diesel engine, by the factory air-system in case of pneumatic engine.
6. Parking and service brake.

Main Componences

24 - 72 V Battery Voltage Heavy Duty Handling Equipment Cable Drum Supply Power

24 - 72 V Battery Voltage Heavy Duty Handling Equipment Cable Drum Supply Power

Technical Table

Model BJT-2t BJT-20t BJT-50t BJT-100t BJT-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 500 600 700 1000 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Running Distance(m) 25 30 50 50 50
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2

The Scheme

24 - 72 V Battery Voltage Heavy Duty Handling Equipment Cable Drum Supply Power

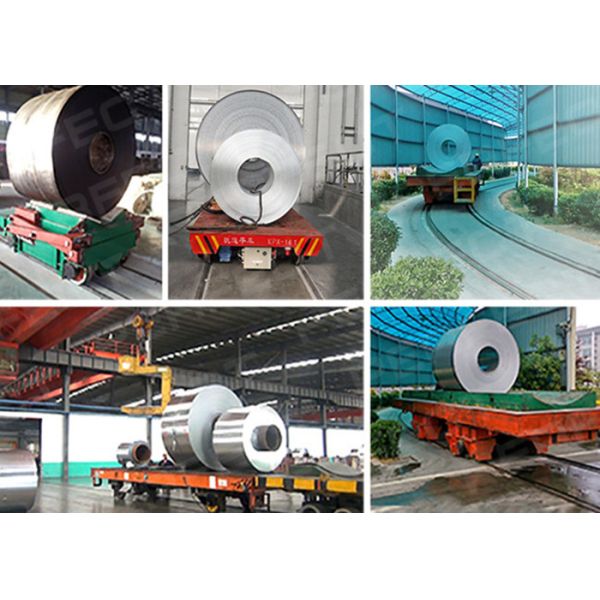

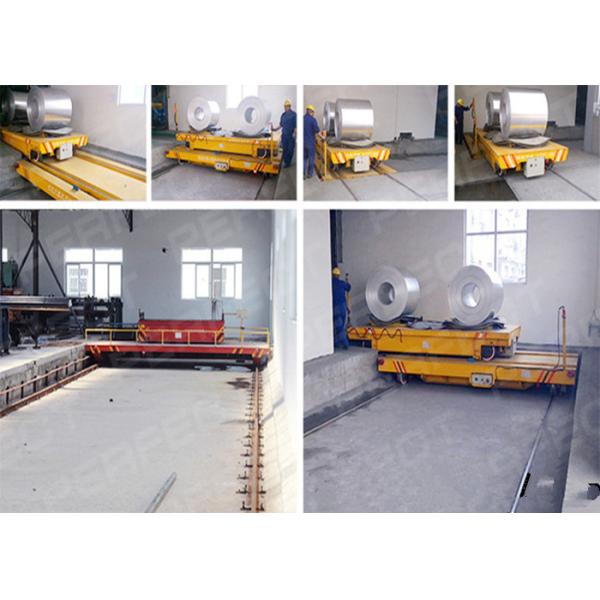

Application

24 - 72 V Battery Voltage Heavy Duty Handling Equipment Cable Drum Supply Power

24 - 72 V Battery Voltage Heavy Duty Handling Equipment Cable Drum Supply Power
