Specifications
Brand Name :
PERFECT
Model Number :
BWP-30T
Certification :
CE, SGS, ISO
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
70 Sets Per Month
Delivery Time :
30-45 Days After Receiving The Prepayment
Packaging Details :
The Whole Product Packing with Tarp and small parts in Wooden Cases.
Application :
Heavy Cargo Die Handling
Load Capacity :
30T/Customized
Power Mode :
Storage Battery
Control Mode :
Pendant/Remote/PLC Control
Material :
Q235
Dimension :
5500*2200*650, Customized
Runing Speed :
0-25m/min
Special Function :
Alarm Light, Heat-Resistant, Lifting, Dumpling
Battery Type :
Free of Maintenance
Year :
2017
Description

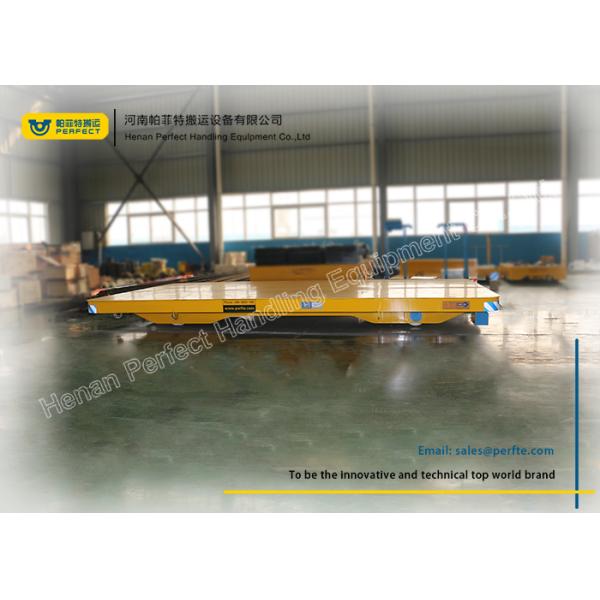

30 Ton Yellow Electric Die Transport Trailer with Working Light


Product Preview of Die Transport Trailer
This kind of die transfer trailer is powered by storage battery. It adopts PU wheel. The inner wheel is mad eup of cast steel and the outer surface is packed by PU material. It is used for special designed rotation wheel an dcan turn 360 degree without moving forward and backward. We can offer you customized products for you as per your demand. For example, our transport trailer could run on railways as well as cement floor according to the using sites and using environment.


Parameters of
Die Transport Trailer

Main Parameters of the Die Transfer Trailer
Load Capacity (t)
30
Impact Rated Load (t)
45
Table Size(mm)
Length
5000
Width
2200
Height
650
Cart Weight (t)
8.8
Turning Type
Turning while driving with no stop
Wheel Material
ZG55& PU
Control Mode
Wireless Control or Pendant
Brake Principle
Electric Magnetic Brake
Battery
Free of Maintenance
Radar Control
3-0.3m Automatic Stop for Obstacles
Special Functions
Turning Light, Night Light, Power Display




Product Application of
Die Transport Trailer

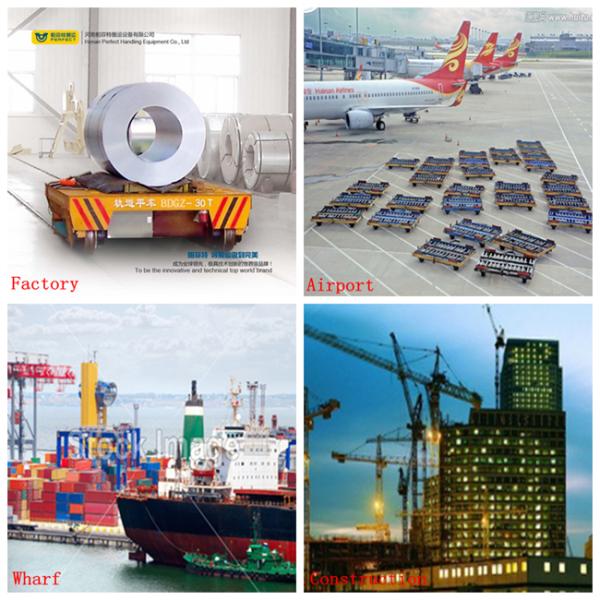

Our products can be used in many different lines and conditions. For example, you can use it to transfer coil material, ladle material, die material and so on. In airport, you can use it to transfer cargo or luggage from the warehouse to the airplane. In the wharf, you can also use it to transport containers from the ship to the shore ground. Of course, you can also use it for construction to transport heavy materials. All in all, we can produce almost all kinds of products you want. We must be a good choice for you!
30 Ton Yellow Electric Trailer Trolley / Rail Transfer Cart Storage Battery


Details of
Die Transport Trailer
The battery is maintenance free and has over 3 years service life. We fit radar detector device so that the trailer will stop when it detects people in 2 meters. The charger is intelligent automatic and will cut off the current when it's charged with full light.
30 Ton Yellow Electric Trailer Trolley / Rail Transfer Cart Storage Battery

Contact Information

Help you to choose the most suitable cart

Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!

  • What material/cargo are you going to transfer?
  • What load capacity do you want?
  • What kind of ground does the transfer cart operate on? (rails or cement floor)
  • What’s the specification table size ? (length,width and height)
  • How long is the running distance?
  • How many working hours do you have everyday?
  • What special requirements do you have?
