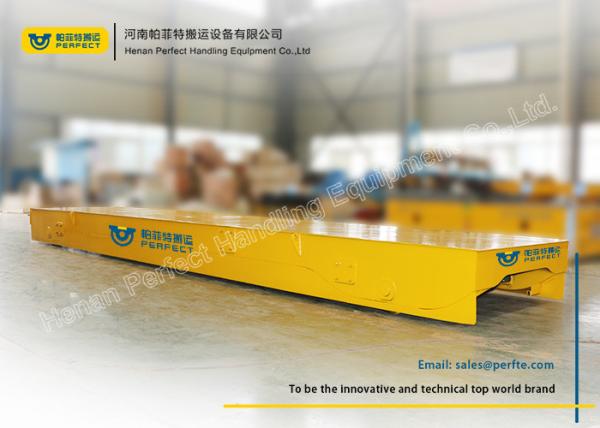

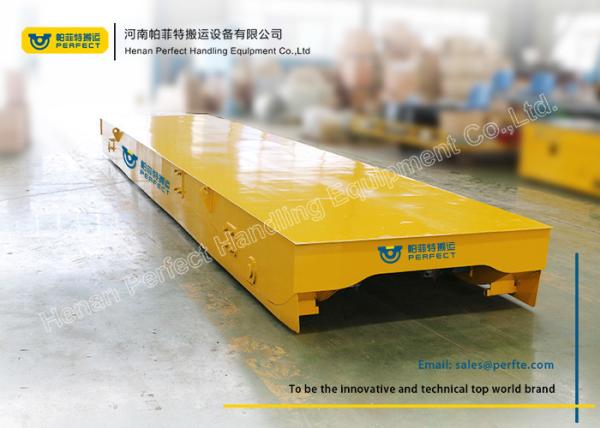

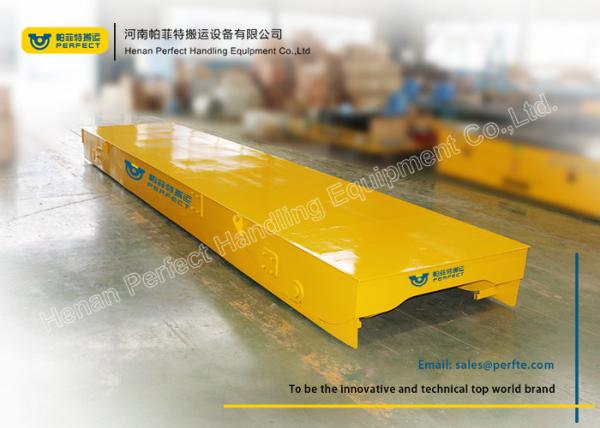

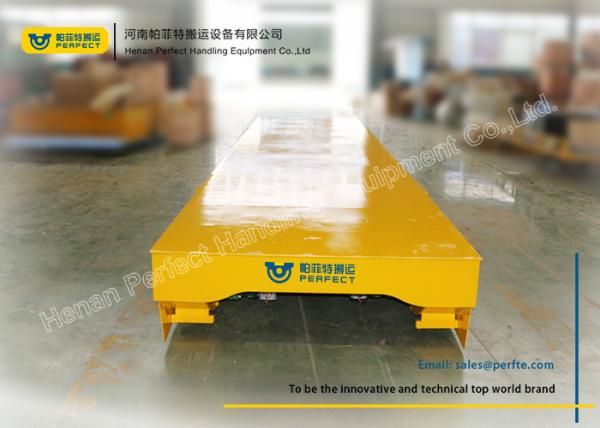

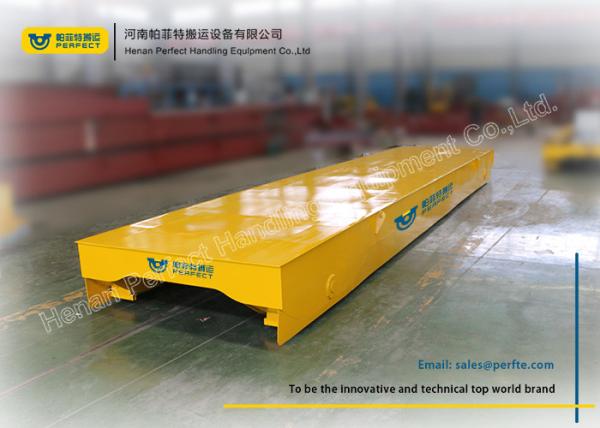

Workshop Rail Flat Cart Heavy Cargo Transfer Car Big Starting Power With Crane
Workshop Rail Flat Cart Heavy Cargo Transfer Car Big Starting Power With Crane
Workshop Rail Flat Cart Heavy Cargo Transfer Car Big Starting Power With Crane
Workshop Rail Flat Cart Heavy Cargo Transfer Car Big Starting Power With Crane
Workshop Rail Flat Cart Heavy Cargo Transfer Car Big Starting Power With Crane
Workshop Rail Flat Cart Heavy Cargo Transfer Car Big Starting Power With Crane
Workshop Rail Flat Cart Heavy Cargo Transfer Car Big Starting Power With Crane
Workshop Rail Flat Cart Heavy Cargo Transfer Car Big Starting Power With Crane
Workshop Rail Flat Cart Heavy Cargo Transfer Car Big Starting Power With Crane
Workshop Rail Flat Cart Heavy Cargo Transfer Car Big Starting Power With Crane
Workshop Rail Flat Cart Heavy Cargo Transfer Car Big Starting Power With Crane
Workshop Rail Flat Cart Heavy Cargo Transfer Car Big Starting Power With Crane
Specifications
Brand Name :
PERFECT
Model Number :
BTL
Certification :
CE, SGS, ISO
Place of Origin :
Xinxiang, China
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
75 Sets per month
Delivery Time :
45 Days
Packaging Details :
The whole cart is package with tarp, and parts will be packed by wood case
Powered Source :
draging cable
Operation Mode :
Pandent and Remote Controller
Cart Frame :
Q235B
Rail Gauge :
1435mm (Customized)
Color :
Yellow/Customized
Wheel Type :
Cast steel wheel
Safrty Device :
Buffer, Alarm light, Emergency Stop Buttons
Special Function :
Anti-Explosion, Heat-Resistant, Lifting, Dumpling
Description

Heavy Cargo Transfer Car Rail Flat Cart with Crane For Workshop

Introduction---Electrical Handling Vehicle

Our workshop electric handling vehicle is powered by draging cable . It can run on the 'S' and arc-shaped railways to carry many different kinds of stuff from one place to another. The workshop electric handling vehicle also can be used in the ferry condition and flammable, explosive environments, the hydraulic lifting device can be installed on the handling vehicle. This kind of transfer trolley is no running distance limitation.It has lots of adventure which include low costs and flexible operation...

Workshop Rail Flat Cart Heavy Cargo Transfer Car Big Starting Power With Crane

Application---Electrical Handling Vehicle

Assembly line: Because of the advantage of without cable outside, the workshop electric handling vehicle is mainly applied in assembly line, can realize the straight rail, S shape rail, U shape rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing rail etc.

Shot blasting room:With characteristics of low table height and wireless power, the workshop electric handling vehicle can transfer the workpiece to blasting room. The special used handling vehicle is equipped with board to protect the motor, reducer, electric appliance and battery. In order to sand blasting in all directions, our electric handling vehicle can be equipped with hydraulic device and rotary function.

Lathe transport: With advantages of large load capacity and wireless, the vehicle is mainly used in lathe producing factory to transfer lathes.

Workshop Rail Flat Cart Heavy Cargo Transfer Car Big Starting Power With Crane

Components---Electrical Handling Vehicle

This kind of workshop electric handling vehicle is made up of Storage battery, battery charger, Shaft and connecting shaft, transfer cart wheels, electrical control box, transfer trolley frame, DC electric motor, , speed reducer, push button pendant, remote controller; The hydraulic lifting device can be added in the workshop electric handling vehicle.

Workshop Rail Flat Cart Heavy Cargo Transfer Car Big Starting Power With Crane

Main Features---Electrical Handling Vehicle

The DC motor has the advantages of stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on.

Compared with other types, the PLC controlled steel platform motorized wagon is more safe and flexible. And the running distance is not limited. And there is no strict requirement for the construction of the railway.

Parameters---Electrical Handling Vehicle

Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 200 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100
