Specifications
Brand Name :
Perfect
Model Number :
BXC
Certification :
CE, SGS, ISO
Place of Origin :
Xinxiang, China
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
70 Sets per month
Delivery Time :
45 days
Packaging Details :
The whole cart is package with tarp, and parts will be packed by wood case
Product Name :
Coil Handling Trailer
Power supply :
Battery powered
Operation Mode :
Pandent and Remote Controller
Running Distance :
Unlimited
Capacity :
15 Ton
Application :
Coil Transportation
Warranty :
1 year
Color :
Yellow, Customized
Wheel Type :
Cast steel wheel
Usage :
Used for Transport Coils, Paper Colls, etc.
Description

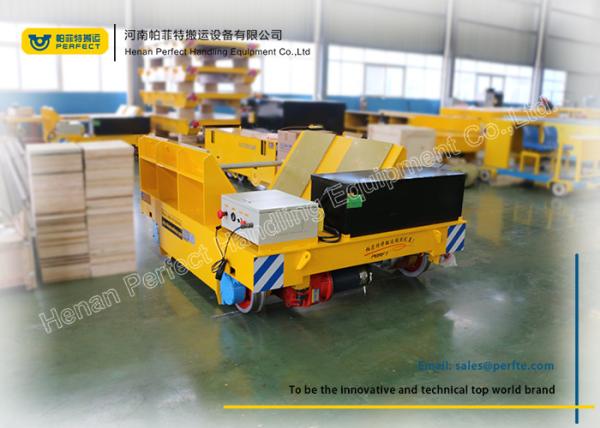

Easy Operated High Speed Coil Handling Trailer for Heavy Industry on Rails

Uses of Coil Transport Bogie:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

Applicable sites of transfer trolley
PERFECT treats the integrated management idea as a crucial tool to realize value for the benefits and requirements of the final customers and to promote the business on the national and international markets.The continuous tenacity of the quality management method makes our company to take responsibility for the handling problems of the customers and to solve and provide the most suitable way from a functional, technical, quality and commercial viewpoint.PERFECT conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!

Parameters of Rail Moving Coils Transfer Trolley
Model 2t 20t 50t 100t
Rated Load(t) 2 20 50 100
Table Size(mm) Length(L) 2000 4000 5500 6500
Width(W) 1500 2200 2500 2800
Heigth(H) 500 600 700 1000
Wheel Base(mm) 1200 2800 4200 4900
Rail Inner Gauge(mm) 1200 1435 1435 2000
Wheel Diameter(mm) 270 350 500 600
Wheel Quantity 4 4 4 4
Ground Clearance(mm) 50 50 50 75
Running Speed(min) 0-25 0-20 0-20 0-20
Motor Power(kw) 0.8 2.5 5.5 11
Running Distance(m) 25 30 50 50
Max Wheel Load(KN) 14.4 77.7 174 343.8
Reference Weight(t) 2.5 5.6 7.8 14.1
Recommended Rail Model P15 P24 P43 QU100
Easy Operated Coil Transfer Cart High Speed Pandent And Remote Controller
Other Products We Produce
We produce many different kinds of products. Our main products include material transfer carts, coils and pipes transport trolleys, industrial trailers, factory transport equipment, electric warehouse carriages, ladle carts, motorized battery operated transfer vehicle and so on. You can find the one you want from us.
