50 Ton Battery Powered Railroad Track Facility Motorized Transfer Cart
50 Ton Battery Powered Railroad Track Facility Motorized Transfer Cart
50 Ton Battery Powered Railroad Track Facility Motorized Transfer Cart
50 Ton Battery Powered Railroad Track Facility Motorized Transfer Cart
50 Ton Battery Powered Railroad Track Facility Motorized Transfer Cart
50 Ton Battery Powered Railroad Track Facility Motorized Transfer Cart
50 Ton Battery Powered Railroad Track Facility Motorized Transfer Cart
50 Ton Battery Powered Railroad Track Facility Motorized Transfer Cart
Specifications
Brand Name :
battery powered flat electric transfer cart
Model Number :
battery powered flat electric transfer cart
Certification :
CE ISO SGS
Place of Origin :
China(Mainland)
MOQ :
1 set
Price :
USD 2800~7500SET
Supply Ability :
100sets month
Delivery Time :
20 work days after received balance payment
Packaging Details :
trap and wooden case
Product Name :
battery powered flat electric transfer cart
Application :
Transfer Materials
Capacity :
50T(Customized)
Running speed :
20/min
Certificates :
CE ISO SGS
Table Size :
Customized
Height :
Customized
after-sales Service Provided :
Engineers available to service machinery
Description

50 Ton Battery Powered Railroad Track Facility Motorized Transfer Cart

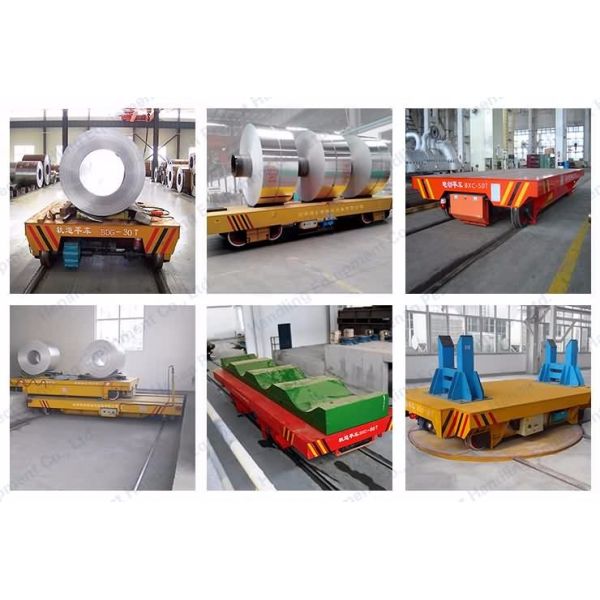

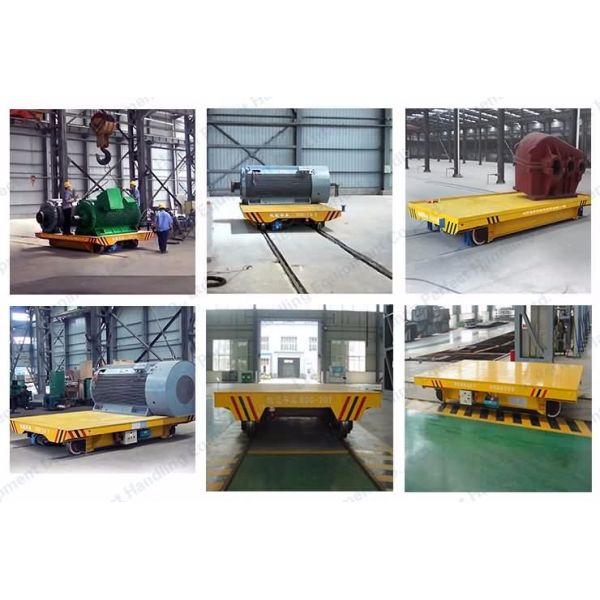

PERFECT's material handling transfer carts are movable platforms used for the horizontal movement of materials, assemblies and other items. Originally designed for load transfer between overhead crane bays, transfer carts are now used to carry loads along assembly lines, carry an entire shift of production on and even as a stable movable machine base.These transfer carts are widely used in machinery factory, warehouses and metallurgical plants,foundry workshops as a motorized automation transporter or with the crane to transport heavy loads over cross.

Site map for customer useSite map for customer useail Trailer Rail T

Technical Parameter of battery powered flat electric transfer cart
Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for Once Charge(KM) 6.5 4.8 4 3.8 3.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

Customization

PERFECT is specialized in designing and manufacturing of heavy duty Material Transfer Cart:
Transfer Cart : Rail transfer cart, Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Speical Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipmet, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.

50 Ton Battery Powered Railroad Track Facility Motorized Transfer Cart50 Ton Battery Powered Railroad Track Facility Motorized Transfer Cart
