Flat Free Tire 20t Heavy Duty Without Rail Electric Die Cart
Flat Free Tire 20t Heavy Duty Without Rail Electric Die Cart
Flat Free Tire 20t Heavy Duty Without Rail Electric Die Cart
Flat Free Tire 20t Heavy Duty Without Rail Electric Die Cart
Flat Free Tire 20t Heavy Duty Without Rail Electric Die Cart
Flat Free Tire 20t Heavy Duty Without Rail Electric Die Cart
Flat Free Tire 20t Heavy Duty Without Rail Electric Die Cart
Flat Free Tire 20t Heavy Duty Without Rail Electric Die Cart
Specifications
Brand Name :
Perfte
Model Number :
Battery Power Electric Transfer Cart
Certification :
CE, ISO, SGS
Place of Origin :
Henan, China(mainland)
MOQ :
1 Set
Price :
$7500-$8000
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
60 set per month
Delivery Time :
5-8 work days
Packaging Details :
The cart's body is packed with a tarp, and the wheel and parts of the cart will be packed with wooden case.
Warranty :
12 Month Long Guarantee
Capacity :
1-300T
Power supply :
Battery
Running speed :
0-25m/min(Adjustable)
Material :
Q235 Steel
Product name :
Flat Free Tire 20t heavy duty without rail transfer cart
After-sales service provided :
Field maintenance and repair service
Description
Flat Free Tire 20t heavy duty without rail transfer cart​

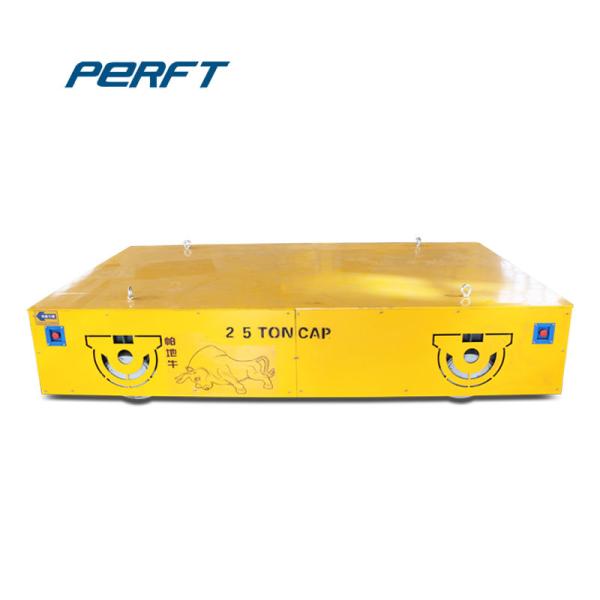

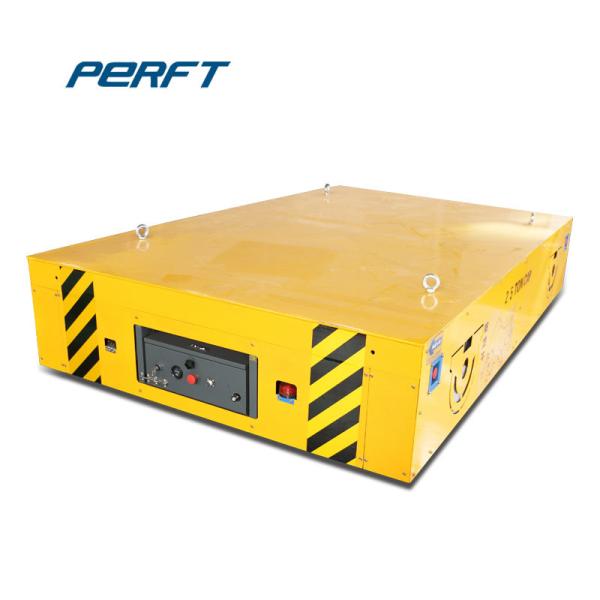

Product Preview of Battery Powered Transfer Truck
Our trolley are powered by battery. It's trackless and consists of steel structure bearing frame. When the current get in the electric control system, the machine is powered to make the trolley stop, start, move forward and move backward. It can also turn around for 360 degrees without moving forward or backward. As per clients' request, we can provide all kinds of trackless transfer trolley for you according to the working environment and floor condition.
​


Customization of Battery Powered Transfer Truck
Appearance
Table size, Table material, Table type, Rated load, Color, Wheel base,Detachable structure, etc.
Special Function
Hydraulic lift table, Dumpling, Climbing, V shape, PLC control system, Automatic positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system, etc.
Safety Device
Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails, etc.
Special Design
Round corner, Hold pendant box, Lifting hole, etc.
​

Advantages of Battery Powered Transfer Truck
Low noise
It causes low noise level.
Maximum safety
We make sure a maximum safety for operators and the material handled. What we really care is the safety of everyone involved in the process of machine operation.
Easy for operation
These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Easy to implement into manufacturing process
Operates on standard floors; Do not require complex or permanent installation.
Suitable for All Kinds of Weight
The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its highest payloads is up to 300 ton.

​


Parameter of Battery Powered Transfer Truck

Model BWP-5t BWP-20t BWP-30t BWP-40t BWP-50t
Rated Load(t) 5 20 30 40 50
Impacted rated load(t) 5 20 30 40 50
Structure of Frame Steel plates welded, beam
thickness of the steel plate 8 14 14 16 16
Cart weight(t) 4.3 7.9 8.8 10 10.5
Max. wheel load (t) 2.8 5.6 7.7 10 12
Ground requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50 50 50
Table size (mm) 3000*2000 4500*2200 5000*2200 5500*2300 6000*2300
Height of the whole cart (mm) 450 600 650 700 700
Wheel base (mm) 1500 1700 1700 1800 1800
Axles distance (mm) 2500 3900 4300 4800 5200
Turning radius (mm) 2501 3901 4301 4801 5201
Turning type Turning while driving with no stop
Control method for turning Control button
Turning structure Mechanical
Motor power (KW) 3.5 7 10 12 15
Wheel diameter (mm) 300 (4) 400 (4) 400 (6) 500 (6) 500 (6)
Wheel material ZG55+hydropurture
Running speed (m/min) 0-15 0-12
Brake principle Electric magnetic brake
Ground balance mechanical automatic adjustment
Operation method With wire or no wire
Battery model D-250 24pieces D-440 24pieces D-250 36pieces D-330 36pieces D-440 36pieces
Charger's installation Installed on cart Split-type
Cart color Yellow and warning sign
Radar control 3-0.3 m, Automatic stop for obstacles
Other functions Turning light, night light and power display


Package & Transportation
The body of the cart is packed with tarp, the small parts will be packed with wooden cases. According the table size and quantity, the cart would be carefully fixed and transported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.

​



Sales Service
We have full confidence and high responsibilities in our products. With quick quality information feedback system and technology service team, we can provide with high quality service for you. Our guarantee period is 12 months, after making sure the product is working well. During this period, we can repair, change the machine for you freely. After this period, we only charge cost price for you. We can also help you to fit, adjust the equipment till they work normally. We are striving for high quality for you all the way!
​
