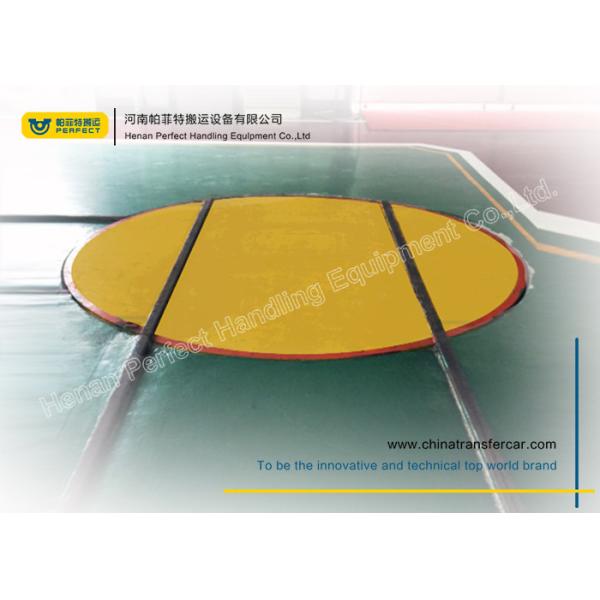

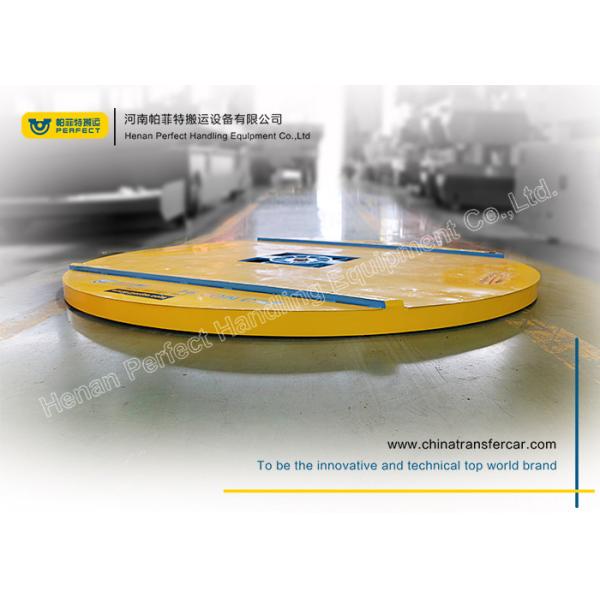

Ce Rotary Platform 3.5kw Industrial Transfer Trolley
Ce Rotary Platform 3.5kw Industrial Transfer Trolley
Ce Rotary Platform 3.5kw Industrial Transfer Trolley
Ce Rotary Platform 3.5kw Industrial Transfer Trolley
Ce Rotary Platform 3.5kw Industrial Transfer Trolley
Ce Rotary Platform 3.5kw Industrial Transfer Trolley
Specifications
Brand Name :
transfer flat cart with turntable on rails
Model Number :
transfer flat cart with turntable on rails
Certification :
CE ISO SGS
Place of Origin :
Henan, China (Mainland)
MOQ :
1 set
Price :
USD 3000~7800 set
Supply Ability :
100 sets month
Delivery Time :
20 work days after received balance payment
Packaging Details :
trap and wooden case
Product Name :
Rotary platform Electric Transfer flat cart with turntable on rails
Capacity :
1-300 ton
Application :
Industrial Filed
Color :
customized
Dimension :
Customized as Practical Needs
after-sales Service Provided :
Engineers available to service machinery
Description

Rotary platform Electric Transfer flat cart with turntable on rails

Details

1. It can be rotated at 360,270,90,180

2. It can be driven by human force and can be operated automatically and accurately.

3. A good helper in the turn of a rail car.

4. Fully automated electrical control.

5. Ring track for equipment production line,use in cross track.

Ce Rotary Platform 3.5kw Industrial Transfer Trolley

Ce Rotary Platform 3.5kw Industrial Transfer Trolley

Technical Parameter of transfer flat cart with turntable on rails
Model BWP-5t BWP-20t BWP-30t BWP-40t BWP-50t
Rated Load(t) 5 20 30 40 50
Max. Wheel Load (t) 2.8 5.6 7.7 10 12
Ground Requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50 50 50
Table Size (mm) 3000 X 2000 4500 X 2200 5000 X 2200 5500 X 2300 6000 X 2300
Height (mm) 450 600 650 700 700
Wheel Base (mm) 1500 1700 1700 1800 1800
Axles Distance (mm) 2500 3900 4300 4800 5200
Turning Radius (mm) 2501 3901 4301 4801 5201
Turning Structure Mechanical
Motor Power (KW) 3.5 7 10 12 15
Wheel Diameter (mm) 300 (4) 400 (4) 400 (6) 500 (6) 500 (6)
Wheel Material ZG55+hydropurture
Running Speed (m/min) 0-15 0-12
Brake Principle Electric magnetic brake
Operation Method Raido Remote Control
Battery Maintainance Free of maintainance
Charger's Installation Installed on cart Split-type
Cart Color Customized
Charger's Function Automatically cut off the power when the battery is fully charged
Radar Control 3-0.3 m, Automatic stop for obstacles
Warning Equipment Horn and Flash Light
Other Functions Turning light, night light and power display
Package & Delivery

  • The carts body is packed with tarp, and the wheel and parts of the cart will be packed with wooden case;
  • According transfer carts table size and quantity, cart will be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
  • The delivery time is around 30 days after clients pays the perpayment;

Ce Rotary Platform 3.5kw Industrial Transfer Trolley
