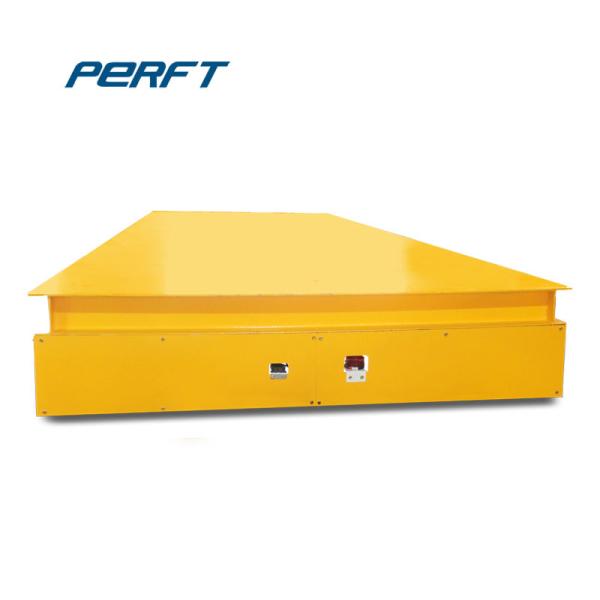

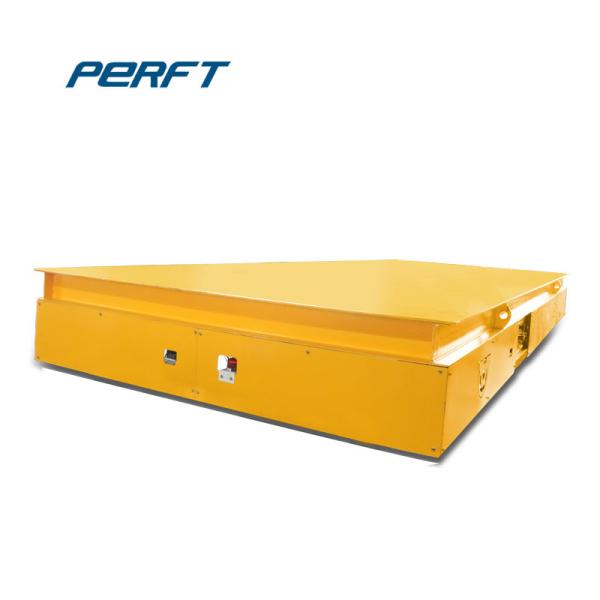

Steering Device Steel 20m/Min Material Transfer Cart With Alarm Light
Steering Device Steel 20m/Min Material Transfer Cart With Alarm Light
Steering Device Steel 20m/Min Material Transfer Cart With Alarm Light
Steering Device Steel 20m/Min Material Transfer Cart With Alarm Light
Steering Device Steel 20m/Min Material Transfer Cart With Alarm Light
Steering Device Steel 20m/Min Material Transfer Cart With Alarm Light
Steering Device Steel 20m/Min Material Transfer Cart With Alarm Light
Steering Device Steel 20m/Min Material Transfer Cart With Alarm Light
Specifications
Brand Name :
Perfte
Model Number :
Transfer Cart
Certification :
CE, ISO, SGS
Place of Origin :
Henan, China(mainland)
MOQ :
1 Set
Price :
$6000-$7500
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
46 set per months
Delivery Time :
5-8 work days
Packaging Details :
Packed with a tarp,with wooden case.
Product name :
Steering Device Steel Trolley Car Transporter with Alarm Light
Warranty :
24 Months
Type :
Transfer Cart
After-sales service provided :
Yes
Running speed :
0-20m/min
Description
Steering Device Steel Trolley Car Transporter With Alarm Light (BWP-65T)

Product Description of Trolley Car Transporter
Trolley Car Transporter is movable platform used for the horizontal movement of materials, assemblies and other items. Originally designed for load transfer between overhead crane bays, they are now used to carry loads along assembly lines, carry an entire shift of production on and even as a stable movable machine base.
The Trolley Car Transporter is without limitations to track length and distance due to it is free from the cable powered mould. And our standard heavy-duty design is controlled by a hand held joy stick or remote control with all wheel steering and small turning radius.
​


Characters of Trolley Car Transporter
--The Heavy Loads Trolley Car Transporter can be used to transfer any industrial cargo or factory heavy equipment, such as steel coils, steel pipes, ladle or billets, roller, pallet, prefabricated concrete, cement packets, etc.
--The Heavy Loads Trolley Car Transporter can be used in painting room, melt shop, storage warehouse, foundry plant, shipyard, 5S workshop, agriculture, etc.
--All of our Heavy Loads Trolley Car Transporter is equipped with such safety device: Alarm lights, buffer, emergency stop buttons and radar sensor.
--The Heavy Loads Trolley Car Transporter is designed depend on the working condition. You can add special function, such as lifting table, high temperature resistance, anti-explosion, etc.
​


Working principle of Trolley Car Transporter
The Trolley Car Transporters have two fixed and two swivel casters and are DC battery powered (optional AC powered). Carts are designed to travel on smooth to semi-smooth level floors. Customization is available for specific applications. Both the type of cart and the deck configuration can be customized to suit specific requirements.
​


Application Show of Trolley Car Transporter
The Trolley Car Transporter is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
​


About Us
​


Our after-serive
Our commitment: The load bearing safety factor of the trolley is no less than 120%.
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
16 hours engineering service and 24 hours internet service for our customers
During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
​

Types of Transfer Cart
Product Name Model Power Supply Mode Load Capacity Running distance Usage
Rail Transfer Cart BDG Conductor Rail We can design 1-300t load transfer cart. The load capacity and table size is customized according to the working condition and the client's requirements. ≤70m Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car BXC Battery Unlimited
Cable powered Transfer Trolley BJT Cable Drum ≤50m
Electric Transfer Cart BTL Trailing Cable ≤20m
Busbar Powered Handling Cart BHX Busbar Unlimited
Towed Rail Trailer BP Towed by other machine Unlimited
Steerable Towed Car BWT Manually or towed by forklift or other machine 1-150t on cement or steel floor. Unlimited
Trackless Handling Machine BWP Battery Unlimited
