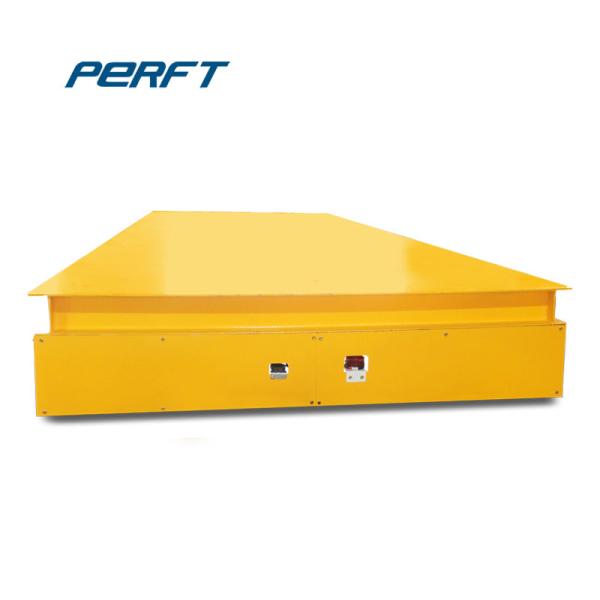

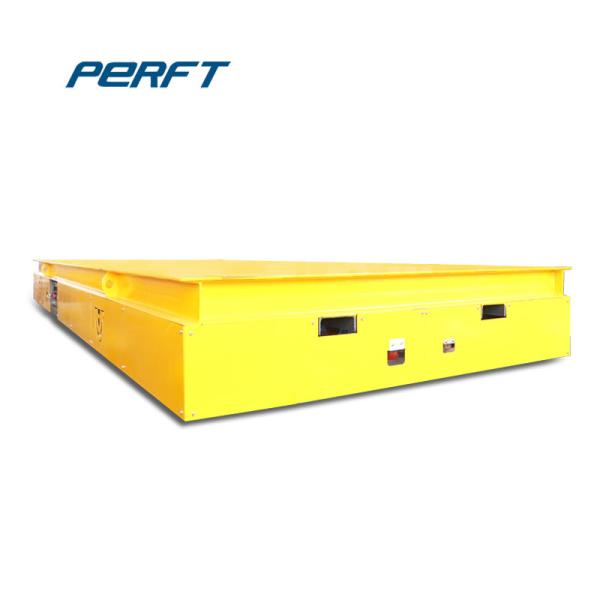

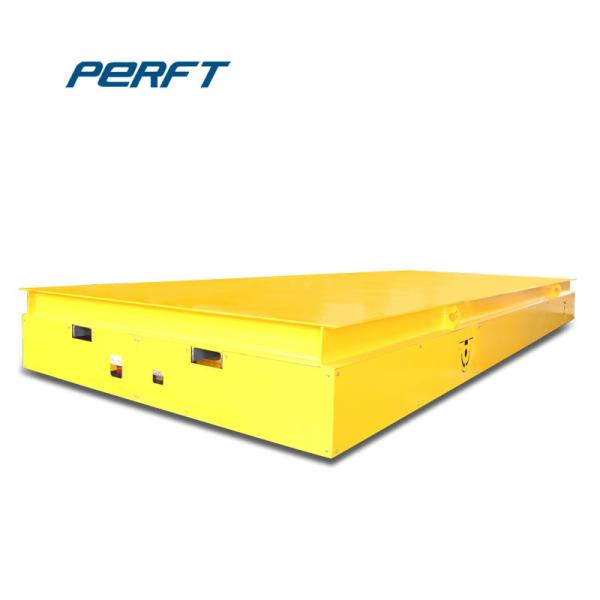

5t 20m/Min Trackless Transfer Trolley Flat Car For Machinery Factory
5t 20m/Min Trackless Transfer Trolley Flat Car For Machinery Factory
5t 20m/Min Trackless Transfer Trolley Flat Car For Machinery Factory
5t 20m/Min Trackless Transfer Trolley Flat Car For Machinery Factory
5t 20m/Min Trackless Transfer Trolley Flat Car For Machinery Factory
5t 20m/Min Trackless Transfer Trolley Flat Car For Machinery Factory
5t 20m/Min Trackless Transfer Trolley Flat Car For Machinery Factory
5t 20m/Min Trackless Transfer Trolley Flat Car For Machinery Factory
Specifications
Brand Name :
Perfte
Model Number :
Transfer Cart
Certification :
CE, ISO, SGS
Place of Origin :
Henan, China(mainland)
MOQ :
1 Set
Price :
$6000-$7500
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
46 set per months
Delivery Time :
5-8 work days
Packaging Details :
Packed with a tarp,with wooden case.
After-sales service provided :
Yes
Product name :
High temperature resistant trackless flat car for machinery factory
Warranty :
24 Months
Type :
Transfer Cart
Running speed :
0-20m/min
Orignal :
Henan, China(mainland)
Description

High temperature resistant trackless flat car for machinery factory
The trackless transfer vehicle is composed of power supply, transmission system, steel structure bearing frame, steering system, walking system, control module and fault diagnosis module.Usually, we choose batteries and generators as the power supply for this series of vehicles. The power supply passes through the electrical control module system to provide power to the traction motor to realize the start, stop, forward and turn of the trackless transfer vehicle and other functions.
5t 20m/Min Trackless Transfer Trolley Flat Car For Machinery Factory

Model BWP-5t BWP-20t BWP-30t BWP-40t BWP-50t
Rated Load(t) 5 20 30 40 50
Impacted rated load(t) 7.5 30 45 60 75
Structure of Frame Steel plates welded beam
thickness of the steel plate 8 14 14 16 16
Cart weight(t) 4.3 7.9 8.8 10 10.5
Max. wheel load (t) 2.8 5.6 7.7 10 12
Ground requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50 50 50
Table size (mm) 3000*2000 4500*2200 5000*2200 5500*2300 6000*2300
Height of the whole cart (mm) 450 600 650 700 700
Wheel base (mm) 1500 1700 1700 1800 1800
Axles distance (mm) 2500 3900 4300 4800 5200
Turning radius (mm) 2501 3901 4301 4801 5201
Turning type Turning while driving with no stop
Control method for turning Control button
Turning structure Mechanical
Motor power (KW) 3.5 7 10 12 15
Wheel diameter (mm) 300 (4) 400 (4) 450 (4) 500 (4) 600 (5)
Wheel material ZG55+hydropurture
Running speed (m/min) 0-15 0-12
Brake principle Electric magnetic brake
Ground balance mechanical automatic adjustment
Operation method With wire or no wire
Battery model D-250 24pieces D-440 24pieces D-250 36pieces D-330 36pieces D-440 36pieces
Battery maintenance Free of maintenance
Charger's installation Installed on cart Split-type
Cart color Yellow and warning sign
Charger's function Automatic stop for obstacles
Radar control 3-0.3 m, Automatic stop for obstacles
Warning equipment Sound and light
Other functions Turning light, night light and power display

Henan Perfect Handling Equipment co., Ltd. has been committed to solve problems related to the transportation and handling of materials for any type of industries and plants.We design and manufacture transfer carts,transfer trolleys, rail guided transfer carts, industrialflat trailers, tilters and other handling equipment. We provide all customized productions as you need and search functional solutions to our customers.
