30T Heavy Duty High Temperature Iron Transfer Car for Warehouse
30T Heavy Duty High Temperature Iron Transfer Car for Warehouse
30T Heavy Duty High Temperature Iron Transfer Car for Warehouse
30T Heavy Duty High Temperature Iron Transfer Car for Warehouse
30T Heavy Duty High Temperature Iron Transfer Car for Warehouse
30T Heavy Duty High Temperature Iron Transfer Car for Warehouse
Specifications
Brand Name :
Electric Transfer Trolley
Model Number :
Electric Transfer Trolley
Certification :
CE ISO SGS
Place of Origin :
China(mainland)
MOQ :
1 set
Price :
USD 2000~7500 set
Supply Ability :
100 sets month
Delivery Time :
20 work days after received balance payment
Packaging Details :
trap and wooden case
Product Name :
Electric Transfer Trolley
Capacity :
1-300T
Dimension :
Customized as Practical Needs
Color :
Customized
Application :
Industrial Filed
Feature :
Easy Operation
Certificates :
CE ISO SGS
Description
30T Heavy Duty High Temperature Iron Transfer Car for Warehouse
Introductions

With the functions of steady traveling, stepless speed regulation, the Molten Steel Ladle Transfer Car is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc. Generally the outer surface temperature of the ladle is 200-300 degree , due to the high temperature, the Molten Steel Ladle Transfer Car should be designed with heat exposure proof device, especially to the battery, motor, reducer and electric appliance.
It can avoid the cart from damaging and shortening using time. During the cart working, it must be steady travel, steady start and slowly stop. In order to avoid the cart broken during working, there equipped two sets driving system, if the main driving system is broken, the spare driving system can be start at the same time.

Application--- Transfer Cart

Assembly line: Due to advantage of without cable outside, the rail guided transfer trolley is mainly applied in assembly line, can realize the straight rail, S shape rail, U shape rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing rail etc.

Shot blasting room: With characteristics of low table height and wireless power, the rail guided transfer trolley can transfer the workpiece to blasting room. The special used transfer trolley is equipped with board to protect the motor, reducer, electric appliance and battery. In order to sand blasting in all directions, our trolley can be equipped with hydraulic device and rotary function.

Lathe transport: With advantages of large load capacity and wireless, the cart is mainly used in lathe producing factory to transfer lathes.

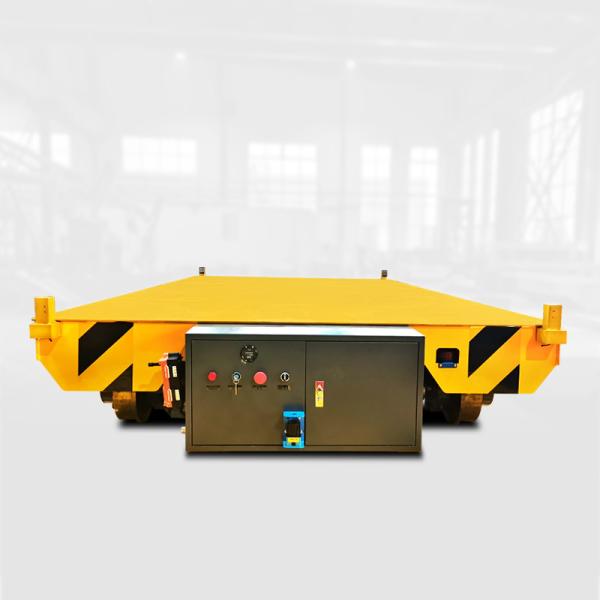

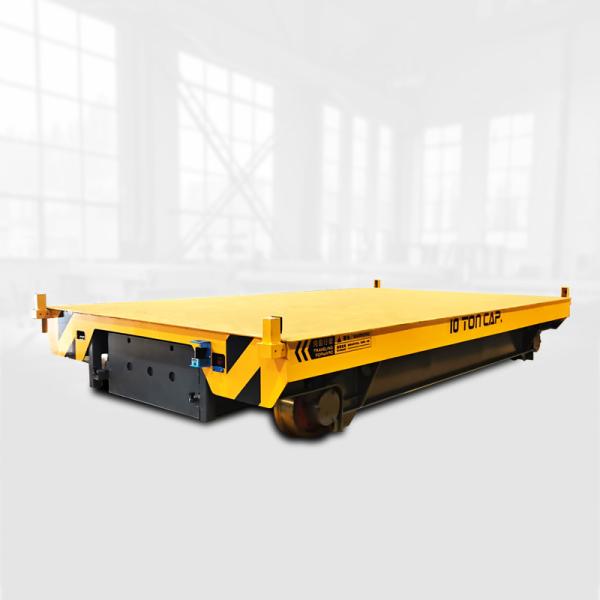

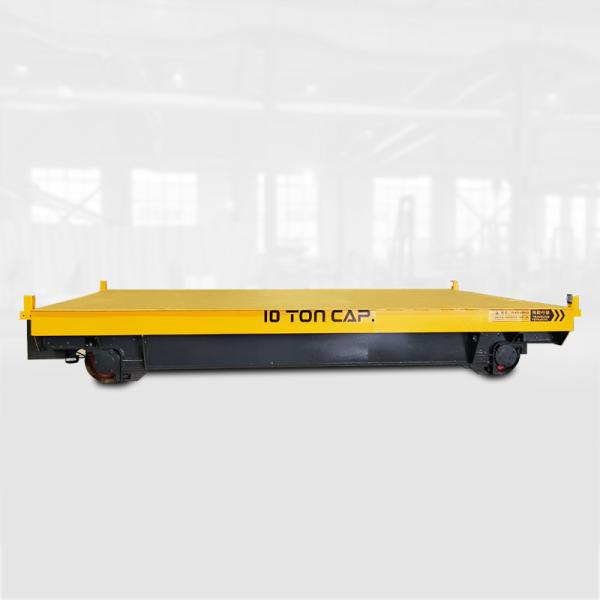

Detailed Image Of Transfer Trolley

30T Heavy Duty High Temperature Iron Transfer Car for Warehouse


Technical Parameters
Model 2t 20t 50t 100t 150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 25 20 20 20 18
Motor Power(kw) 0.8 2.5 5.5 11 15
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.3 5.5 7.6 13.9 26
Recommended Rail Model P15 P24 P43 QU100 QU100

Package of Rail Transfer Cart
For length is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.



Why chose us?

We have got CE, SGS, ISO, CO certificates about our products, and our products have been exported to more than 30 countries and regions.

Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail equipment, BJT cable drum type, BHX safety sliding line type, BXC battery type, BTL towed cable type, BP non-power type, BQY train towed type, BWP trackless type and special type, such as turning cart, trackless cart, ladle car, hydraulic lifting car, ferry car, painting room car, blasting booth car, etc.
