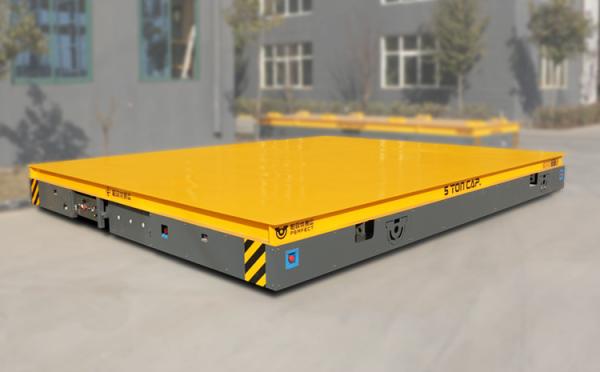

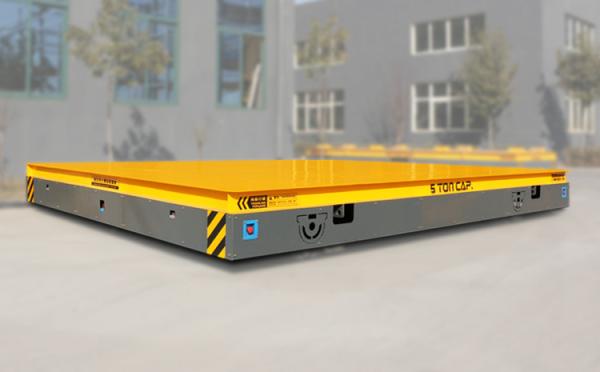

Battery Electric Transfer Cart Trackless Heavy Duty For Adobe Concrete
Battery Electric Transfer Cart Trackless Heavy Duty For Adobe Concrete
Battery Electric Transfer Cart Trackless Heavy Duty For Adobe Concrete
Battery Electric Transfer Cart Trackless Heavy Duty For Adobe Concrete
Battery Electric Transfer Cart Trackless Heavy Duty For Adobe Concrete
Battery Electric Transfer Cart Trackless Heavy Duty For Adobe Concrete
Battery Electric Transfer Cart Trackless Heavy Duty For Adobe Concrete
Battery Electric Transfer Cart Trackless Heavy Duty For Adobe Concrete
Specifications
Brand Name :
Battery Transfer Cart
Model Number :
Battery Transfer Cart
Certification :
CE ISO SGS
Place of Origin :
Henan china
MOQ :
1
Price :
USD2600-5500/SET
Payment Terms :
L/C, T/T
Supply Ability :
30sets/week
Delivery Time :
20 work days after received balance payment
Packaging Details :
Trap and wooden case
Product Name :
Heavy duty trackless Battery Transfer Cart material handling equipment for industry used in warehouses
Type :
Battery Transfer Cart
Ground Requirement :
Cement Floor
Ground Clearance(mm) :
50
Wheels Base(mm) :
1500-1800
Motor Power(Kw) :
3.5-15
Running Speed(m/min) :
0-15
Table Size :
Customized
Battery Capacity(Ah) :
180-600
Battery Voltage(v) :
24-72
Description

Heavy duty trackless BatteryElectric Heavy Duty Adobe Concrete cart

Introduction

BWP series heavy load Transport Carriage is a kind of trackless material handling trolley, which means it can run on cement floor and no need to install rails. The steerable Transport Carriage have at lest two casters, which could realize 360 degree motorized rotation without causing any damage to the floor. It is powered by storage battery, so it can turn freely without any cable strings. This electric trackless transfer trolley is controlled to go forward and backward, turn left and right by pressing the buttons and speed controller. It also can be added with PLC control system for full automation.

Advantages

1. No need to install rails
2. No damage to the floor
3. It can move forward and back, and 360 degree turning.
4. DC drive and heavy loading capacity.
5. Small turning radius, flexible and easy operation.
6. Braking distance is short,and have alarming system.
7. Multiple protection devices for safety
8. Details show the perfect art.
9. Large capacity, strong durability, useful after-sale supports.

Trackless Transfer Flat Car.

Battery Electric Transfer Cart Trackless Heavy Duty For Adobe Concrete

Technical parameter table

Rated Load(T) 5 10 15 20 30 40 50
Ground Clearance(mm) 50 50 50 50 50 50 50
Wheel Base(mm) 1500 1500 1500 1700 1700 1800 1800
Turnning Radius(mm) 2501 3101 3401 3901 4301 4801 5201
Axles Distance(mm) 2500 3100 3400 3900 4300 4800 5200
Motor Power(Kw) 3.5 5 6 7 10 12 15
Running Speed(m/min) 0-15 0-15 0-15 0-15 0-15 0-12 0-12
Cart Weight(t) 4.3 5.3 6.6 7.9 8.8 10 10.5
Impacted Rated Load(t) 7.5 15 22.5 30 45 60 75
Battery Capacity(Ah) 180 160 180 180 250 300 330
Battery Voltage(v) 36 48 48 48 48 48 48
Wheel Quantity 4 4 4 4 44 4 4
Ground Requirement Cement Floor Cement Floor Cement Floor Cement Floor Cement Floor Cement Floor

Cement Floor

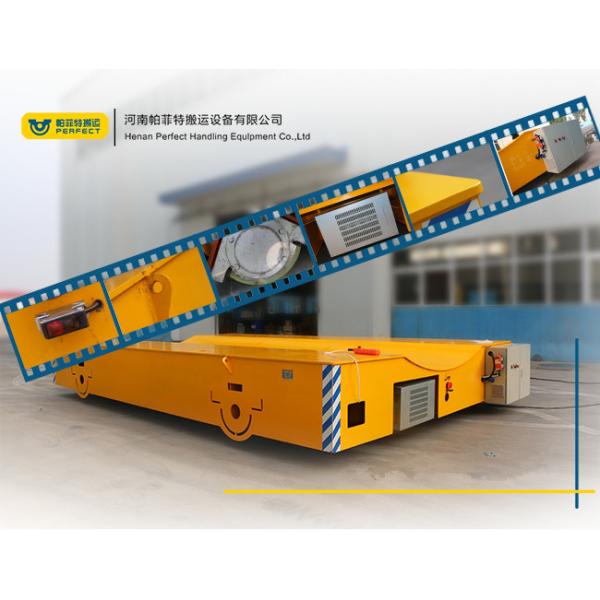

Product shows

We conceives and manufactures a wide range of railway guided transfer carts, electric flat trolley, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!

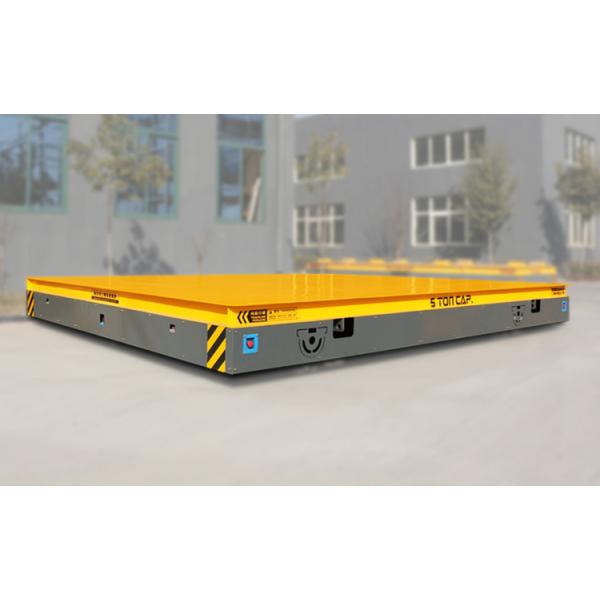

Battery Electric Transfer Cart Trackless Heavy Duty For Adobe Concrete
