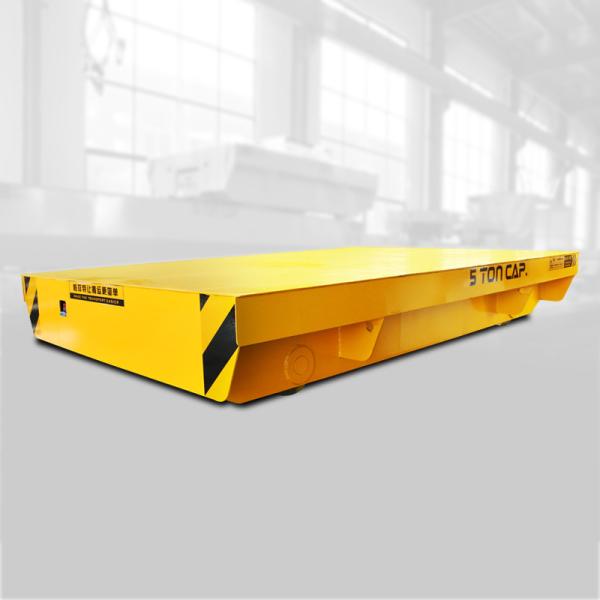

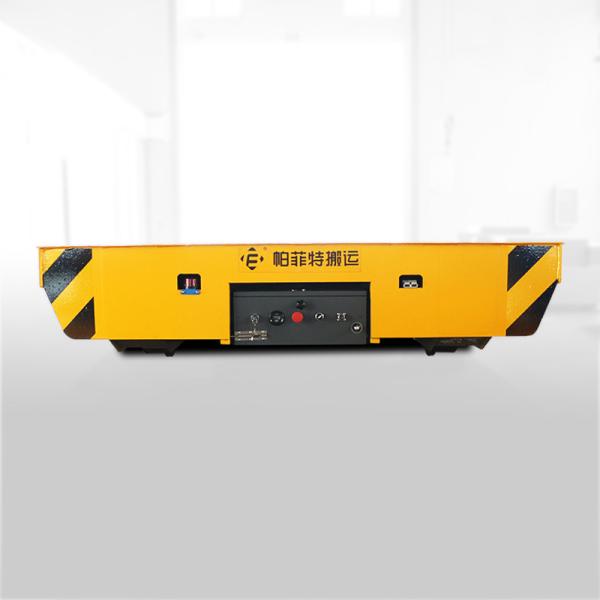

Battery Powered Motorized Rail Transfer Cart For Workshop Transport Cart
Battery Powered Motorized Rail Transfer Cart For Workshop Transport Cart
Battery Powered Motorized Rail Transfer Cart For Workshop Transport Cart
Battery Powered Motorized Rail Transfer Cart For Workshop Transport Cart
Battery Powered Motorized Rail Transfer Cart For Workshop Transport Cart
Battery Powered Motorized Rail Transfer Cart For Workshop Transport Cart
Battery Powered Motorized Rail Transfer Cart For Workshop Transport Cart
Battery Powered Motorized Rail Transfer Cart For Workshop Transport Cart
Specifications
Brand Name :
heavy capacity motorized trackless transfer cart
Model Number :
heavy capacity motorized trackless transfer cart
Certification :
CE ISO SGS
Place of Origin :
Henan, China (Mainland)
MOQ :
1 set
Price :
USD 3000~9000set
Supply Ability :
100sets month
Delivery Time :
20 work days after received balance payment
Packaging Details :
trap and wooden case
Product Name :
heavy capacity motorized trackless transfer cart
After-sales Service Provide :
Engineers available to service machinery overseas
Color :
Customized
Running speed :
20m/min
Table size :
Customized
Description

Battery Powered motorized Rail transfer cart for workshop transport cart


Introduction of cart

Our battery powered coil trolley are used to transport steel coils and pipes for metal industry. This coil transfer Cars are designed to be an extremely cost effective, safe and flexible load moving alternative.
The steel coil rail car is also called a heavy transporter, headless transporter or self-propelled modular transporter. Our coil transfer carts are specially designed for coil, pipe and other round material transportation. When the goods are loaded, we can make sure the car moves safely and the goods are in a very safe condition.


Application

For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

Parameter tables
Model BWP-5t BWP-20t BWP-30t BWP-40t BWP-50t
Rated Load(t) 5 20 30 40 50
Max. Wheel Load (t) 2.8 5.6 7.7 10 12
Ground Requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50 50 50
Table Size (mm) 3000 X 2000 4500 X 2200 5000 X 2200 5500 X 2300 6000 X 2300
Height (mm) 450 600 650 700 700
Wheel Base (mm) 1500 1700 1700 1800 1800
Axles Distance (mm) 2500 3900 4300 4800 5200
Turning Radius (mm) 2501 3901 4301 4801 5201
Turning Structure Mechanical
Motor Power (KW) 3.5 7 10 12 15
Wheel Diameter (mm) 300 (4) 400 (4) 400 (6) 500 (6) 500 (6)
Wheel Material ZG55+hydropurture
Running Speed (m/min) 0-15 0-12
Brake Principle Electric magnetic brake
Operation Method Raido Remote Control
Battery Maintainance Free of maintainance
Charger's Installation Installed on cart Split-type
Cart Color Customized
Charger's Function Automatically cut off the power when the battery is fully charged
Radar Control 3-0.3 m, Automatic stop for obstacles
Warning Equipment Horn and Flash Light
Other Functions Turning light, night light and power display

Advantages

Low noise
It's powered by electric devices, so when you are operating it, you can't feel much noise. It causes low noise level and give workers a good working environment.
Maximum safety
We always try our best to make sure the safety of the operators and the material handled. We do care the safety of everyone involved in the job.
Easy for operation
Our vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best by using our products.
Easy to implement into manufacturing process
Operates on standard floors; Do not require complex or permanent installation
Suitable for All Kinds of Weight
The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
