Specifications
Brand Name :
no powered transfer trailer
Model Number :
no powered transfer trailer
Certification :
CE ISO SGS
Place of Origin :
China(Mainland)
MOQ :
1set
Price :
USD 2000~5000 set
Supply Ability :
100sets month
Delivery Time :
20 work days after received balance payment
Packaging Details :
trap and wooden case
Product Name :
no powered transfer trailer
Usage :
Heavy Duty
Capacity :
Customized
Running speed :
0-20m/min
after-sales Service Provided :
Engineers available to service machinery
Certificates :
CE ISO SGS
Description

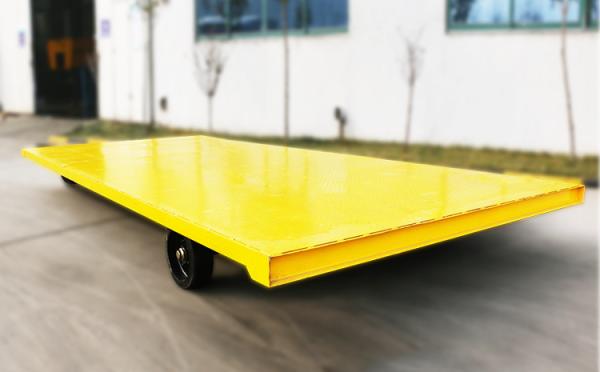

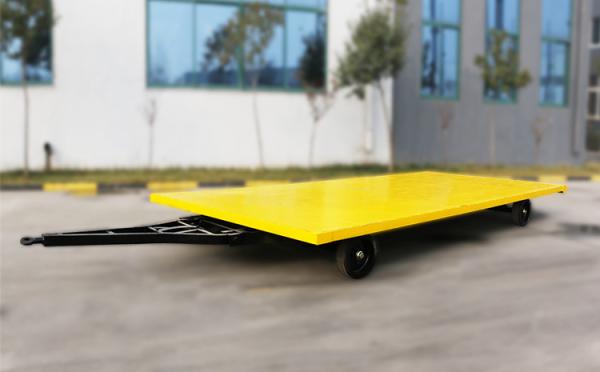

No Powered Cast Steel Plate Industry Use Railroad Trailer Forklift Towing Vehicle

Introductions

The workshop trailers are not powered and are meant to be pulled or towed by another powered transfer cart or a fork lift (of adequate capacity). They are a cost effective alternative to purchasing another powered transfer cart. For on-rail applications, a winch can be used to move carts. Pull type transfer carts are versatile and can be easily customized to suit applications.

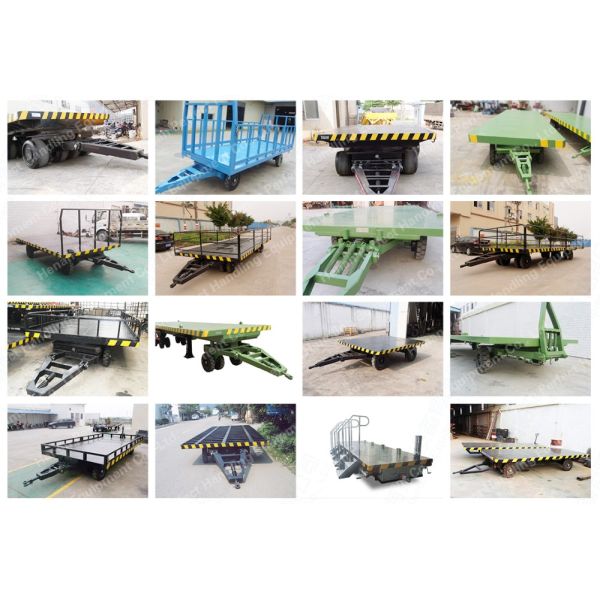

Henan Perfect Material Handling line of Industrial Trailers include vary models and features to meet the needs of all major industries including Automotive, Basic Metals, Heavy Manufacturing, Rigging, Stamping, and more.

Model BWT-2T BWT-5T BWT-10T BWT-15T BWT-20T BWT-30T BWT-45T BWT-60T
Rated Load(T) 2 5 10 15 20 30 45 60
Table Size(mm) 2000*1500 2500*1500 3000*2000 3200*2000 4000*2000 5000*2200 6000*2400 6000*2500
Height of Trailer (mm) 500 600 700 750 750 800 850 950
Wheel Quantity 4 4 8 8 8 12 12 12
Tire Specification 254*102 305*165 559*254 559*356 22*9-10 22*9-10 22*10-16 22*14-16
Tire Material Polyurethane Solid Wheel, Press-on Solid Tire
Frame Material Q235 Q235 Q235 Q235 Q235 Q345 Q345 Q345
Color Customized
Speed(km/h) 0-20 0-20 0-20 0-20 0-15 0-15 0-15 0-10

Design requirement Of steel plate transfer trailer

The load capacity, table size, color of the steel plate transfer trailer all can be customized.

1. The rated load capacity: we will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trailer plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.
