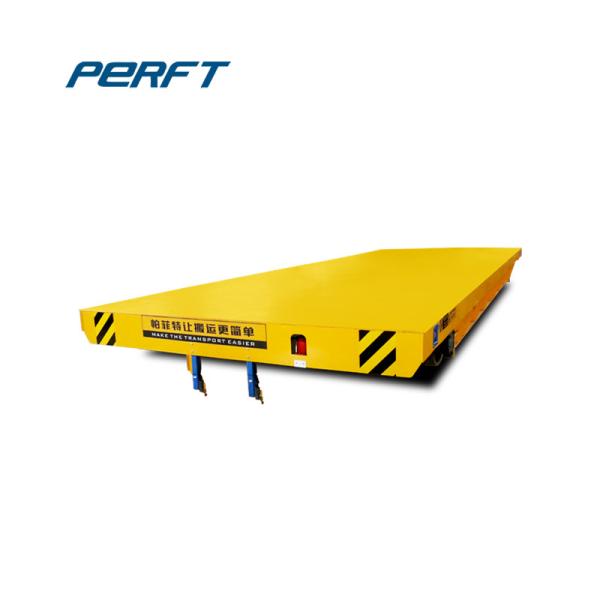

15 Ton Cable Reel Electric Material Transporter Dolly For Special Transportation

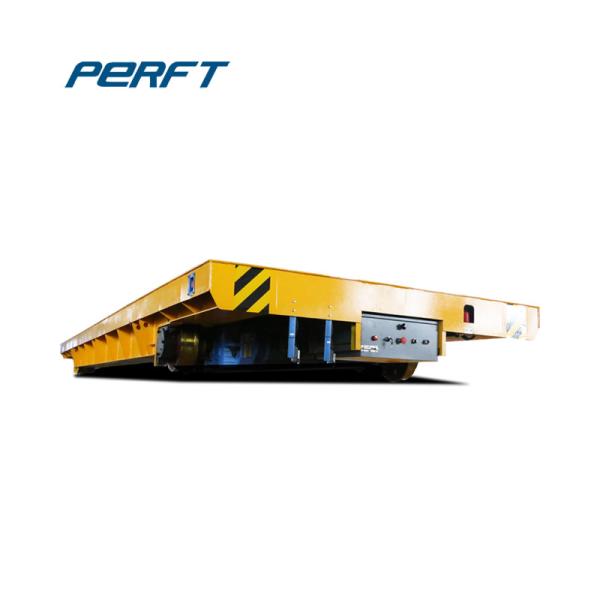

15 Ton Cable Reel Electric Material Transporter Dolly For Special Transportation

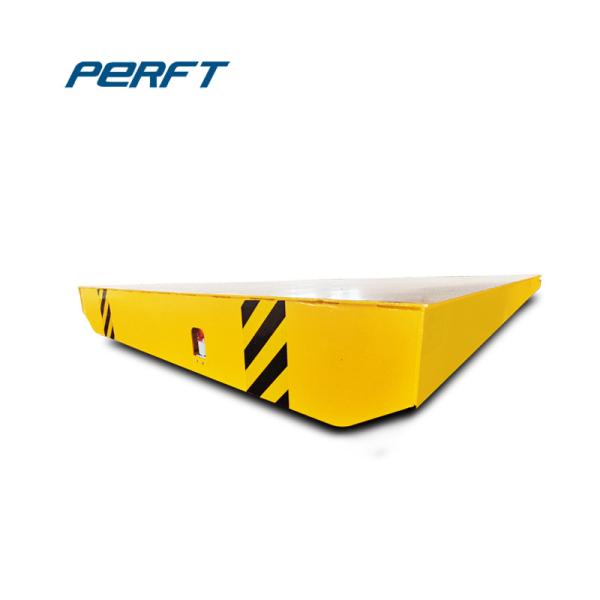

15 Ton Cable Reel Electric Material Transporter Dolly For Special Transportation

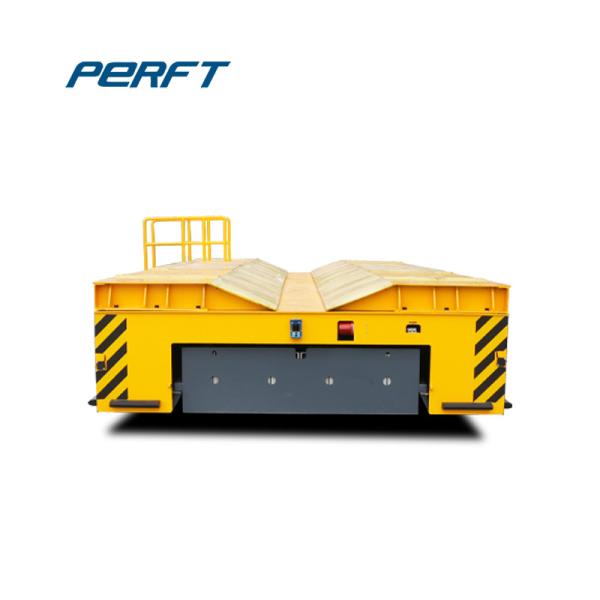

15 Ton Cable Reel Electric Material Transporter Dolly For Special Transportation
15 Ton Cable Reel Electric Material Transporter Dolly For Special Transportation
15 Ton Cable Reel Electric Material Transporter Dolly For Special Transportation
15 Ton Cable Reel Electric Material Transporter Dolly For Special Transportation
15 Ton Cable Reel Electric Material Transporter Dolly For Special Transportation
Specifications
Brand Name :
15t Cable Reel Powered Transfer Cart
Model Number :
15t Cable Reel Powered Transfer Cart
Certification :
CE ISO SGS
Place of Origin :
Henan, China (Mainland)
MOQ :
1 set
Price :
USD 3000~7800 set
Supply Ability :
100 set month
Delivery Time :
20 work days after received balance payment
Packaging Details :
trap and wooden case
Product Name :
15t Cable Reel Powered Transfer Cart
Application :
Industrial Filed
Color :
Customized
Capacity :
Customized
Running speed :
0-20m/min
after-sales Service Provided :
Engineers available to service machinery
Description

15 Ton Cable Reel Electric Material Transporter Dolly for Special Transportation
Description
BTL series electric transporter dolly permit the 380V alternating current get in the electric control system directly and then drive the motor to make it start, stop, move forward and move backward. The cable lies in the middle of the two rails and the working voltage is safe 36V. It can be used in high temperature and explosion proof environment. It's usually used for short distance transportation.

ApplicationApplication

r

We produce a wide range of electric transporter dolly , railway guided transfer carts, factory transport equipment, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many other lines. We are sure to provide the product you want!

Site map for customer useSite map for customer useail Trailer Rail Trail

Detailed Image

15 Ton Cable Reel Electric Material Transporter Dolly For Special Transportation

Components

15 Ton Cable Reel Electric Material Transporter Dolly For Special Transportation

Technical Parameters
Model BTL-2t BTL-20t BTL-50t BTL-100t BTL-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 500 600 700 1000 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Running Distance(m) 25 30 50 50 50
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.5 5.6 7.8 14.1 26.2
Recommended Rail Model P15 P24 P43 QU100 QU100
Functions & Advantages
  • The Rail Trailer isAnti-explosion,Anti-high temperature,power dust;
  • The Rail Trailer iswith lifting holes, convenient to shipment;
  • The Rail Trailer is simple stucture,low cost;
  • The Rail Trailer is load capacity is not limited;
  • The Rail Trailer is safe and convenient operation ;
  • The Rail Trailer is with rail sweeper and cable guide device;
  • The Rail Trailer is high using frequency.

Certificates

15 Ton Cable Reel Electric Material Transporter Dolly For Special Transportation
