Electric Battery Powered Motorized Transfer Trolley With Lifting Table For Coils
Electric Battery Powered Motorized Transfer Trolley With Lifting Table For Coils
Electric Battery Powered Motorized Transfer Trolley With Lifting Table For Coils
Electric Battery Powered Motorized Transfer Trolley With Lifting Table For Coils
Electric Battery Powered Motorized Transfer Trolley With Lifting Table For Coils
Electric Battery Powered Motorized Transfer Trolley With Lifting Table For Coils
Electric Battery Powered Motorized Transfer Trolley With Lifting Table For Coils
Electric Battery Powered Motorized Transfer Trolley With Lifting Table For Coils
Specifications
Brand Name :
electric battery powered trackless utility vehicles
Model Number :
electric battery powered trackless utility vehicles
Certification :
CE ISO SGS
Place of Origin :
China(mainland)
MOQ :
1 set
Price :
USD 2000~7800 set
Supply Ability :
100 sets month
Delivery Time :
20 work days after received balance payment
Packaging Details :
trap and wooden case
Product Name :
electric battery powered trackless utility vehicles
Capacity :
1-300T
Table Size :
Customized
Height :
Customized
Running Speed :
0-50/min(Adjustable)
after-sales Service Provided :
Engineers available to service machinery
Warranty :
12 months
Description
electric battery powered Motorized Transfer Trolley with Lifting Table for Coils
Description of Transport Carts

Our transfer trolley with lifting table is widely used in the processing line of punching, pouring, cold heading, extrusion, powder metallurgy parts pressing, pressure casting, and engineering plastics, rubber, ceramics and other products of the compression molding or injection molding. Our die transport products are operated on rails or travel on cement floor, and include die transfer cart, die transport trolley, die rail cart, trackless carrier, battery operated carriage, electric flat vehicle, industrial trailer, motorized railway bogie, steering platform table etc.

details

The trackless utility vehicles is powered by battery, electric cable and generator. The trackless utility vehicles can spin around 360 degrees. All the cars are equipped with warning alarm, safety inspection device and Dead-man control.The trackless utility vehicles can also be equipped with automatic intelligent charger and PLC control system, so that it can realize full-automatic control.

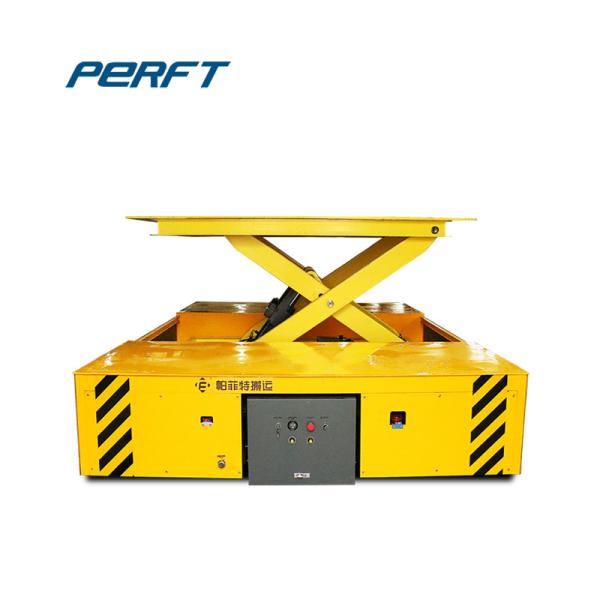

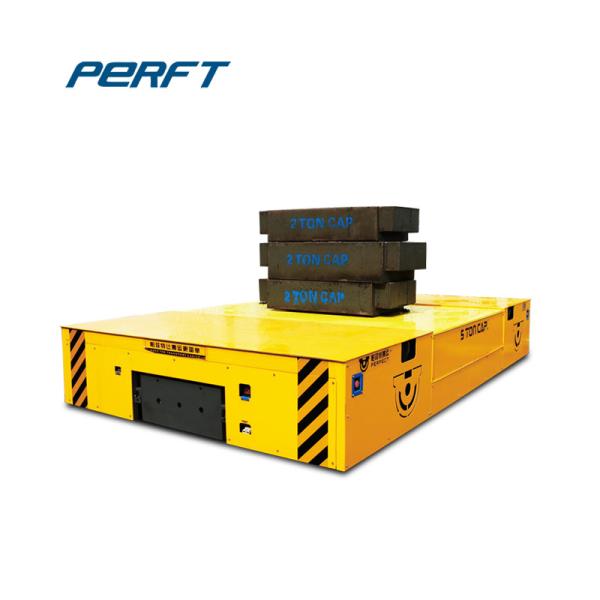

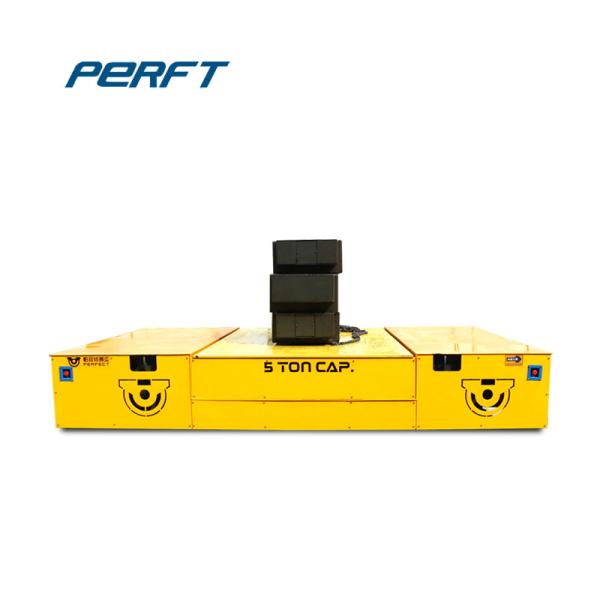

Detailed Image of Transport Carts

Electric Battery Powered Motorized Transfer Trolley With Lifting Table For Coils

Technical Parameters
Model BWP-5t BWP-20t BWP-30t BWP-40t BWP-50t
Rated Load(t) 5 20 30 40 50
Impacted rated load(t) 7.5 30 45 60 75
Structure of Frame Steel plates welded, beam
thickness of the steel plate 8 14 14 16 16
Carts weight(t) 4.3 7.9 8.8 10 10.5
Max. wheel load (t) 2.8 5.6 7.7 10 12
Ground requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50 50 50
Table size (mm) 3000 X 2000 4500 X 2200 5000 X 2200 5500 X 2300 6000 X 2300
Height of the whole Carts (mm) 450 600 650 700 700
Wheel base (mm) 1500 1700 1700 1800 1800
Axles distance (mm) 2500 3900 4300 4800 5200
Turning radius (mm) 2501 3901 4301 4801 5201
Turning type Turning while driving with no stop
Control method for turning Control button
Turning structure Mechanical
Motor power (KW) 3.5 7 10 12 15
Wheel diameter (mm) 300 (4) 400 (4) 400 (6) 500 (6) 500 (6)
Wheel material ZG55+hydropurture
Running speed (m/min) 0-15 0-12
Brake principle Electric magnetic brake
Ground balance Mechanical automatic adjustment
Operation method With wire or no wire
Battery model D-250 24pieces D-440 24pieces D-250 36pieces D-330 36pieces D-440 36pieces
Battery maintainance Free of maintainance
Charger's installation Installed on Carts Split-type
Carts color Yellow and warning sign
Charger's function Automatic stop for obstacles
Radar control 3-0.3 m, Automatic stop for obstacles
Warning equipment Sound and light
Other functions Turning light, night light and power display
Electric Battery Powered Motorized Transfer Trolley With Lifting Table For Coils
